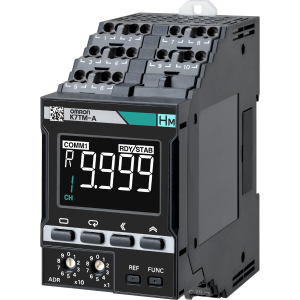

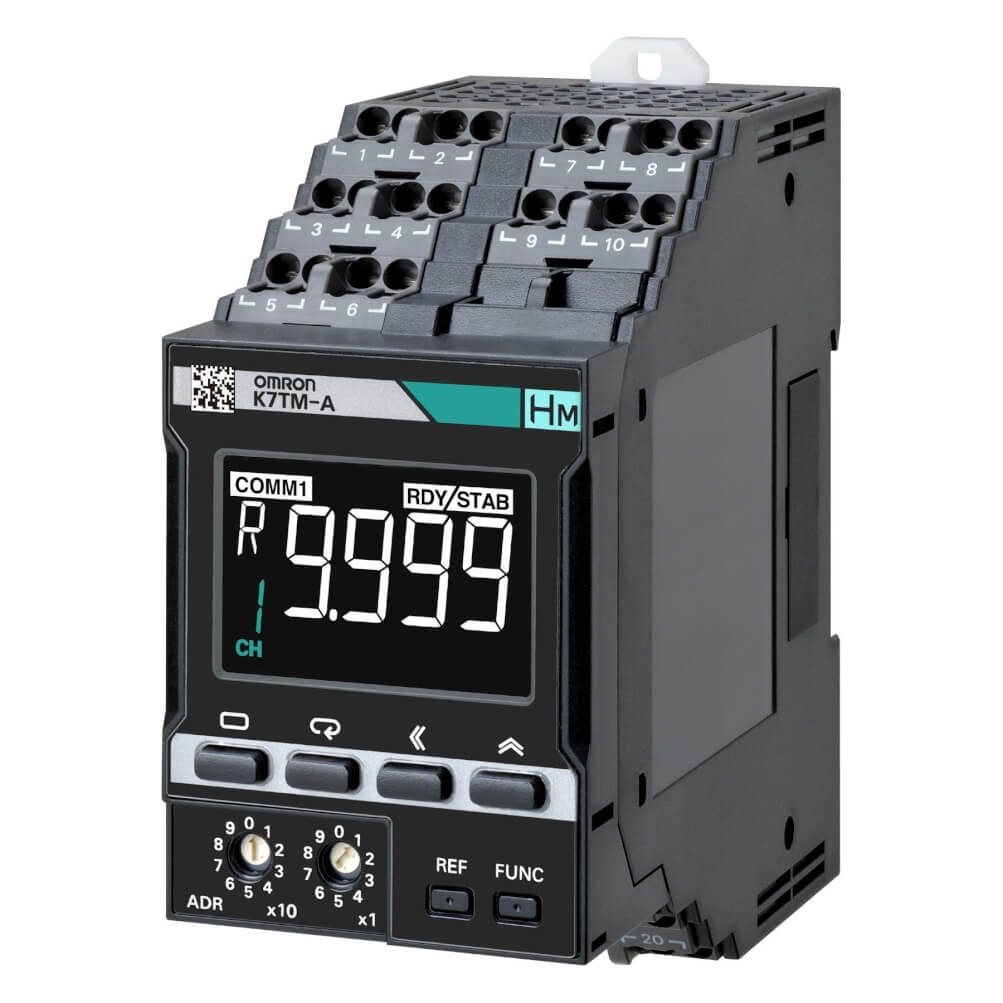

Omron K7TM-A2MA Heater Condition Monitoring Device Guide
The Omron K7TM-A2MA heater condition monitoring device is designed for facilities that need better visibility into resistive heater performance without adding unnecessary complexity to the control panel. In many industrial lines, heater failure starts as a slow decline rather than a sudden event. That is exactly why condition monitoring matters. Instead of waiting for burnout, maintenance teams can review resistance trends and respond before production quality or uptime is affected.
What Makes the Omron K7TM-A2MA Different?
The K7TM-A2MA is built to monitor the resistance values of resistance heating heaters while the heater is live. This is important because heater condition cannot always be judged accurately with a simple voltage and current check. Temperature control methods, heater characteristics, and installation conditions can all distort the picture. The device addresses that issue by evaluating resistance trends in a more practical way for real operating environments.
For sites using a standard AC control architecture, this model is especially relevant because it operates on 100 to 240 V AC, 50/60 Hz. That makes it a practical fit for many existing industrial cabinets where wide-range AC power is already available.
Core Technical Highlights
The Omron K7TM-A2MA supports two-channel voltage input and two-channel CT input, with measurement ranges up to 600 V AC and 600 A AC depending on the selected CT. It also provides RS-485 communication with Modbus RTU, which is useful for centralized condition visibility, remote diagnostics, and integration into broader maintenance workflows. In addition, the unit includes NPN open collector transistor outputs for alarm and error signaling, helping teams connect local alerts to existing control logic.
Why Heater Resistance Trending Matters
Heaters rarely behave the same way over their entire service life. As deterioration progresses, resistance values change gradually. The benefit of the K7TM-A2MA is not just raw measurement. It helps teams compare current heater resistance with reference values collected in the same operating environment. That makes trend analysis more reliable and more useful for maintenance scheduling.
In practical terms, this approach supports predictive maintenance, reduces unexpected heater replacement, and helps protect product consistency in heat-dependent processes such as packaging, sealing, forming, drying, and thermal treatment.
Installation and Integration Considerations
The device mounts on a DIN rail and uses Push-In Plus terminals, which can simplify panel work. Compatible CT options cover primary-side currents from 5 A to 600 A, allowing engineers to choose a CT suited to the actual heater load. It also offers an IP20 protection rating and is designed for industrial operating environments.
For more information about Omron, it is worth reviewing broader automation and monitoring solutions that complement condition-based maintenance strategies.
Applications for the Omron K7TM-A2MA Heater Condition Monitoring Device
This model is a strong fit for industrial processes where heater reliability directly affects throughput, energy efficiency, or product quality. Typical use cases include plastic processing lines, food packaging equipment, sealing stations, industrial ovens, and thermoforming systems. In these environments, a small shift in heater condition can lead to scrap, rework, or avoidable downtime. A dedicated monitoring device helps maintenance teams act on trend data instead of reacting to failure after the fact.
Omron K7TM-A2MA FAQ
What is the Omron K7TM-A2MA used for?
The Omron K7TM-A2MA is used to monitor the condition of resistance heating heaters by measuring and trending heater resistance. Its purpose is to support predictive maintenance and identify deterioration before heater failure causes process disruption.
What power supply does the K7TM-A2MA require?
This model uses a 100 to 240 V AC power supply at 50/60 Hz. That makes it suitable for many industrial control panels that already operate on a standard AC supply.
Does the K7TM-A2MA support industrial communication?
Yes. The device supports RS-485 communication with Modbus RTU. This makes it easier to connect heater condition data to supervisory systems, maintenance dashboards, or remote monitoring infrastructure.
Can the K7TM-A2MA be used with different current transformer ratings?
Yes. Omron provides compatible CT options for a range of primary-side current ratings from 5 A to 600 A. This flexibility allows the monitoring setup to match the electrical characteristics of the heater circuit more accurately.
Why is resistance monitoring useful for heaters?
Resistance changes over time can reveal deterioration that may not be obvious through routine inspection alone. By tracking these changes consistently, maintenance teams gain a better basis for deciding when replacement is actually needed.
Is the K7TM-A2MA only useful for new equipment?
No. One of its practical strengths is that it can also be retrofitted to existing equipment. That makes it useful for facilities that want to improve maintenance visibility without redesigning the entire machine.
