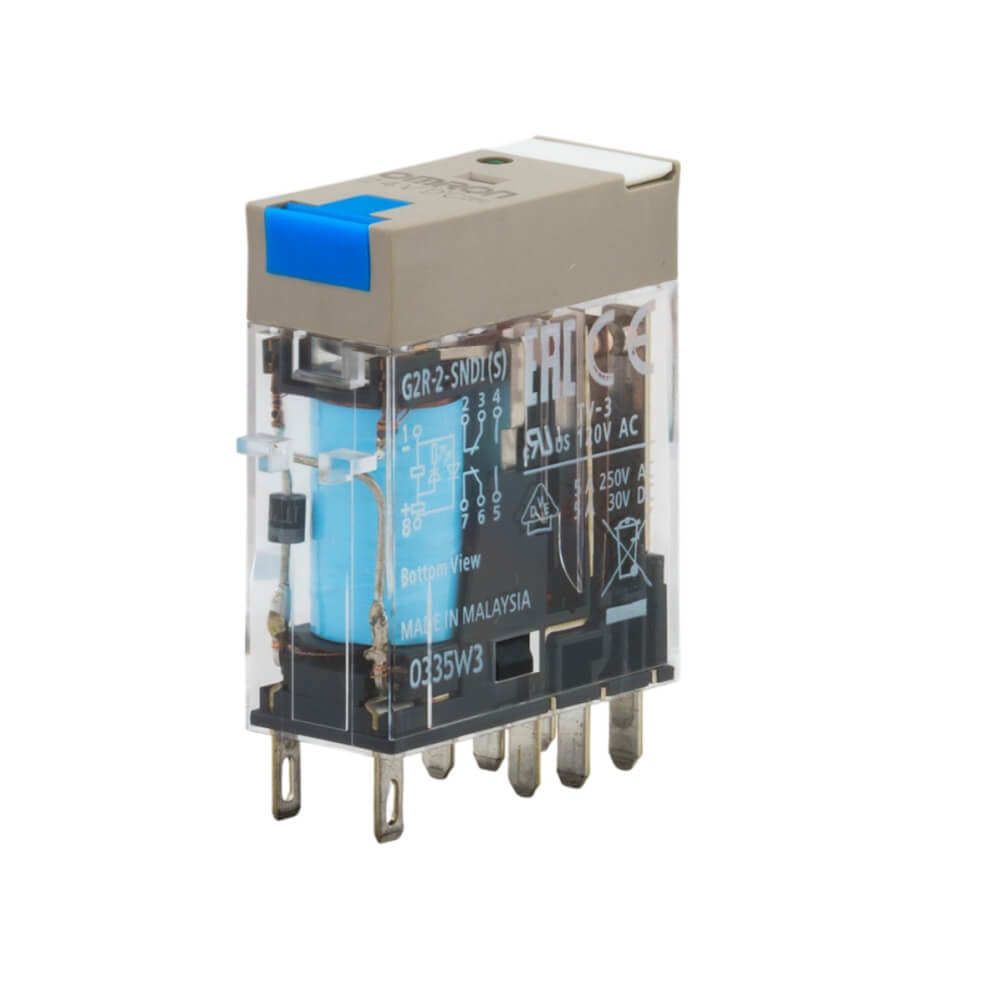

Technical Overview of Omron G2R-2-SNDI 48VDC (S)
The Omron G2R-2-SNDI 48VDC (S) relay socket is a plug-in industrial relay designed for 48 VDC control applications. It is used in automation panels, machine control systems, industrial cabinets and interface circuits where reliable switching and clear operating status are required.
Technical Design
This relay features a DPDT contact configuration, meaning it provides two independent changeover contact sets. This structure allows one relay coil to switch two separate circuits, which is useful in automation and control panel designs where space and wiring efficiency matter.
The 48 VDC coil rating makes this model suitable for systems that operate at higher DC control voltages. The SNDI configuration includes a diode for coil surge suppression. This helps control voltage spikes that may occur when the coil is de-energized, supporting safer operation with electronic control outputs.
Status Indication and Serviceability
The relay includes LED and mechanical indicators. These features help technicians confirm relay status without using additional test equipment. In maintenance-heavy environments, visual feedback is a practical advantage because it can shorten troubleshooting time and improve operational clarity.
Its plug-in design also supports faster replacement. Instead of disconnecting wires, the relay can be removed from its socket and replaced with a compatible unit. This is especially useful in industrial facilities where downtime must be kept under control.
Application Areas
The Omron G2R-2-SNDI 48VDC (S) is often used in DC control panels, auxiliary switching systems, energy control cabinets, automation machinery and signal isolation circuits. For more Omron product references, visit Omron product information.
FAQ
What is Omron G2R-2-SNDI 48VDC (S)?
It is a plug-in DPDT relay with a 48 VDC coil, diode surge suppression and visual status indication.
What is the main benefit of the 48 VDC coil?
The 48 VDC coil allows the relay to be used in control systems designed around higher DC control voltage levels.
Does this relay include surge suppression?
Yes. The built-in diode helps suppress reverse voltage produced by the relay coil in DC circuits.
Why is plug-in mounting useful?
Plug-in mounting allows quick relay replacement without rewiring the socket, improving maintenance efficiency.
Can it switch two circuits?
Yes. Its DPDT contact structure allows two independent changeover circuits to be switched by one coil.
