Technical Overview of Omron G2R-2-SNDI 12VDC (S)

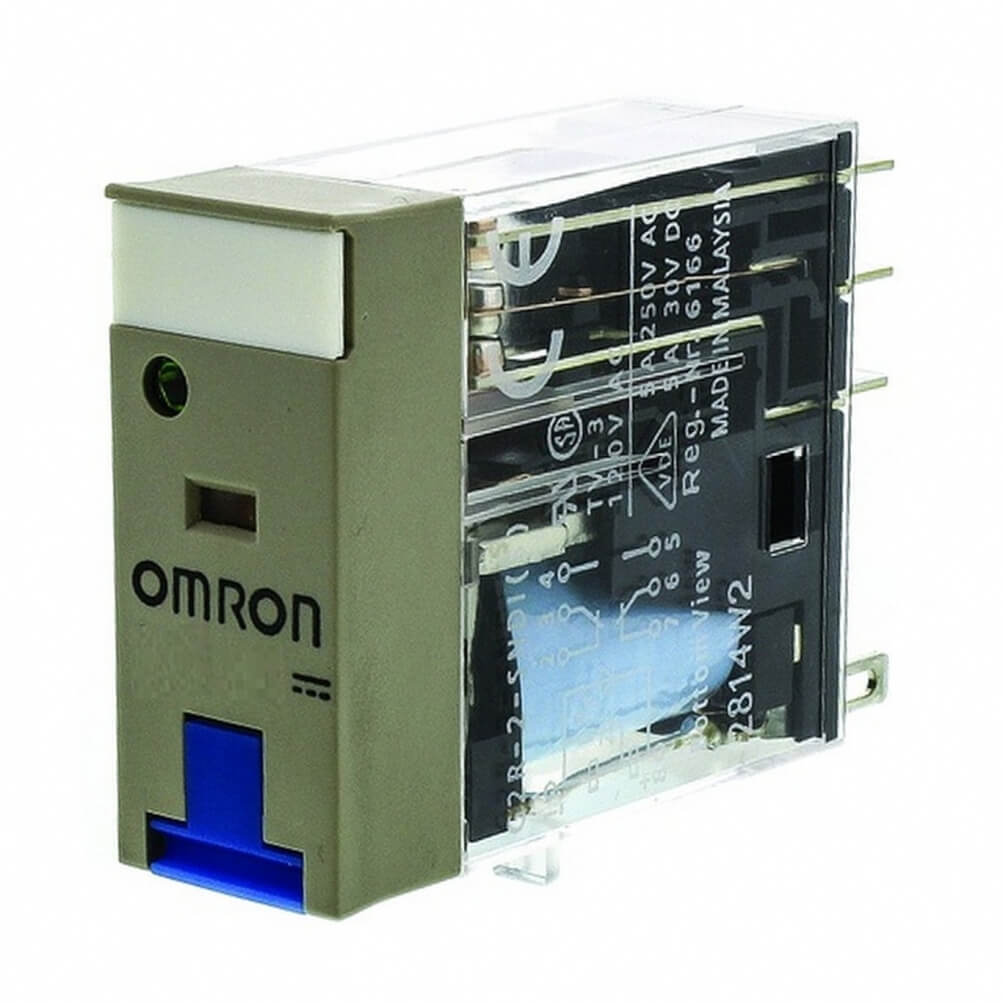

The Omron G2R-2-SNDI 12VDC (S) relay socket is a compact plug-in relay developed for low-voltage DC control circuits. It is often used in automation systems, control panels, signal interface circuits and equipment where dependable relay switching is required in a 12 VDC environment.

Main Technical Characteristics

This relay uses a 12 VDC coil and a DPDT contact arrangement. The DPDT structure gives the relay two independent changeover contacts, allowing one coil to manage two separate circuit paths. This makes the relay useful in control systems where signal separation or multi-circuit switching is needed.

The SNDI version includes a built-in diode for coil surge suppression. This is an important feature in DC control systems because relay coils can generate reverse voltage when de-energized. The diode helps reduce this electrical stress, especially when the relay is connected to electronic outputs such as PLC modules or control boards.

Indication and Testing Benefits

The Omron G2R-2-SNDI 12VDC (S) includes LED and mechanical indicators. The LED shows when the coil is energized, while the mechanical indicator gives an additional visual confirmation of relay state. A test button can also support commissioning and troubleshooting by allowing manual operation during panel checks.

Common Uses

This relay is suitable for 12 VDC automation circuits, compact machinery, signal interface panels, control cabinets, alarm circuits and auxiliary control systems. Its plug-in design helps simplify replacement and reduces downtime during service work. For related Omron product details, visit Omron product information.

FAQ

What is Omron G2R-2-SNDI 12VDC (S)?

It is a plug-in DPDT relay with a 12 VDC coil, LED indication, mechanical indication and built-in diode protection.

Why does this relay include a diode?

The diode helps suppress reverse voltage generated by the DC coil when the relay is switched off. This protects sensitive control electronics.

Can it be used with PLC outputs?

Yes, it can be used in PLC interface circuits when the PLC output and relay coil voltage are compatible.

What does the LED indicator show?

The LED indicator shows whether the relay coil is energized, making troubleshooting faster and easier.

Is it suitable for AC control circuits?

No. This version is designed for 12 VDC operation. AC circuits require a relay with a matching AC coil rating.
