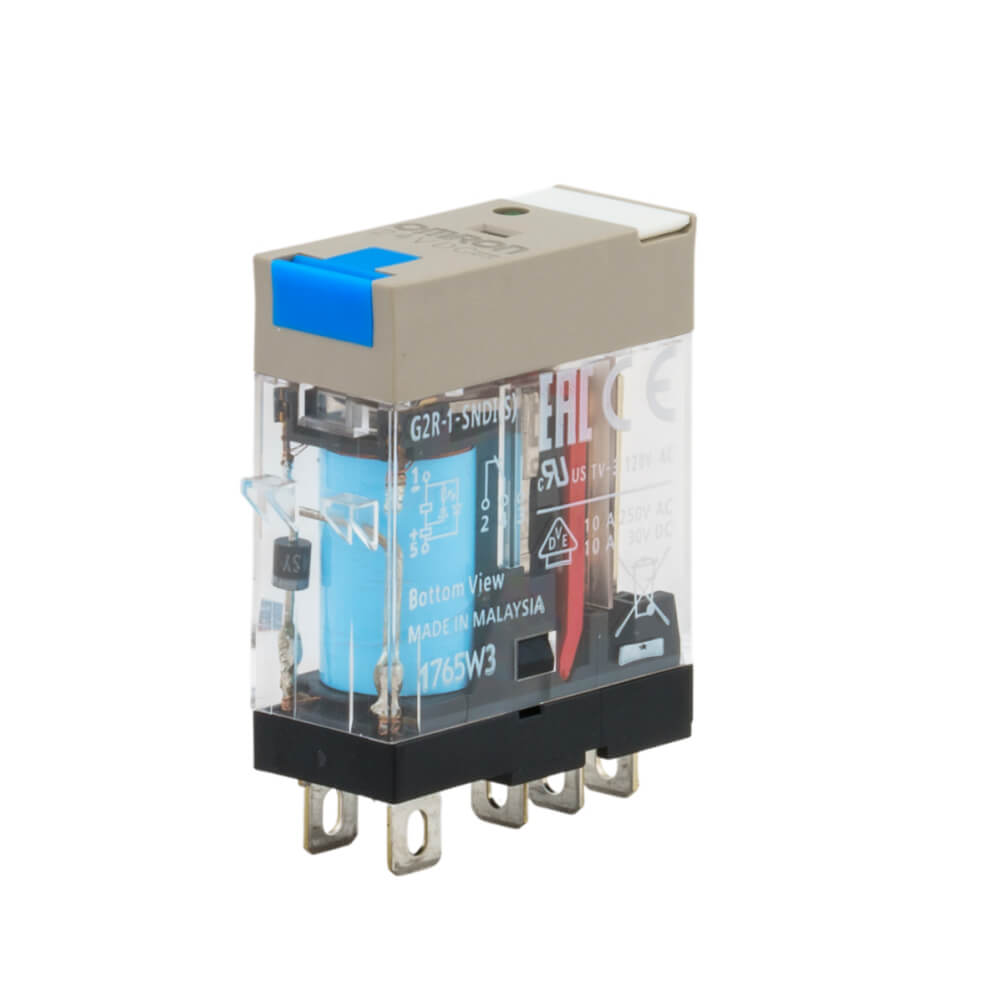

Omron G2R-1-SNDI 12VDC (S) Relay Socket: Technical Guide for Control Panels

The Omron G2R-1-SNDI 12VDC (S) relay socket is a service-friendly plug-in relay designed for 12 VDC control circuits. It combines SPDT switching, LED indication, diode protection, mechanical indication, and a lockable test button. This makes it a practical relay for automation panels, machine controls, PLC interface systems, and diagnostic-heavy maintenance environments.

Technical Specifications and Design

This model operates with a 12 VDC coil and uses a 1-pole SPDT contact configuration. It supports a 10 A rated carry current and uses a 5-pin plug-in design. The built-in diode helps protect DC control outputs from coil-generated voltage spikes, while the LED indicator gives a clear visual signal when the relay is energized.

The SNDI version adds a test button, which allows technicians to manually operate or verify the relay during commissioning and maintenance. The lockable function is useful in controlled testing scenarios, but it should always be used according to safe electrical procedures and panel standards.

Common Use Cases

The Omron G2R-1-SNDI 12VDC (S) relay socket is used in industrial panels, compact automation systems, alarm circuits, machine interfaces, low-voltage control cabinets, battery-supported control systems, and PLC output isolation circuits. Its 12 VDC coil makes it relevant for equipment using low-voltage DC control supplies.

To explore more Omron switching and relay products, visit Omron automation components.

Maintenance Advantages

Maintenance teams benefit from the combination of LED, mechanical indicator, and test button. Instead of relying only on measurement tools, technicians can quickly see relay status and test operation during system checks. This improves service speed, supports organized troubleshooting, and helps reduce panel downtime.

Omron G2R-1-SNDI FAQ

What does the I mean in SNDI?

In this relay family, the I version indicates the presence of a test button feature, which supports manual checking during maintenance or commissioning.

Does the relay include diode protection?

Yes. The SNDI model includes diode protection for DC coil suppression.

Is it suitable for 12 VDC automation systems?

Yes. It is designed for 12 VDC control circuits and is commonly used in low-voltage automation and control panel applications.

What is the benefit of the test button?

The test button allows controlled relay actuation during inspection, wiring verification, and troubleshooting, helping technicians confirm circuit behavior more efficiently.
