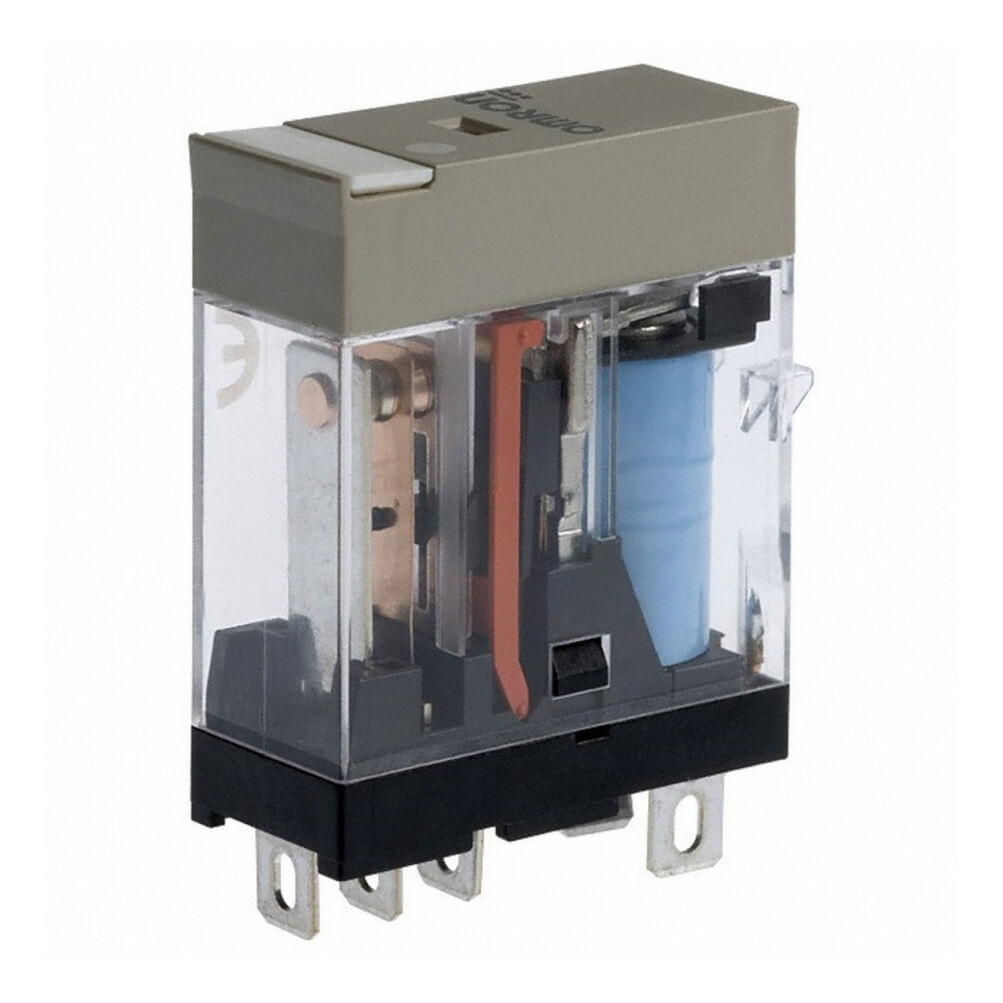

Omron G2R-1-SND-AP3 24VDC (S) Relay Socket: Gold-Plated Contact Relay Explained

The Omron G2R-1-SND-AP3 24VDC (S) relay socket is a plug-in industrial relay designed for 24 VDC control circuits where compact design, clear indication, and stable contact performance are required. It is part of the Omron G2R-S relay range and is especially relevant for control panels, PLC interfaces, automation systems, and signal switching applications.

Technical Overview

This model uses a 24 VDC coil and a 1-pole SPDT contact arrangement. It has a 5-pin plug-in format and a 10 A rated carry current. The SND structure includes diode protection and LED indication, while the AP3 version adds gold-plated contacts. Gold plating is useful in low-level signal circuits because it can improve contact reliability where very small currents or voltages are switched.

The relay also features a transparent case, mechanical operation indicator, and label facility. These details make it practical for professional panel builders who need organized wiring, fast troubleshooting, and long-term maintainability.

Best-Fit Applications

The Omron G2R-1-SND-AP3 24VDC (S) relay socket is suitable for PLC interface panels, sensor signal circuits, industrial machine controls, test benches, monitoring circuits, alarm systems, and automation cabinets using 24 VDC control voltage. Its gold-plated contact design makes it a strong candidate where clean signal transfer matters.

For more details about Omron control and relay solutions, visit Omron relay products.

Why AP3 Contacts Matter

Standard relay contacts work well for many power and control duties, but low-energy signals may need extra contact stability. The AP3 gold-plated contact version helps support more consistent electrical continuity in sensitive interface circuits. This makes the relay useful in automation systems where signal integrity is just as important as mechanical switching reliability.

Omron G2R-1-SND-AP3 FAQ

What is the main difference between SND and SND-AP3?

Both are DC plug-in relays with diode and LED features, but the AP3 version includes gold-plated contacts for improved performance in low-level signal switching.

Is this relay suitable for 24 VDC control panels?

Yes. The 24 VDC coil makes it suitable for modern industrial control panels, PLC cabinets, and automation systems.

Does it include surge suppression?

Yes. The SND version includes diode protection for DC coil circuits.

Why choose gold-plated contacts?

Gold-plated contacts are preferred when switching small signals, low currents, or sensitive control circuits where contact consistency is important.
