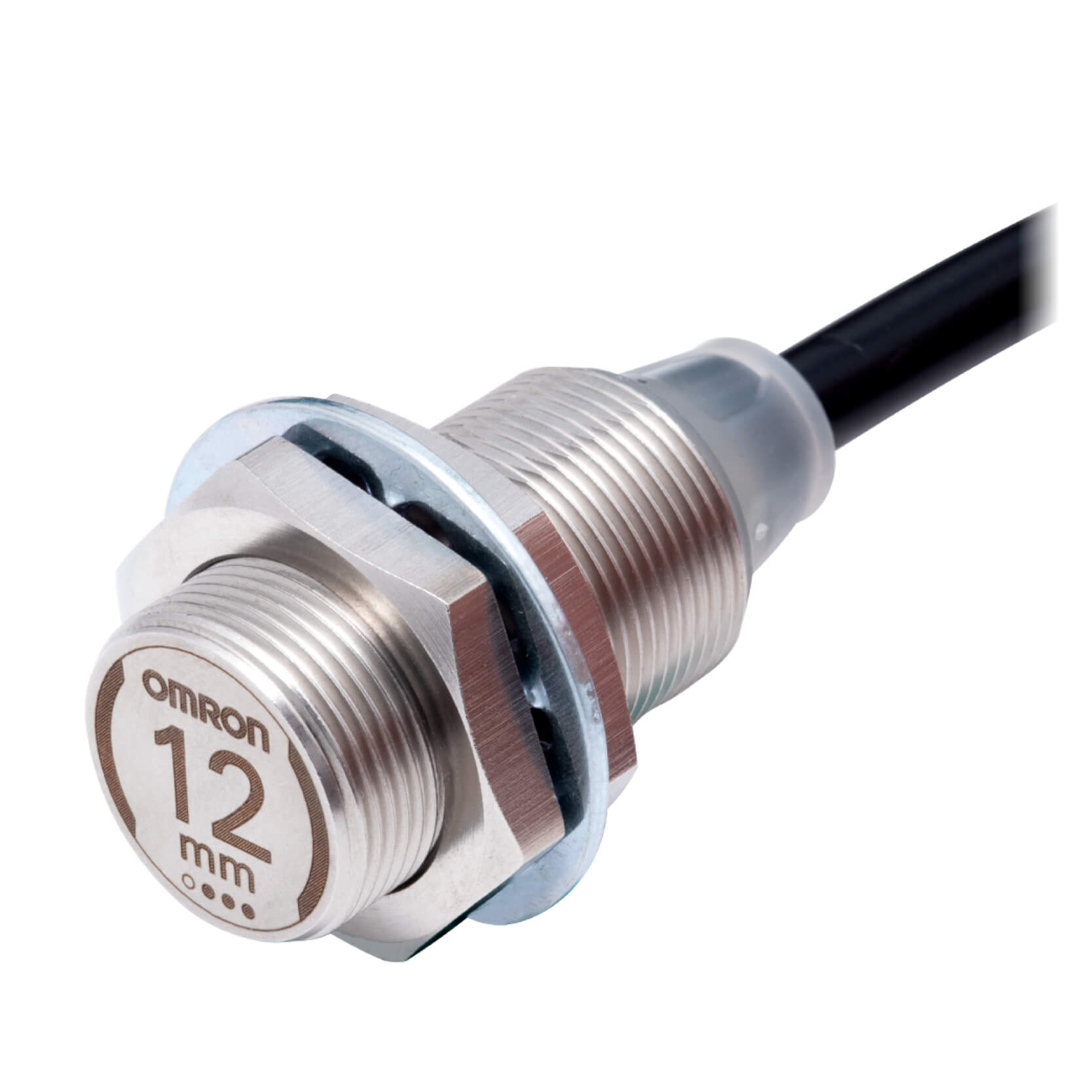

Omron E2EW-QX20B1T30-M1 Inductive Proximity Sensor

Technical Description

The Omron E2EW-QX20B1T30-M1 Inductive Proximity Sensor is developed for industrial automation systems requiring dependable non-contact metal detection under demanding operating conditions. As a member of the E2EW Series, this model combines a long sensing distance with a durable stainless-steel housing and a full-metal sensing surface to support continuous operation in environments exposed to mechanical stress, machining debris, coolant, and welding spatter.

The M30 threaded housing provides secure installation on heavy-duty machinery while the M12 connector enables quick replacement without rewiring the entire machine. This connection method simplifies preventive maintenance and reduces equipment downtime during service operations.

The Omron E2EW-QX20B1T30-M1 Inductive Proximity Sensor offers a rated sensing distance of 20 mm and supports flush mounting for applications where installation space is limited while maintaining reliable switching performance.

Omron E2EW-QX20B1T30-M1 Operating Principle

The sensor generates a high-frequency electromagnetic field around its sensing face. When a conductive metallic object enters the detection zone, eddy currents are induced within the target material. These currents reduce the oscillator energy, allowing the internal electronic circuit to identify the presence of the object.

Once the programmed switching threshold is reached, the PNP output changes state and provides a signal to the connected PLC or industrial controller. Since the sensing process occurs without physical contact, component wear is minimized and long-term repeatability is maintained.

Applications

• Automated manufacturing lines
• Robotic positioning systems
• Machine tool automation
• Industrial conveyors
• Transfer stations
• Assembly equipment
• Metal fabrication machinery
• Packaging automation

Industrial Applications

Robotic Automation

Industrial robots use the sensor to verify fixture positions and confirm metal component presence before automated handling operations begin.

Manufacturing Equipment

Production machinery integrates the sensor to monitor actuator positions, machine travel limits, and tooling alignment throughout repetitive operating cycles.

Material Transport Systems

Conveyor equipment uses the sensor to detect metallic pallets and carriers, allowing production controllers to synchronize transport operations accurately.

Metal Processing

Machining centers employ inductive sensors to verify workpiece positioning before drilling, milling, or cutting sequences are initiated.

Advantages

• 20 mm sensing distance
• Full-metal sensing face for improved durability
• Fluororesin-coated stainless-steel housing
• M12 connector for simplified maintenance
• Reliable PNP output
• Flush mounting capability
• IP67 environmental protection
• Suitable for continuous industrial operation

Industry Examples

Automated storage systems use the sensor to detect metal carriers entering retrieval stations.

Machine builders install the sensor inside positioning assemblies to monitor actuator travel accurately.

Automotive production facilities use the sensor to verify tooling positions before robotic welding cycles begin.

Packaging machinery integrates the sensor for change-part confirmation before production startup.

Selection Considerations

When selecting an inductive proximity sensor, engineers should evaluate sensing distance, connector type, mounting method, environmental protection, electrical interface, and installation dimensions.

The M12 connector simplifies field replacement while maintaining reliable electrical connectivity throughout the equipment lifecycle.

Following the recommended flush mounting guidelines helps preserve the specified sensing characteristics and switching accuracy.

Omron E2EW-QX20B1T30-M1 Additional information about compatible sensing solutions is available within the Omron sensor product series.

Omron E2EW-QX20B1T30-M1 Frequently Asked Questions

1. What sensing distance does this model provide?

The rated sensing distance is 20 mm.

2. Which output type is available?

This model provides a PNP Normally Open DC 3-wire output.

3. What connector does the sensor use?

It is equipped with an M12 connector for quick installation and replacement.

4. Can it be mounted flush?

Yes. The sensor is designed for shielded flush mounting.

5. What materials can it detect?

It detects conductive metallic objects using inductive sensing technology.

6. Which industries commonly use this sensor?

Automotive manufacturing, industrial automation, machine building, logistics, and metal processing facilities commonly use this model.

7. Why is the full-metal sensing face important?

It improves resistance to mechanical wear, welding spatter, and demanding industrial environments.

8. What environmental protection rating does it offer?

The sensor is rated IP67 for protection against dust ingress and temporary water immersion.
