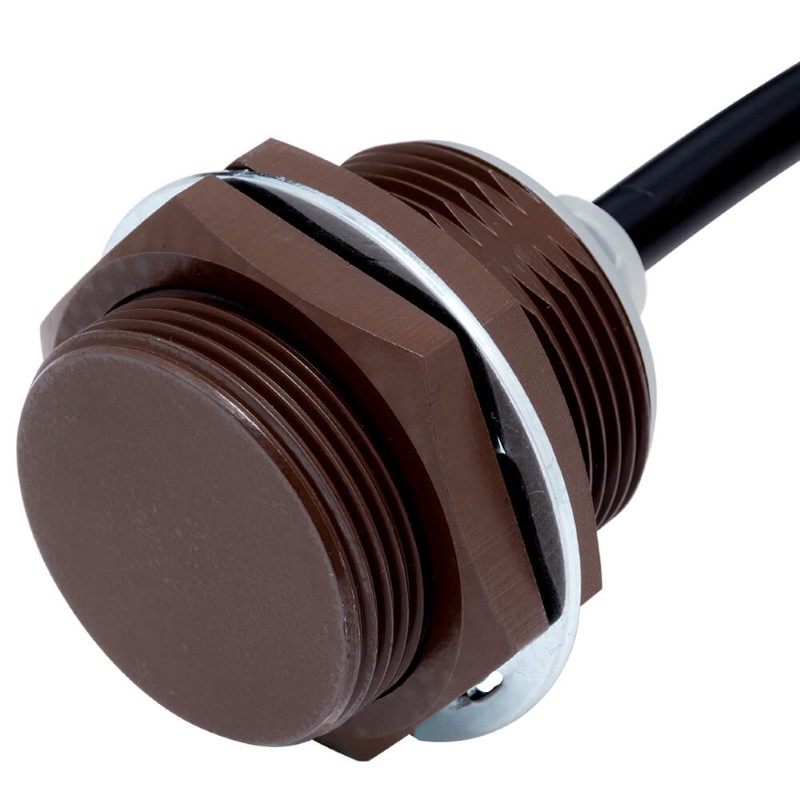

Omron E2EW-QX20B1T30 2M Inductive Proximity Sensor

Technical Description

The Omron E2EW-QX20B1T30 Inductive Proximity Sensor is designed for dependable non-contact detection of metallic objects in industrial environments where mechanical durability and environmental resistance are essential. Its M30 threaded housing supports installation on production equipment requiring an extended sensing distance while maintaining a compact mechanical design.

This model belongs to Omron’s E2EW Series, which incorporates a full-metal sensing face and a fluororesin-coated stainless-steel housing to improve resistance against welding spatter, abrasive particles, oil, and coolant. The 20 mm sensing distance allows detection of metallic targets without physical contact, reducing component wear and improving repeatability.

The Omron E2EW-QX20B1T30 Inductive Proximity Sensor features a fixed 2-meter PVC cable for straightforward integration with industrial control panels, PLC systems, and machine control circuits.

Operating Principle

The sensor generates a high-frequency electromagnetic field through its sensing surface. When a conductive metal object enters the sensing zone, eddy currents develop inside the target. These currents absorb energy from the oscillator circuit, reducing its amplitude.

The internal electronic circuit continuously monitors these changes and switches the PNP output once the preset threshold is reached. Since no mechanical contact occurs during detection, the sensing process remains stable even in applications involving continuous machine cycles.

Applications

• Automated assembly equipment
• Material handling systems
• Industrial conveyors
• Transfer lines
• Machine tool positioning
• Metal processing equipment
• Packaging machinery
• Automated storage systems

Industrial Applications

Automotive Manufacturing

The extended sensing distance supports reliable detection of steel fixtures, pallets, and machine components throughout automated production processes.

Heavy Machinery

Industrial machinery manufacturers integrate M30 inductive sensors into hydraulic equipment, transfer mechanisms, and positioning systems where robust mechanical construction is required.

Material Handling Systems

Conveyor automation uses the sensor to detect metallic carriers and synchronize production flow between different manufacturing stages.

Metal Fabrication

The durable sensing surface withstands challenging production environments where machining debris, coolant, and vibration are frequently encountered.

Omron E2EW-QX20B1T30 Advantages

• 20 mm sensing distance for larger detection range
• Durable full-metal sensing face
• Fluororesin-coated stainless-steel housing
• M30 threaded design for secure installation
• Stable PNP switching output
• IP67 environmental protection
• Suitable for demanding industrial conditions
• Simple wiring using a 2 m integrated cable

Industry Examples

Automated transfer systems use the sensor to confirm pallet arrival before initiating robotic loading sequences.

Industrial presses monitor die positioning through non-contact metal detection during repetitive production cycles.

Packaging equipment verifies metallic tooling before machine startup to reduce process interruptions.

Warehouse automation systems detect steel transport carriers to coordinate movement between conveyor sections.

Selection Considerations

Engineers should evaluate sensing distance, installation space, electrical interface, environmental exposure, housing size, and cable routing before selecting an inductive proximity sensor.

The M30 housing is appropriate for applications requiring increased sensing distance while maintaining flush mounting capability.

Correct installation practices help preserve rated sensing performance and long-term operational stability.

Omron E2EW-QX20B1T30 Additional information about compatible sensing products can be found within the Omron sensor product series.

Omron E2EW-QX20B1T30 Frequently Asked Questions

1. What is the sensing distance of this sensor?

The rated sensing distance is 20 mm.

2. Which output configuration does it provide?

This model features a PNP Normally Open DC 3-wire output.

3. Is it suitable for flush mounting?

Yes. The sensor is designed for shielded flush installation.

4. What connection method is used?

The sensor is supplied with a fixed 2-meter PVC cable.

5. Which materials can be detected?

It detects conductive metallic objects using inductive sensing technology.

6. Where is this sensor commonly installed?

It is widely used in automated production lines, machine tools, conveyor systems, and material handling equipment.

7. Why does the sensor use a full-metal sensing face?

The metal sensing surface improves resistance to mechanical impact, welding spatter, and harsh industrial environments.

8. What protection rating does this model provide?

The enclosure is rated IP67 for protection against dust ingress and temporary water immersion.
