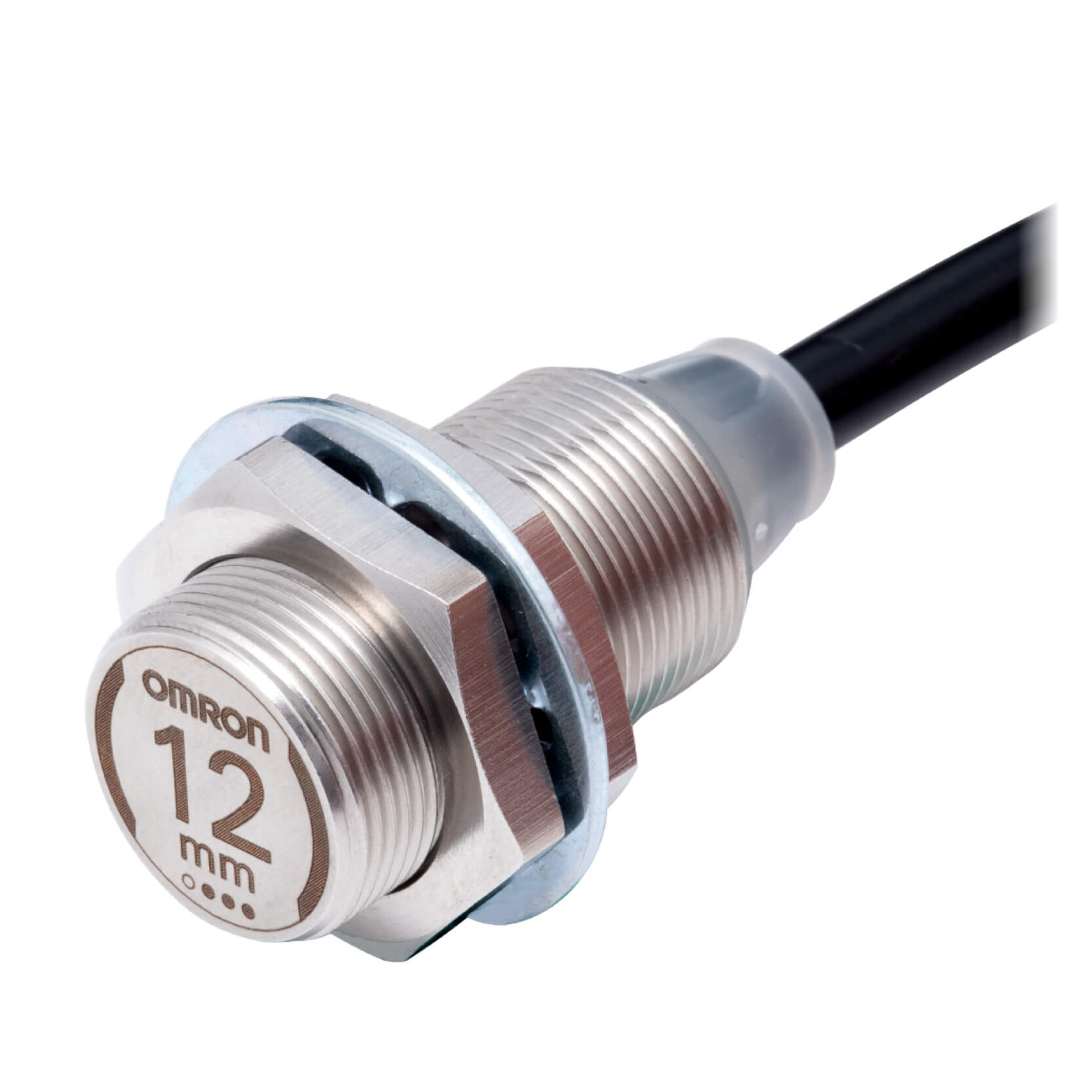

Omron E2EW-QX12B1T18 2M Inductive Proximity Sensor

Technical Description

Industrial automation systems increasingly require sensors capable of providing both reliable object detection and diagnostic information. The Omron E2EW-QX12B1T18 Inductive Proximity Sensor combines extended sensing performance with IO-Link communication, making it suitable for modern production environments where condition monitoring and parameter management are important. According to the manufacturer’s specifications, this model features a quasi-flush M18 housing, a 12 mm sensing distance, PNP normally open output, IO-Link COM3 communication, a fluororesin-coated stainless-steel body, a full-metal sensing face, and a fixed 2 m PVC cable.

The Omron E2EW-QX12B1T18 Inductive Proximity Sensor is designed for production lines where stable metallic object detection must be combined with digital communication for configuration, diagnostics, and process monitoring through IO-Link-enabled controllers.

Working Principle

The sensor continuously generates an electromagnetic field at its sensing face. When a conductive metal target enters the 12 mm sensing zone, eddy currents are induced within the object. These currents modify the oscillator characteristics, allowing the internal electronics to detect the target accurately. Once detection occurs, the PNP normally open output changes state while IO-Link simultaneously provides process data and diagnostic information to the connected master device.

IO-Link communication also enables remote parameterization, identification, and maintenance support without requiring direct access to the sensor.

Technical Features

• 12 mm sensing distance.
• M18 quasi-flush threaded housing.
• IO-Link COM3 communication (230.4 kbps).
• PNP Normally Open output.
• DC three-wire electrical configuration.
• Integrated 2 m PVC cable.
• Stainless-steel housing with fluororesin coating.
• Metal sensing face.
• IP67 environmental protection.

Application Areas

This model is intended for automated manufacturing systems where both reliable sensing and digital communication improve production efficiency. It can be integrated into smart factories, machine automation, robotic workstations, and production monitoring systems.

• Automotive body production
• Robot welding cells
• Machine tool automation
• Material handling systems
• Assembly equipment
• Metal fabrication lines
• Industrial conveyor systems
• Smart manufacturing installations

Omron E2EW-QX12B1T18 Industrial Applications

Automotive manufacturers frequently use IO-Link-enabled sensors for fixture verification while simultaneously collecting diagnostic information through centralized control systems. In robotic welding stations, sensor status can be monitored remotely, reducing troubleshooting time during maintenance activities.

Machine builders can incorporate this sensor into predictive maintenance strategies by accessing process values and identification data through IO-Link. Material handling systems benefit from the extended sensing distance when detecting steel carriers, pallets, or fixtures without physical contact. The fluororesin-coated housing also helps reduce the accumulation of welding spatter in harsh production environments.

Advantages

• Extended 12 mm sensing distance.
• Integrated IO-Link COM3 communication.
• Remote diagnostics and parameter configuration.
• PNP normally open output.
• Fluororesin-coated stainless-steel housing.
• Metal sensing face for improved durability.
• IP67 protection for demanding industrial environments.
• Suitable for Industry 4.0 automation architectures.

Omron E2EW-QX12B1T18 Selection Considerations

When selecting this model, engineers should verify IO-Link master compatibility, available communication infrastructure, controller support, mounting conditions, required sensing distance, environmental exposure, and cable routing. Quasi-flush installation requirements should also be considered to achieve the specified sensing performance.

Additional information about compatible sensing technologies is available within the Omron sensor product series.

Frequently Asked Questions

1. What is the rated sensing distance?

The sensor provides a 12 mm rated sensing distance.

2. Does this model support IO-Link?

Yes. It supports IO-Link COM3 communication at 230.4 kbps.

3. Which output type is available?

The sensor provides a PNP Normally Open switching output together with IO-Link communication.

4. What mounting method should be used?

This model is designed for quasi-flush mounting according to the manufacturer’s installation guidelines.

5. What protection rating does it provide?

The enclosure complies with the IP67 protection standard.

6. Why is IO-Link beneficial?

IO-Link enables parameter configuration, device identification, diagnostics, and process data exchange through a standard point-to-point communication interface.

7. Which industries commonly use this sensor?

Automotive manufacturing, robotics, machine building, material handling, metal processing, and digital factory automation are common application areas.

8. Where is the Omron E2EW-QX12B1T18 Inductive Proximity Sensor typically installed?

The Omron E2EW-QX12B1T18 Inductive Proximity Sensor is commonly installed in automated production equipment, robotic welding systems, intelligent conveyor lines, machine tools, and IO-Link-enabled manufacturing systems where reliable metal detection and diagnostic communication are required.
