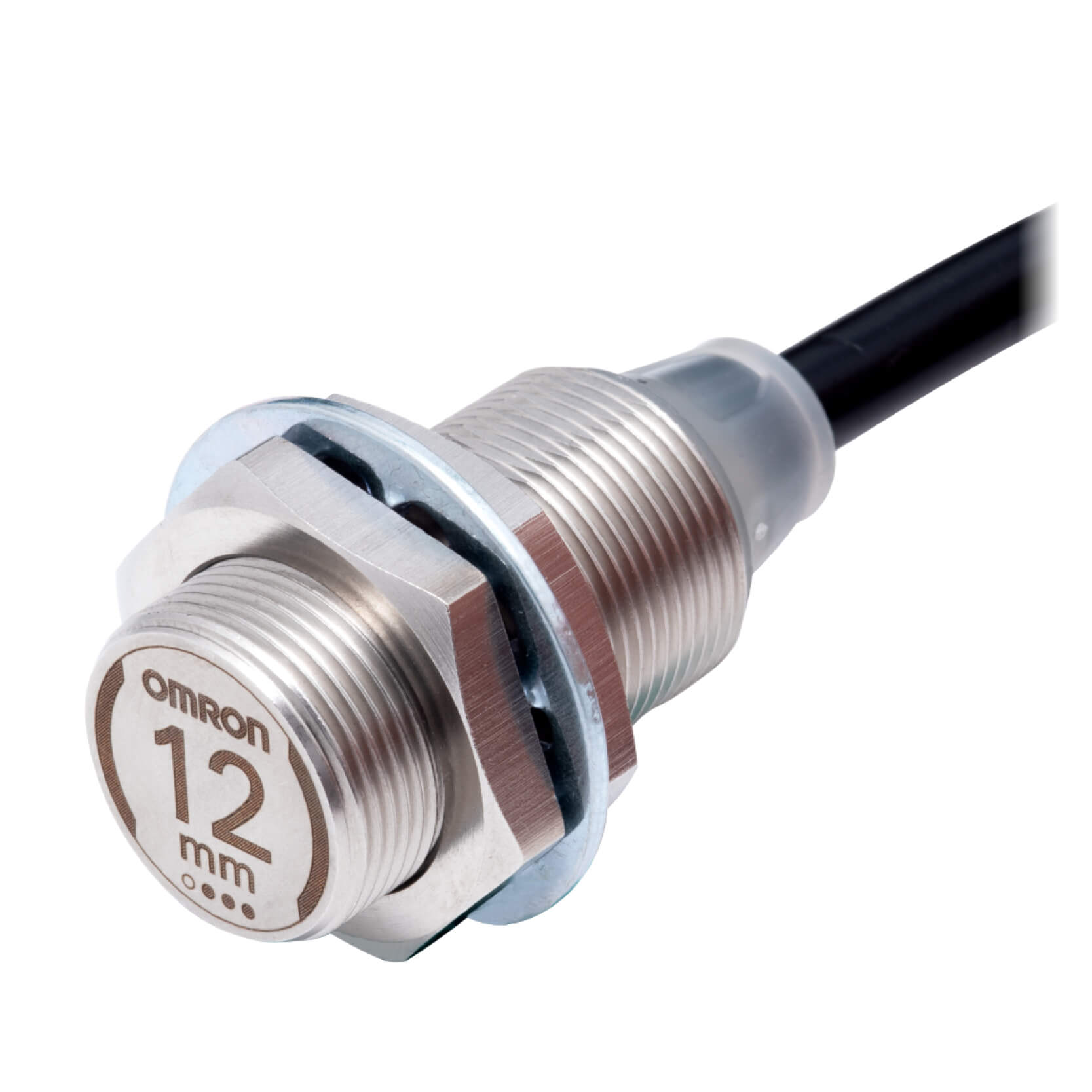

Omron E2EW-QX10B218 2M Inductive Proximity Sensor

Technical Description

The Omron E2EW-QX10B218 2M Inductive Proximity Sensor is designed for industrial metal detection applications requiring stable operation in challenging manufacturing environments. This sensor belongs to the E2EW series, which is engineered to support reliable detection performance in processes involving welding operations, metal fabrication, and automated machinery.

The sensor features an M18 threaded stainless-steel housing, a 10 mm sensing distance, and an NPN normally open output configuration. Its integrated 2-meter cable supports flexible installation across a wide range of industrial automation systems.

The Omron E2EW-QX10B218 2M Inductive Proximity Sensor combines non-contact detection technology with durable mechanical construction to support long-term industrial operation.

Working Principle

The sensor creates an electromagnetic field in front of the sensing face. When a conductive metallic object enters this field, eddy currents are generated within the target. These currents alter the internal oscillation circuit and allow the sensor electronics to detect the object’s presence.

Once the target reaches the sensing range, the NPN output changes state and transmits a signal to the connected control system. This process occurs without physical contact, reducing wear and extending operational life.

The Omron E2EW-QX10B218 2M Inductive Proximity Sensor is particularly suitable for applications involving repetitive detection cycles and continuous production processes.

Application Areas

• Automotive manufacturing systems
• Robotic production cells
• Industrial welding equipment
• Machine tool automation
• Metal fabrication machinery
• Material handling systems
• Conveyor monitoring applications
• Assembly automation equipment

Industrial Applications

Automotive Component Production

Automotive suppliers utilize inductive sensors to verify the presence and positioning of metal components before automated assembly operations begin.

Welding Automation

Welding cells require sensors capable of operating reliably despite contamination from metal particles and process debris.

Machine Tool Systems

Machining centers use proximity sensors to monitor fixture status, workpiece positioning, and mechanical movement.

Industrial Logistics

Automated transport systems employ sensors to identify metallic carriers and monitor movement between production stages.

Advantages

• 10 mm sensing distance
• NPN normally open output
• 2-meter cable connection
• Compact M18 threaded housing
• IP67 protection rating
• Fluororesin-coated sensing surface
• Stainless-steel construction
• Non-contact sensing technology

Sector-Specific Usage Examples

In automated metal fabrication facilities, the sensor can detect fixture engagement before machining begins. In conveyor-based production systems, it may monitor the movement of metallic carriers between process stations.

The Omron E2EW-QX10B218 2M Inductive Proximity Sensor can also be integrated into robotic handling equipment where reliable position verification contributes to process consistency and operational safety.

Considerations When Selecting a Sensor

• Output type requirements
• Sensing distance requirements
• Target material properties
• Installation limitations
• Environmental exposure conditions
• Cable length requirements
• Protection class requirements
• Control system compatibility

Additional sensing technologies are available through Omron sensor products for industrial automation projects requiring specialized detection solutions.

The Omron E2EW-QX10B218 2M Inductive Proximity Sensor supports reliable metal detection across a broad range of industrial automation and manufacturing applications.

Frequently Asked Questions

1. What sensing distance does the sensor provide?

The nominal sensing distance is 10 mm.

2. What output type is available?

The sensor uses an NPN normally open output.

3. What cable length is included?

The sensor is supplied with a 2-meter cable.

4. Is the sensor suitable for industrial welding environments?

Yes. The E2EW family is designed for demanding manufacturing conditions including welding-related applications.

5. What voltage range does the sensor support?

The operating voltage range is 10 to 30 VDC.

6. Does the sensor detect objects through contact?

No. Detection is performed through electromagnetic induction.

7. What protection rating does the sensor provide?

The device is rated IP67.

8. Which industries commonly use this sensor?

Automotive manufacturing, machine building, robotics, metal processing, logistics automation, and assembly equipment industries commonly use this model.
