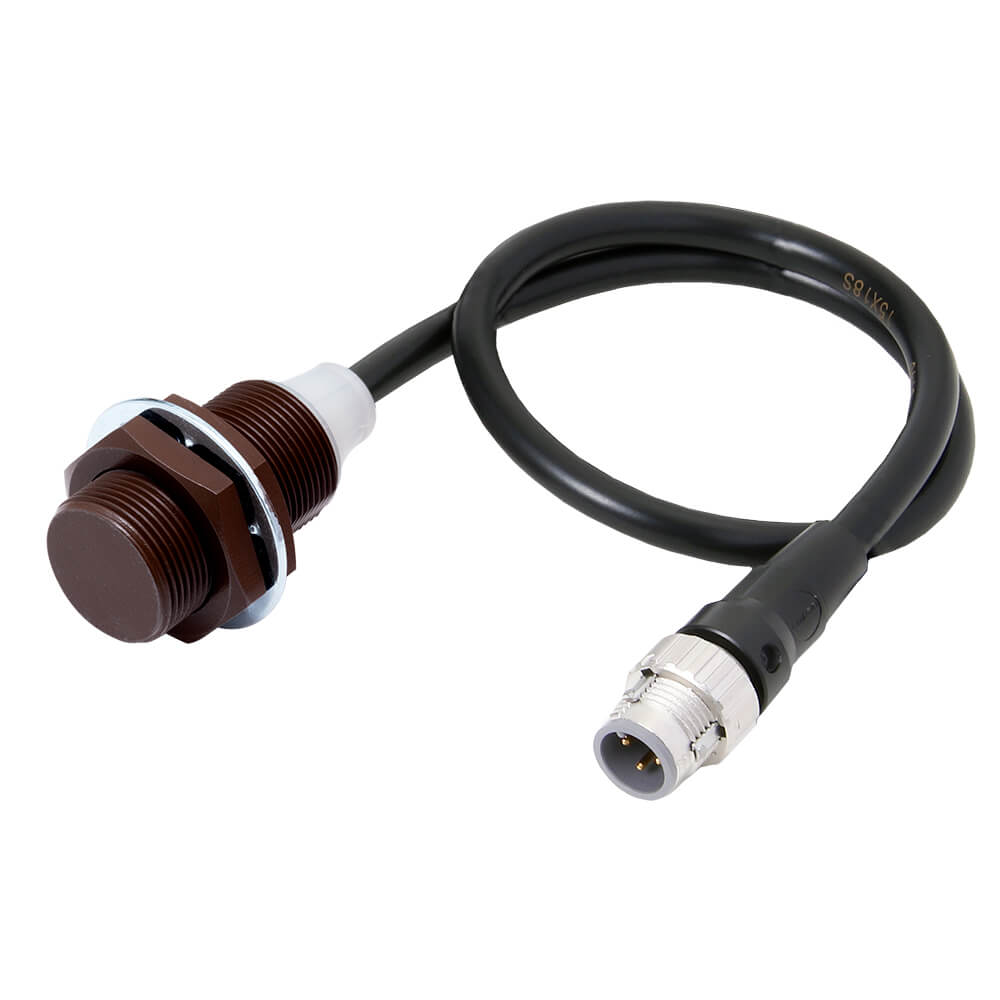

Omron E2EW-QX10B1T18-M1TJ 0.3M Inductive Proximity Sensor
| Specification | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2EW |
| Housing Size | M18 |
| Mounting Type | Flush Mounted |
| Sensing Distance | 10 mm |
| Output Type | PNP Normally Open (NO) |
| Wiring Method | 3-Wire DC |
| Supply Voltage | 10 to 30 VDC |
| Connection Type | M12 Smartclick Connector |
| Cable Length | 0.3 m |
| Housing Material | Stainless Steel |
| Surface Protection | Fluororesin Coating |
| Protection Rating | IP67 |
| Response Frequency | 100 Hz |
| Operating Temperature | 0°C to 85°C |
Technical Description
The Omron E2EW-QX10B1T18-M1TJ 0.3M Inductive Proximity Sensor is developed for industrial environments where dependable metal detection is required under demanding operating conditions. As a member of the E2EW sensor family, this model incorporates a stainless-steel body and a fluororesin-coated sensing surface designed to improve resistance against welding spatter and process contamination.
Its M18 threaded housing supports installation in compact machinery while maintaining a 10 mm sensing distance. The integrated Smartclick M12 connector with a 0.3-meter pigtail cable simplifies installation and maintenance procedures in automated production systems.
The Omron E2EW-QX10B1T18-M1TJ 0.3M Inductive Proximity Sensor is suitable for applications requiring stable metal detection without physical contact between the sensor and target.
Working Principle
The sensor operates by generating an alternating electromagnetic field at its sensing surface. When a metallic object enters the detection zone, eddy currents are induced within the target material. These currents alter the characteristics of the internal oscillator circuit.
The sensor electronics continuously evaluate these changes and switch the output once the target reaches the specified sensing distance. Because the detection process does not rely on physical contact, the sensor can perform reliably in applications involving repetitive movements and continuous operation.
The Omron E2EW-QX10B1T18-M1TJ 0.3M Inductive Proximity Sensor provides stable sensing performance across a wide range of industrial automation tasks.
Application Areas
- Robotic welding systems
- Automotive assembly equipment
- Industrial transfer lines
- Machine tool automation
- Metal fabrication systems
- Automated production cells
- Conveyor monitoring applications
- Industrial material handling equipment
Industrial Applications
Automated Welding Operations
Welding systems often require sensors that can withstand exposure to spatter and metal particles. The E2EW series is designed to address these challenges while maintaining reliable sensing performance.
Industrial Robotics
Robotic equipment uses proximity sensors for workpiece positioning, fixture verification, and process sequencing throughout automated manufacturing operations.
Machine Building
OEM machine manufacturers integrate inductive sensors into automated systems to monitor moving components, positioning mechanisms, and metallic tooling.
Assembly Automation
Production lines utilize metal detection sensors to verify part presence before assembly, inspection, or packaging operations begin.
Advantages
- 10 mm sensing distance
- Compact M18 housing
- PNP normally open output configuration
- M12 Smartclick connector design
- 0.3-meter integrated cable
- IP67 protection rating
- Fluororesin-coated sensing face
- Non-contact metal detection technology
Sector-Specific Usage Examples
Automotive manufacturers may use the sensor to verify component positioning before robotic joining processes. In metal fabrication facilities, it can detect fixture engagement prior to machining operations.
Manufacturers of industrial machinery frequently incorporate the Omron E2EW-QX10B1T18-M1TJ 0.3M Inductive Proximity Sensor into automated equipment where accurate metal detection contributes to process consistency and operational reliability.
Material handling systems can also employ the sensor for carrier identification and position monitoring throughout automated transport sequences.
Considerations When Selecting a Sensor
- Sensing distance requirements
- Target material characteristics
- Available installation space
- Environmental exposure conditions
- Output compatibility requirements
- Connection preferences
- Maintenance accessibility
- Ingress protection requirements
For broader automation projects, engineers can review Omron sensor solutions covering additional sensing technologies and industrial applications.
The Omron E2EW-QX10B1T18-M1TJ 0.3M Inductive Proximity Sensor offers a combination of durable construction, compact installation, and reliable metal detection performance for modern manufacturing environments.
Frequently Asked Questions
1. What is the sensing distance of the sensor?
The nominal sensing distance is 10 mm.
2. What output type does the sensor provide?
The sensor uses a PNP normally open output configuration.
3. Which connector type is included?
The model utilizes an M12 Smartclick connector with a 0.3-meter pigtail cable.
4. Is the sensor suitable for welding-related applications?
Yes. The E2EW family is developed for environments where welding contamination may be present.
5. What operating voltage range is supported?
The sensor operates from 10 to 30 VDC.
6. Does the sensor require physical contact with the target?
No. Detection is performed through electromagnetic induction.
7. What environmental protection rating does it provide?
The sensor is rated IP67.
8. Which industries commonly use this model?
Automotive manufacturing, robotics, metal fabrication, machine building, logistics automation, and industrial assembly sectors commonly use this sensor.
