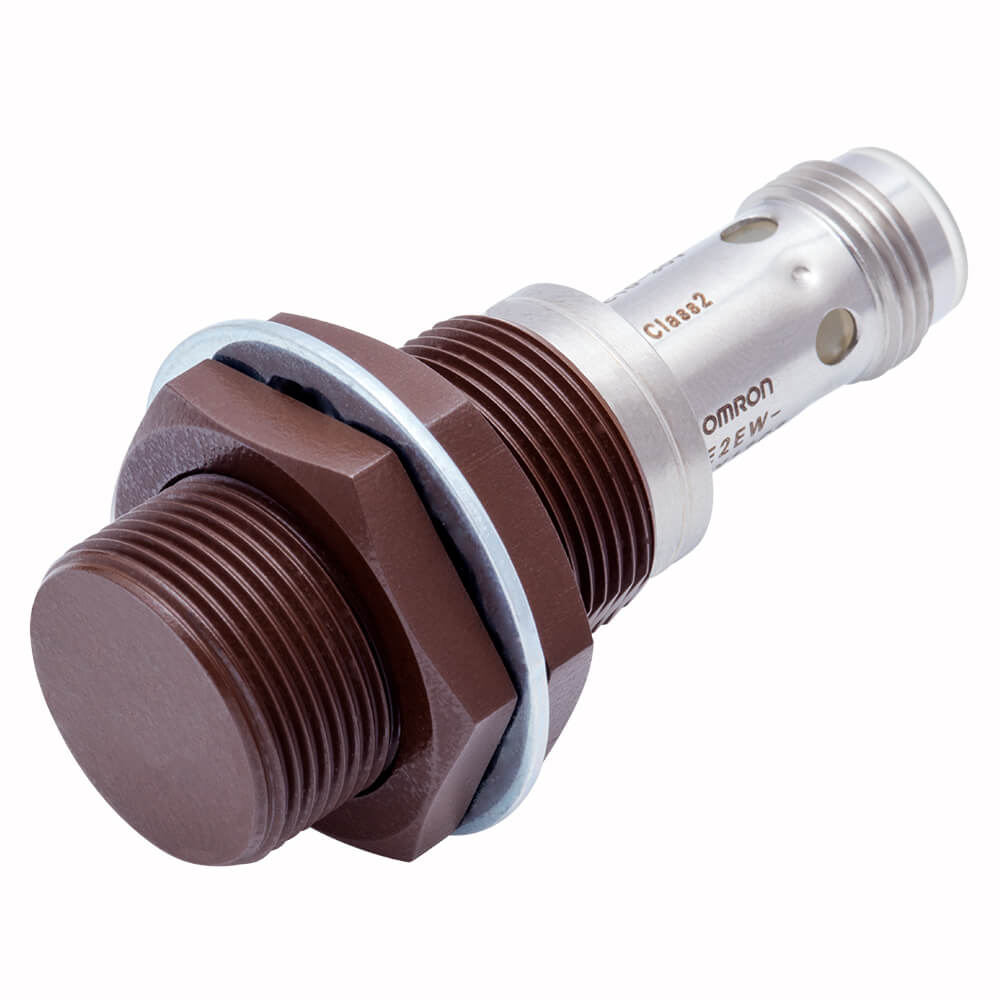

Omron E2EW-QX10B1T18-M1 Inductive Proximity Sensor

Technical Description

The Omron E2EW-QX10B1T18-M1 Inductive Proximity Sensor is engineered for metal object detection in industrial environments where resistance to contamination and process-related debris is important. This sensor belongs to the Omron E2EW family, which is developed for demanding manufacturing applications including welding automation, metal processing, and robotic assembly systems.

Featuring an M18 cylindrical housing and a nominal sensing distance of 10 mm, the sensor supports reliable detection of metallic targets while maintaining installation flexibility. The integrated M12 connector simplifies maintenance and replacement procedures in modern automation systems.

The Omron E2EW-QX10B1T18-M1 Inductive Proximity Sensor combines non-contact sensing technology with a robust stainless-steel construction, making it suitable for continuous industrial operation.

Working Principle

The sensor generates an electromagnetic field at its sensing face. When a conductive metal object enters this field, eddy currents are produced within the target material. These currents affect the oscillator circuit inside the sensor.

The internal electronics continuously monitor these changes. Once the target reaches the configured sensing range, the sensor activates its PNP normally open output signal. Because no physical contact occurs during detection, wear and mechanical degradation are minimized.

This operating principle allows the Omron E2EW-QX10B1T18-M1 Inductive Proximity Sensor to provide stable performance in repetitive industrial processes.

Application Areas

• Automated welding systems
• Industrial robotics
• Assembly automation
• Machine tool equipment
• Material handling systems
• Automotive production lines
• Metal fabrication machinery
• Industrial conveyors

Industrial Applications

Robotic Manufacturing Cells

Robotic systems frequently require accurate position feedback for fixtures and metallic workpieces. Inductive sensors can verify component locations before automated operations begin.

Metalworking Facilities

Machining centers and fabrication equipment use proximity sensors to monitor workpiece placement, tooling positions, and fixture engagement.

Automotive Production Systems

Automotive manufacturers use sensors throughout body assembly, chassis production, and component handling processes where reliable metallic object detection is required.

Automated Conveyor Equipment

Material transport systems can employ the sensor to detect carriers, pallets, and positioning elements during product movement.

Advantages

• 10 mm sensing distance
• Compact M18 threaded housing
• PNP normally open output
• M12 connector for easy installation
• IP67 environmental protection
• Fluororesin-coated sensing surface
• Stainless-steel construction
• Non-contact detection technology

Sector-Specific Usage Examples

In automotive welding stations, the sensor can verify whether a body panel is correctly positioned before a robotic welding sequence begins. In industrial machine tools, it can monitor fixture locking mechanisms to ensure operational readiness.

Metal processing plants often install the Omron E2EW-QX10B1T18-M1 Inductive Proximity Sensor near transfer systems where reliable metal detection is required despite contamination from chips, dust, or process residues.

Packaging machinery manufacturers may also integrate the sensor into transport systems that utilize metallic carriers or indexing mechanisms.

Considerations When Selecting a Sensor

• Required sensing distance
• Target material type
• Available installation space
• Output configuration requirements
• Connector preferences
• Environmental exposure levels
• Ingress protection requirements
• Maintenance accessibility

Additional industrial sensing technologies can be explored through Omron sensor products and related automation solutions.

The Omron E2EW-QX10B1T18-M1 Inductive Proximity Sensor provides reliable metallic object detection for industrial systems that require durable construction, simple connectivity, and stable operation.

Frequently Asked Questions

1. What is the sensing distance of this sensor?

The nominal sensing distance is 10 mm.

2. Which output configuration is provided?

The sensor uses a PNP normally open output.

3. What connection method does the sensor use?

The device utilizes an M12 connector.

4. Is the sensor suitable for welding automation?

Yes. The E2EW series is designed for demanding industrial environments including welding-related applications.

5. What supply voltage range is supported?

The operating voltage range is 10 to 30 VDC.

6. Does the sensor require direct contact with the target?

No. Detection occurs through electromagnetic induction.

7. What protection rating is available?

The sensor is rated IP67.

8. Which industries commonly use this model?

Automotive manufacturing, machine building, robotics, metal processing, logistics, and industrial automation industries frequently utilize this sensor.
