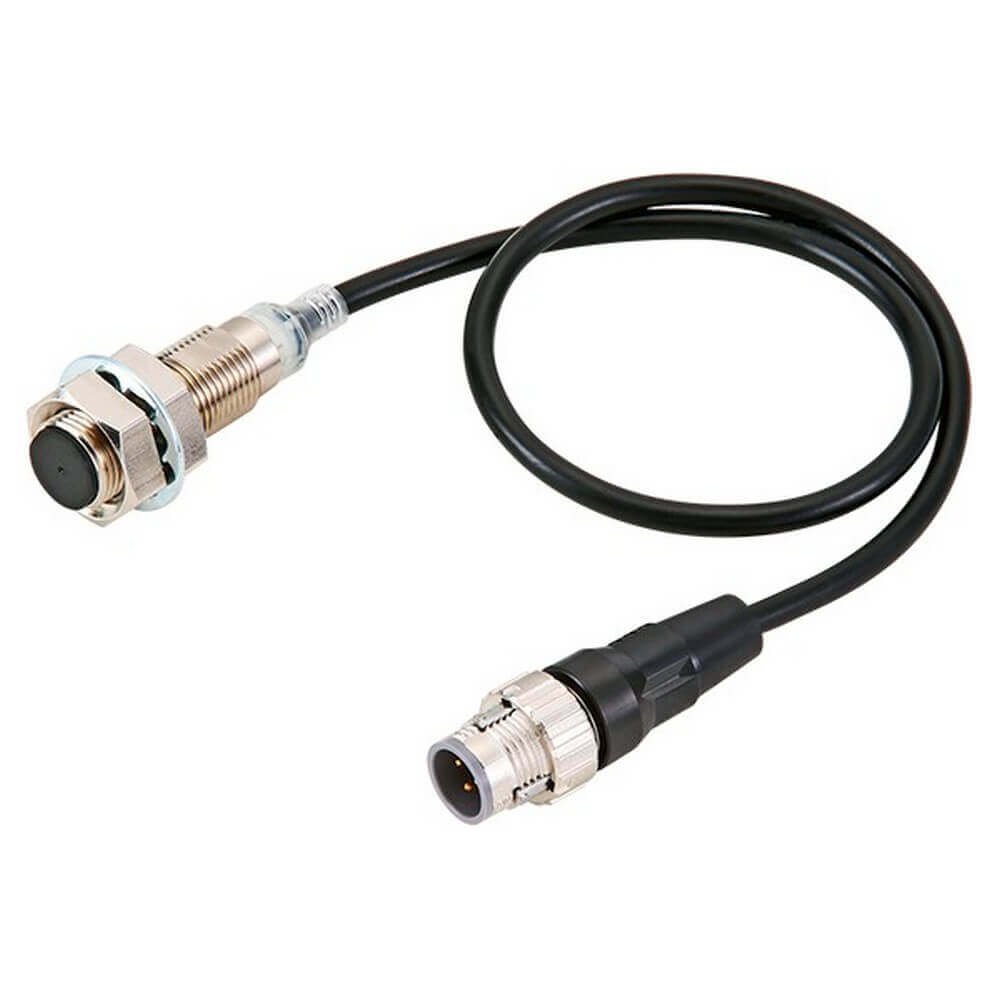

Omron E2E-X7D212-M1TGJ 0.3M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M12 |
| Mounting Type | Shielded (Quasi-flush) |
| Sensing Distance | 7 mm |
| Output Type | DC 2-wire |
| Operation Mode | NC (Normally Closed) |
| Connection Type | M12 Connector with 0.3 m Lead Cable |
| Housing Material | Nickel-plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Response Frequency | 350 Hz |
| Overall Length | 47.1 mm |
| Connector Type | M12 Male Connector |
Technical Description
The Omron E2E-X7D212-M1TGJ 0.3M Inductive Proximity Sensor combines a compact connector-based design with the sensing performance of the E2E NEXT series. The M12 connector configuration simplifies installation, maintenance, and replacement procedures.
Working Principle
An electromagnetic field is generated at the sensing face. When a metallic object enters the field, the resulting eddy currents modify oscillator behavior, allowing the internal electronics to detect target presence.
Applications
- Modular automation equipment
- Machine building
- Robotic systems
- Packaging equipment
- Automated assembly cells
- Transfer machinery
- Production line monitoring
Industrial Applications
The connectorized design is especially useful in manufacturing facilities that require rapid sensor replacement during maintenance operations.
Advantages
- M12 connector interface
- Fast installation and replacement
- 7 mm sensing distance
- Compact M12 housing
- NC output operation
- High ingress protection ratings
- Industrial-grade durability
Sector-Specific Examples
Electronics manufacturing systems use connectorized sensors to reduce downtime. Packaging machinery builders benefit from simplified field wiring and maintenance procedures.
Selection Considerations
Verify connector compatibility, sensing requirements, mounting dimensions, and environmental conditions before implementation.
For additional technologies, visit More Omron sensor solutions.
The Omron E2E-X7D212-M1TGJ 0.3M Inductive Proximity Sensor provides flexible installation through its connectorized interface.
The Omron E2E-X7D212-M1TGJ 0.3M Inductive Proximity Sensor is frequently integrated into modular automation systems that require efficient maintenance procedures.
Frequently Asked Questions
What connection type is used?
An M12 connector with a 0.3 m lead cable.
What sensing distance is available?
7 mm nominal sensing distance.
What output configuration is provided?
Normally Closed DC 2-wire output.
Why use a connectorized sensor?
It simplifies installation and replacement.
Can it be used in automated machinery?
Yes, it is designed for industrial automation systems.
What protection ratings are available?
IP67, IP67G, and IP69K.
Is it suitable for machine builders?
Yes, particularly where modular installation is preferred.
What materials can it detect?
Metallic targets through inductive sensing technology.
