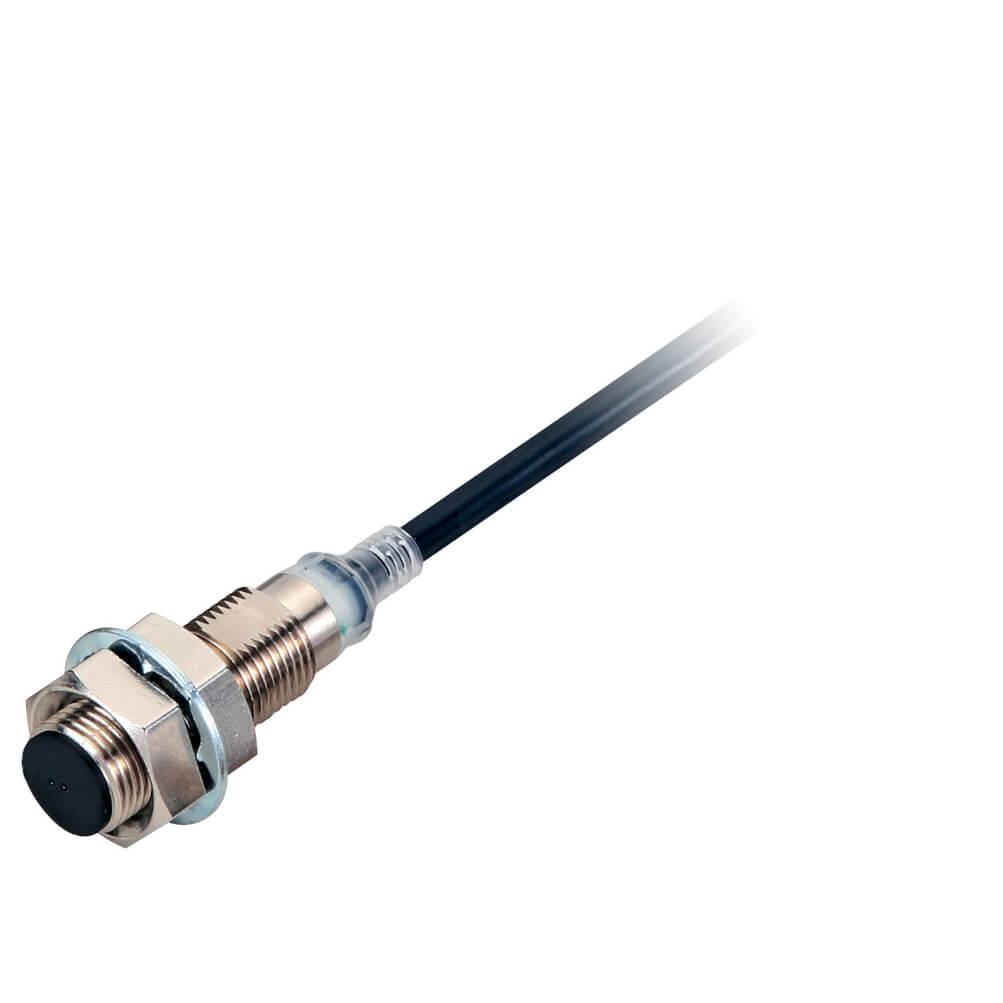

Omron E2E-X7D212 5M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M12 |
| Mounting Type | Shielded (Quasi-flush) |
| Sensing Distance | 7 mm |
| Output Type | DC 2-wire |
| Operation Mode | NC (Normally Closed) |
| Cable Length | 5 m Robotic Flexible Cable |
| Housing Material | Nickel-plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Response Frequency | 350 Hz |
| Overall Length | 47.1 mm |
| Connection Method | Pre-wired Cable |
Technical Description
The Omron E2E-X7D212 5M Inductive Proximity Sensor combines a long cable design with a compact M12 housing. It is engineered for metal detection tasks in automated machinery where extended installation distances are required.
Working Principle
The sensor utilizes electromagnetic induction technology to identify metallic objects entering its sensing zone. Internal electronics monitor oscillation changes and adjust the output state when a target is detected.
Applications
- Warehouse automation
- Conveyor transport systems
- Industrial robotics
- Assembly stations
- Packaging machinery
- Machine safety monitoring
- Material handling systems
Industrial Applications
This sensor is frequently deployed where long cable routing is necessary. Examples include large production lines, logistics facilities, and machine installations with remote control panels.
Advantages
- Extended 5 m cable
- Normally Closed output configuration
- High environmental protection
- Compact installation dimensions
- Contactless detection
- Reliable operation in industrial conditions
Sector-Specific Examples
Automated warehouses use the sensor to monitor transfer carts and metal positioning points. Manufacturing plants use it to verify machine status and actuator positions.
Selection Considerations
Ensure compatibility with the control architecture, required sensing range, installation environment, and cable routing requirements.
Additional detection technologies are available through Omron sensor series.
The Omron E2E-X7D212 5M Inductive Proximity Sensor is often used in systems requiring extended cable runs and Normally Closed monitoring logic.
The Omron E2E-X7D212 5M Inductive Proximity Sensor supports reliable operation across a wide range of industrial applications.
Frequently Asked Questions
What is the cable length?
The sensor is supplied with a 5-meter cable.
What type of output is provided?
Normally Closed DC 2-wire output.
What sensing distance is available?
7 mm nominal sensing distance.
Can it operate in washdown environments?
Yes, thanks to IP67, IP67G, and IP69K ratings.
Is it suitable for conveyor systems?
Yes, it is commonly used in conveyor automation.
What housing size is used?
M12 cylindrical housing.
Can it detect aluminum targets?
Yes, though sensing performance may differ from ferrous metals.
What industries use this sensor?
Automation, logistics, packaging, and manufacturing industries.
