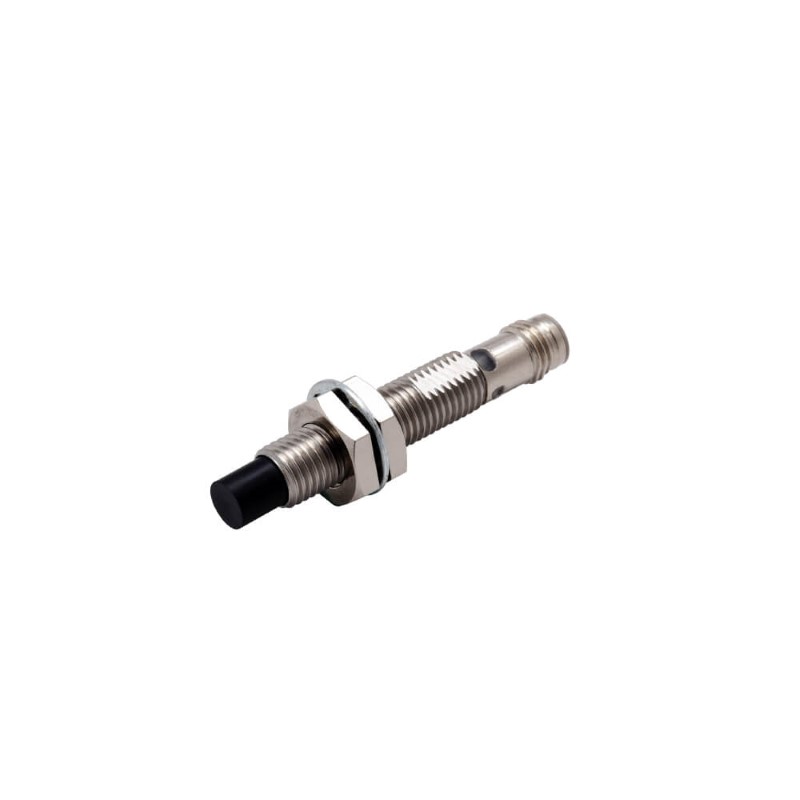

Omron E2E-X6MC18-M1 Inductive Proximity Sensor

Technical Description

The Omron E2E-X6MC18-M1 Inductive Proximity Sensor is a compact industrial sensing device developed for reliable metallic object detection in automated equipment. As part of the E2E NEXT sensor family, this model combines a short-body M8 housing with a non-flush sensing structure, enabling a sensing distance of 6 mm while maintaining installation flexibility in space-constrained machinery.

The Omron E2E-X6MC18-M1 Inductive Proximity Sensor features an NPN normally open output and an M12 connector interface. Its stainless-steel housing is designed to withstand demanding industrial environments where vibration, coolant exposure, dust, and frequent maintenance activities are common. The short overall length simplifies installation inside compact machine assemblies and moving equipment.

Working Principle

The sensor operates by generating a high-frequency electromagnetic field from its sensing face. When a conductive metallic target enters this field, eddy currents are generated within the target material. These currents influence the internal oscillator circuit, allowing the sensor electronics to recognize the presence of the object and switch the output signal.

This contactless operating principle eliminates mechanical wear between the sensor and the detected object. As a result, the device is suitable for applications involving continuous movement, repetitive machine cycles, and high switching frequencies.

Usage Areas

• Metal target detection in production machinery
• Position verification of moving machine components
• Actuator stroke monitoring
• Fixture presence confirmation
• Transfer mechanism detection
• Automated handling systems
• Machine sequence control

The Omron E2E-X6MC18-M1 Inductive Proximity Sensor is particularly suitable for installations where machine designers require a short sensor body combined with a relatively long sensing range.

Industrial Applications

Assembly Automation

In automated assembly systems, the sensor can verify the position of metal tooling, fixtures, and workpiece carriers before a process cycle begins.

Conveyor Systems

The sensor can detect metallic pallets, transport carriers, and positioning mechanisms throughout automated material handling processes.

Robotic Workstations

Robot cells frequently require compact sensors for gripper position feedback and tooling verification. The short-body design helps simplify integration in restricted installation zones.

Packaging Equipment

The sensor can monitor indexing components, machine actuators, and transfer mechanisms used in continuous packaging operations.

Advantages

• Compact short-body M8 design
• 6 mm sensing distance
• NPN normally open output
• Non-contact sensing technology
• High-grade stainless-steel construction
• IP67, IP67G, and IP69K protection
• M12 connector for simplified installation
• Suitable for high-cycle automation systems

Sector-Based Usage Examples

Automotive Manufacturing

The sensor can confirm the position of metallic fixtures and transfer equipment used in automated assembly lines.

Electronics Production

Compact manufacturing equipment often requires reliable metal detection within limited installation space, making the sensor suitable for positioning applications.

Logistics Automation

Sorting systems and automated transfer equipment can use the sensor to monitor metal carriers and moving transport elements.

Industrial Machinery

Machine builders can integrate the Omron E2E-X6MC18-M1 Inductive Proximity Sensor into compact machine frames where durable and repeatable metal detection is required.

Selection Considerations

• Required sensing distance
• Target material composition
• Available installation space
• NPN input compatibility
• M12 connector requirements
• Environmental protection requirements
• Switching frequency requirements
• Maintenance accessibility

Because the Omron E2E-X6MC18-M1 Inductive Proximity Sensor uses a non-flush sensing design, adequate clearance should be maintained around the sensing face to avoid interference from nearby metal structures.

For additional industrial sensing solutions, visit Omron sensor product ranges.

Frequently Asked Questions

What type of sensor is the Omron E2E-X6MC18-M1 Inductive Proximity Sensor?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

What is the rated sensing distance?

The rated sensing distance is 6 mm.

What output configuration does this model use?

It uses an NPN normally open output.

Is the sensor suitable for compact installations?

Yes. The short-body M8 housing is designed for installations with limited space.

What connector is provided?

The sensor uses an M12 connector connection method.

Can it detect aluminum and steel?

Yes. It can detect conductive metallic targets, although sensing performance may vary depending on the material.

What protection rating does the sensor provide?

The sensor is rated IP67, IP67G, and IP69K.

Which industries commonly use this sensor?

Typical industries include automotive manufacturing, packaging, logistics automation, electronics production, and machine building.
