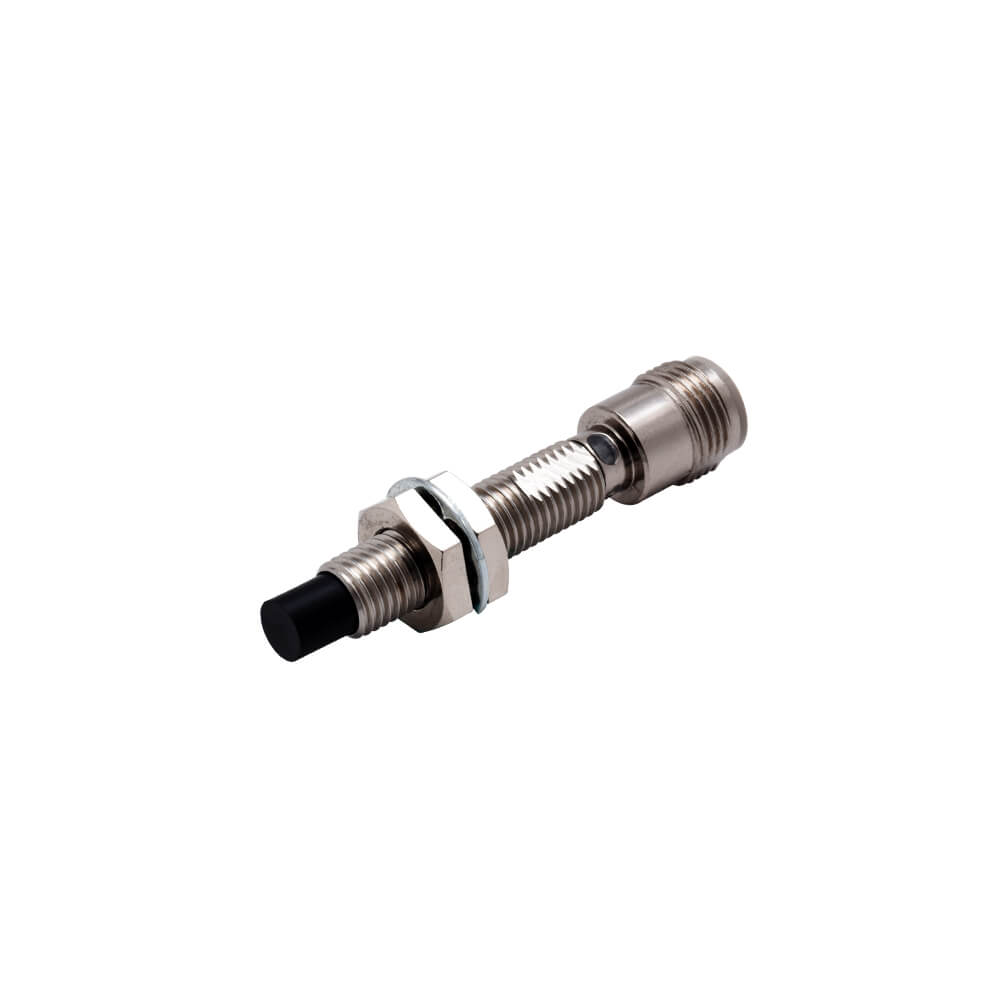

Omron E2E-X6MB2L8-M1 Inductive Proximity Sensor

Technical Description

The Omron E2E-X6MB2L8-M1 Inductive Proximity Sensor is an M8 cylindrical sensor used for non-contact detection of metallic objects in industrial automation systems. It belongs to the E2E NEXT series and is designed with a non-flush sensing structure, allowing a 6 mm sensing distance in compact machine installations.

This model uses a PNP normally closed output and an M12 connector. The high-grade stainless-steel housing supports mechanical durability in environments exposed to vibration, oil mist, water, and cleaning processes.

Working Principle

The sensor generates an electromagnetic field from its sensing face. When a metallic target enters this field, eddy currents are produced in the target material. These eddy currents change the internal oscillation condition, and the sensor electronics convert this change into a switching signal.

Usage Areas

• Metal part detection in automated machinery
• End-position sensing on pneumatic or mechanical actuators
• Fixture position confirmation
• Conveyor carrier detection
• Machine reference point monitoring

Industrial Applications

The Omron E2E-X6MB2L8-M1 Inductive Proximity Sensor can be used in packaging equipment, assembly machinery, robotic cells, material handling systems, and compact machine modules. Its non-contact operation helps reduce mechanical wear in high-cycle applications.

Omron E2E-X6MB2L8-M1 Advantages

• 6 mm sensing distance in an M8 housing
• Non-contact metal detection
• PNP normally closed output
• M12 connector for structured wiring
• High-grade stainless-steel body
• IP67, IP67G, and IP69K protection ratings
• Suitable for compact automation equipment

Sector-Based Usage Examples

Automotive Assembly

The sensor can confirm whether metal fixtures, transfer slides, or locating plates are correctly positioned before a production sequence begins.

Packaging Machinery

It may be used to monitor indexing parts, guide mechanisms, or metallic machine elements in continuous packaging operations.

Machine Building

Machine builders can integrate the sensor into compact equipment where space is restricted but reliable metal detection is required.

Selection Considerations

• Required sensing distance
• Target material characteristics
• Mounting clearance for non-flush installation
• PLC input compatibility
• Connector compatibility
• Environmental protection requirements
• Output logic requirements
• Maintenance and diagnostic needs

For related industrial sensing options, see Omron sensor product ranges.

Frequently Asked Questions

What type of sensor is the Omron E2E-X6MB2L8-M1 Inductive Proximity Sensor?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The rated sensing distance is 6 mm.

What output type does it use?

It uses a PNP normally closed output.

Is this model flush mountable?

No. It is a non-flush sensor and requires suitable clearance around the sensing face.

What connector type is used?

The sensor uses an M12 connector.

Can it detect plastic or glass?

No. Inductive sensors are intended for metallic targets.

Which industries use this sensor?

It is used in automotive, packaging, machine building, logistics automation, and general manufacturing systems.

What should be checked before installation?

Sensing distance, target material, mounting space, output logic, connector type, and environmental conditions should be checked.
