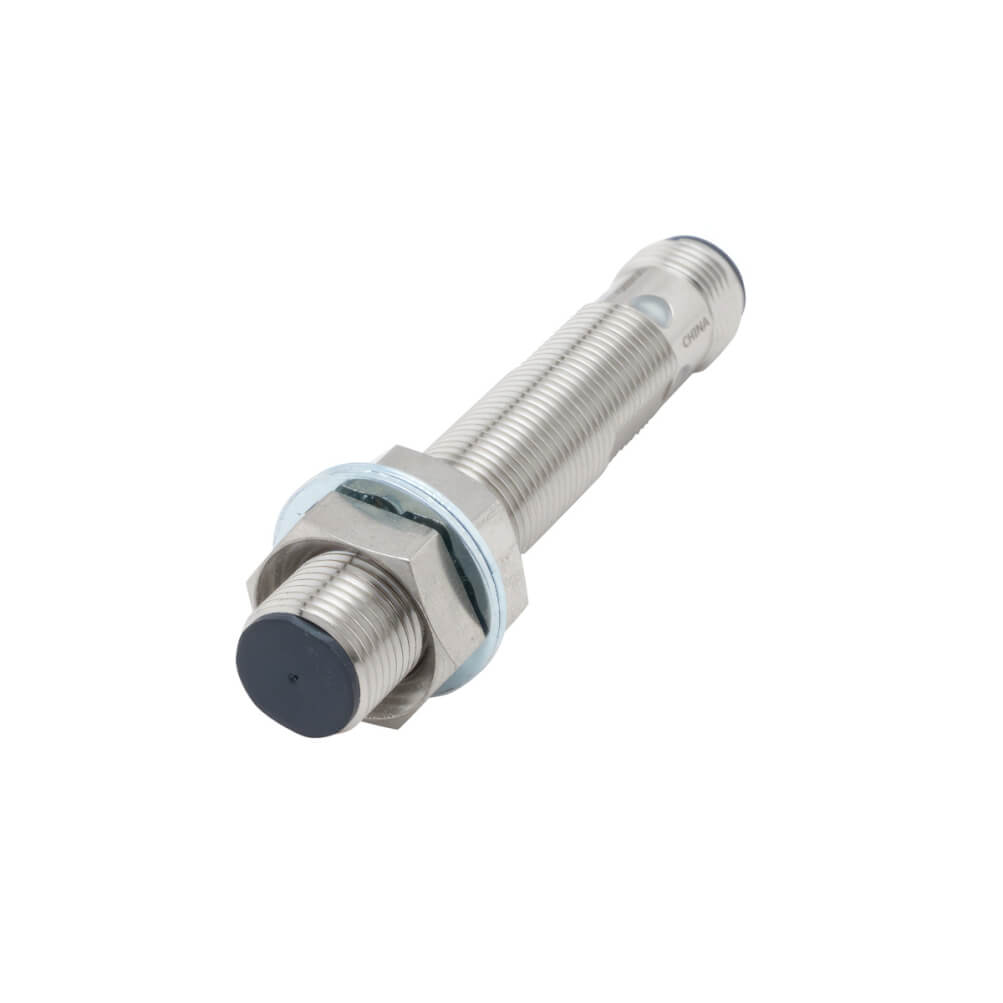

Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor

Technical Overview

The Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor is part of the E2E NEXT family designed for reliable metallic object detection in industrial automation environments. The sensor features a shielded M12 cylindrical housing and provides a 6 mm sensing distance while maintaining installation flexibility in compact machinery and automated equipment.

This model combines traditional inductive sensing technology with IO-Link communication capabilities. As a result, the sensor can transmit process data, diagnostic information, and device parameters through a standardized communication interface. The nickel-plated brass housing enhances durability in demanding industrial conditions while supporting long-term operation.

How the Sensor Works

The Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor operates by generating an electromagnetic field at the sensing face. When a metallic target enters this field, eddy currents are induced within the target material. These currents alter the oscillation characteristics of the sensor’s internal circuit.

The sensor continuously monitors these changes and switches its PNP normally open output when the target reaches the specified sensing range. In addition to standard switching functionality, the integrated IO-Link interface allows access to sensor status information, operating conditions, and parameter settings through compatible control systems.

Key Functional Characteristics

Extended Detection Capability

The 6 mm sensing distance provides increased installation tolerance compared to conventional inductive sensors of similar size. This can help reduce the risk of mechanical contact between moving machine components and the sensor surface.

IO-Link Connectivity

IO-Link COM3 communication supports high-speed data exchange between the sensor and automation controllers. Maintenance personnel can access device information remotely and monitor sensor performance without direct physical interaction.

Industrial Protection

With IP67 and IP69K protection ratings, the sensor can withstand dust exposure, washdown procedures, and harsh environmental conditions commonly found in industrial production facilities.

Typical Applications

The Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor is suitable for applications requiring reliable metal object detection and process monitoring.

• Position detection on automated assembly machines
• Metal component verification in production lines
• Conveyor system monitoring
• Robotic end-effector positioning
• Packaging machine synchronization
• Transfer system control
• Machine tool position feedback
• Automated storage and retrieval systems

For engineers evaluating related sensing technologies and compatible products, additional information can be found through Omron sensor product ranges.

Industrial Applications

In automotive manufacturing, the sensor is frequently used to detect metal brackets, fixtures, and moving machine components during assembly operations. Its compact M12 design allows integration into tooling stations where installation space is limited.

Within packaging facilities, the sensor can monitor metal machine parts that control indexing, sealing, and product transfer operations. The high switching frequency supports fast-moving production processes.

Food processing equipment manufacturers often utilize IP69K-rated sensors in machinery exposed to cleaning procedures. The durable housing and environmental protection support operation in washdown areas where moisture resistance is essential.

Material handling systems also benefit from the Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor by providing reliable position feedback for automated transfer units, lifts, and conveyor sections.

Advantages

• Compact M12 cylindrical design
• 6 mm sensing distance in a shielded configuration
• Integrated IO-Link communication
• High switching frequency up to 800 Hz
• IP67 and IP69K environmental protection
• Nickel-plated brass housing for mechanical durability
• Standard M12 connector interface
• Suitable for modern Industry 4.0 architectures

Industry-Specific Use Cases

Automotive Production

Detection of fixture positions and confirmation of metallic workpiece presence during automated assembly sequences.

Machine Building

Monitoring actuator positions and mechanical movements within custom industrial equipment.

Packaging Systems

Verification of machine cycle positions and synchronization of moving mechanisms.

Warehouse Automation

Position sensing for transfer carts, lift modules, and automated storage equipment.

Important Selection Considerations

When selecting the Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor, engineers should verify the required sensing distance, mounting configuration, communication requirements, and environmental conditions. The sensor is optimized for metallic targets and should be evaluated according to target size, material composition, and installation spacing.

Projects utilizing digital diagnostics or predictive maintenance strategies may particularly benefit from the integrated IO-Link functionality. Additionally, compatibility with existing M12 cabling and control hardware should be confirmed during system design.

Frequently Asked Questions

What type of sensor is the Omron E2E-X6B1TL12-M1?

It is a shielded inductive proximity sensor designed for detecting metallic objects without physical contact.

What is the sensing distance?

The specified sensing distance is 6 mm.

Does the sensor support IO-Link?

Yes. It includes IO-Link COM3 communication for process and diagnostic data exchange.

What output configuration does it use?

The sensor provides a PNP normally open (NO) output.

Which industries commonly use this sensor?

Automotive manufacturing, packaging, machine building, logistics, and material handling industries commonly use this model.

What protection ratings are available?

The sensor is rated IP67 and IP69K for demanding industrial environments.

What connection method is used?

The device uses a standard M12 connector connection.

Why choose the Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor for automation systems?

The Omron E2E-X6B1TL12-M1 Inductive Proximity Sensor combines non-contact metal detection, industrial protection ratings, and IO-Link communication in a compact M12 housing suitable for modern automation applications.
