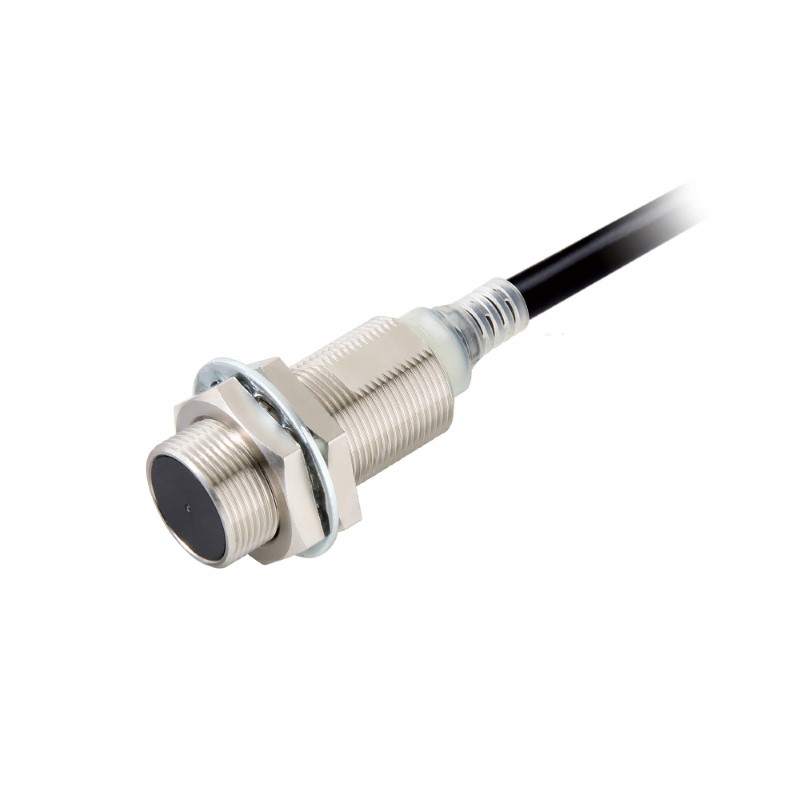

Omron E2E-X5D2-R-N 5M Inductive Proximity Sensor

Technical Description

The Omron E2E-X5D2-R-N 5M Inductive Proximity Sensor is designed for industrial applications requiring reliable metallic target detection over extended installation distances. The integrated 5-meter cable provides flexibility in machine layouts where the control cabinet or PLC input module is located far from the sensing point.

As part of the E2E NEXT family, the sensor combines a durable M18 threaded housing, flush mounting capability, and robust environmental protection. The Omron E2E-X5D2-R-N 5M Inductive Proximity Sensor is commonly used in automated machinery, logistics systems, and manufacturing equipment where stable sensing performance is required.

Operating Principle

The sensor operates by generating an electromagnetic field from its sensing face. When a conductive metallic object enters this field, induced eddy currents absorb energy from the oscillator circuit.

The resulting change in oscillation amplitude is continuously monitored by the internal electronics. Once the detection threshold is reached, the output switches and transmits the sensing signal to the control system.

This contactless operating principle eliminates mechanical wear and supports long-term operation in repetitive industrial processes.

Usage Areas

• Automated conveyor systems
• Warehouse automation equipment
• Packaging lines
• Assembly machinery
• Machine tools
• Transfer stations
• Material handling systems
• Robotic production cells

The extended cable length simplifies installation in larger production facilities and equipment layouts.

Industrial Applications

Warehouse Automation

Storage and retrieval systems can use the sensor to identify shuttle positions, metal carriers, and transfer mechanisms.

Production Line Equipment

Manufacturing lines often require confirmation of mechanical positions before advancing to subsequent production stages.

Conveyor Integration

The sensor can detect steel pallets, transport fixtures, and guide components within automated conveyor systems.

Industrial Robotics

Robotic workstations use inductive sensors to verify metal tooling positions and detect fixture engagement conditions.

Additional automation products can be explored through Omron sensor product ranges when designing larger sensing architectures.

Omron E2E-X5D2-R-N 5M Advantages

• Extended 5-meter cable connection
• Reliable metallic object detection
• Flush mounting capability
• High environmental protection levels
• Oil-resistant cable construction
• Durable metal housing
• Reduced maintenance requirements
• Suitable for continuous industrial operation

Selection Considerations

Engineers should evaluate sensing distance requirements, installation space, target material characteristics, environmental conditions, and cable routing requirements before selecting a proximity sensor.

The Omron E2E-X5D2-R-N 5M Inductive Proximity Sensor is particularly suitable where a long cable connection, flush mounting design, and 5 mm sensing distance are required.

Frequently Asked Questions

What objects can this sensor detect?

The sensor is designed for metallic object detection.

What is the sensing distance?

The nominal sensing distance is 5 mm.

What output type does it use?

It uses a DC 2-wire normally open output.

Omron E2E-X5D2-R-N 5M How long is the cable?

The sensor is supplied with a 5-meter integrated cable.

Can it be flush mounted?

Yes, the sensor is designed for flush installation.

Is it suitable for harsh industrial environments?

Yes. The sensor offers IP67, IP67G, and IP69K protection ratings.

What material is used for the housing?

The housing is manufactured from nickel-plated brass.

Where is the Omron E2E-X5D2-R-N 5M Inductive Proximity Sensor commonly used?

It is commonly used in warehouse automation, conveyors, robotic systems, machine tools, and industrial production equipment.
