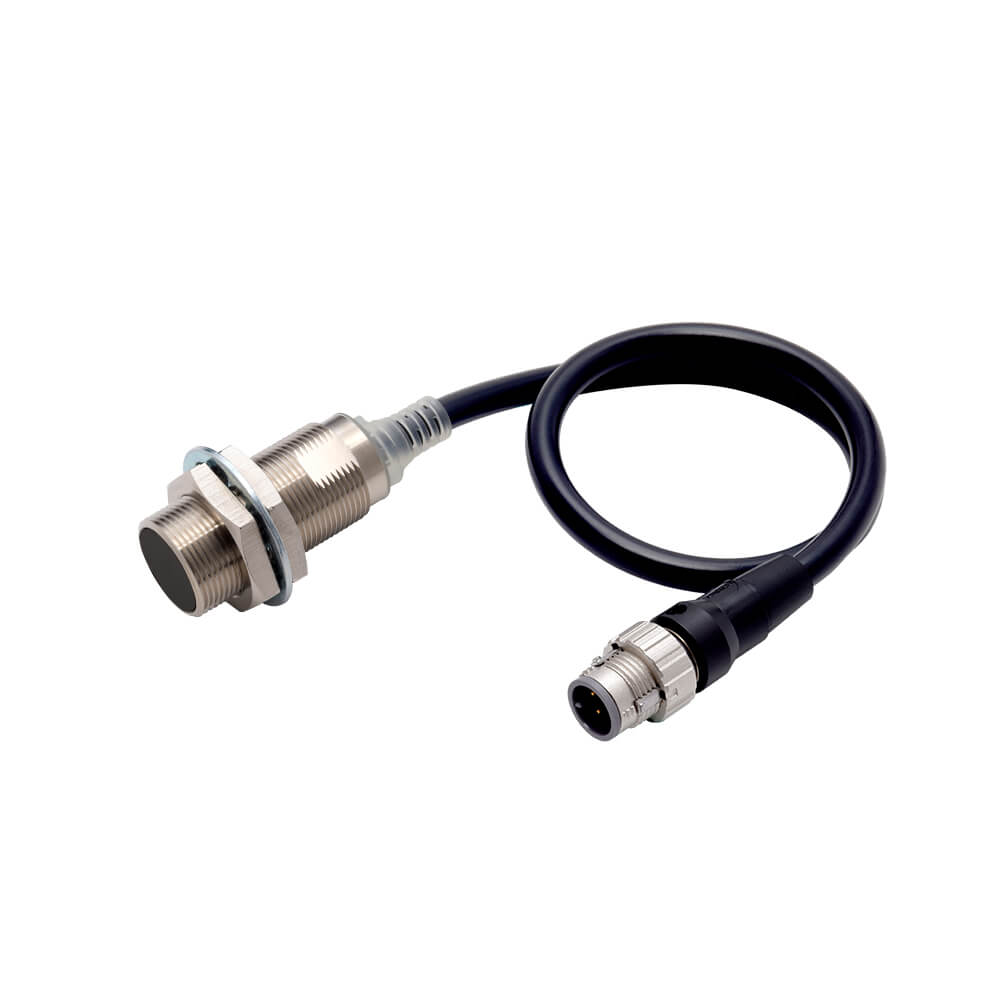

Omron E2E-X5D2-M1TGJ 0.3M Inductive Proximity Sensor

Accurate detection of metallic components is a critical requirement in modern industrial automation. The Omron E2E-X5D2-M1TGJ 0.3M Inductive Proximity Sensor is engineered to provide reliable non-contact sensing while supporting fast machine operation and simplified installation through its integrated M12 connector design.

As part of the E2E NEXT sensor family, this model combines enhanced environmental resistance with stable detection performance. The Omron E2E-X5D2-M1TGJ 0.3M Inductive Proximity Sensor is widely used in manufacturing equipment, conveyor systems, assembly machinery, robotic workstations, and industrial handling applications where repeatable sensing accuracy is required.

Technical Description

This sensor is an M18 cylindrical inductive proximity sensor designed for flush mounting installations. It provides a rated sensing distance of 5 mm and incorporates a PNP normally open transistor output suitable for integration with modern PLCs, industrial controllers, and automation systems.

The sensor features an M12 SmartClick connector interface with a 0.3-meter pre-wired cable section. This configuration reduces installation time while simplifying maintenance and replacement procedures in industrial environments.

The housing is manufactured from nickel-plated brass, providing mechanical durability and resistance to industrial contaminants. The sensing face utilizes durable PBT material designed for long-term operational stability.

Working Principle

The Omron E2E-X5D2-M1TGJ 0.3M Inductive Proximity Sensor operates using electromagnetic induction technology. An internal oscillator continuously generates a high-frequency electromagnetic field at the sensing face.

When a conductive metal object enters this field, eddy currents are induced within the target. These currents absorb energy from the oscillator circuit and alter the oscillation amplitude. The sensor electronics detect this change and activate the PNP output when the predefined threshold is reached.

This non-contact operating principle eliminates mechanical wear and enables stable sensing performance even in applications involving frequent machine cycles and continuous operation.

Applications

• Metal part detection on assembly lines
• Machine position monitoring
• Industrial robotics
• Conveyor tracking systems
• Packaging equipment
• Automated transfer systems
• Material handling machinery
• Production cell automation

The Omron E2E-X5D2-M1TGJ 0.3M Inductive Proximity Sensor is particularly suitable for installations requiring connector-based wiring and rapid component replacement during maintenance activities.

Industrial Applications

Robotic Manufacturing Systems

Industrial robots often require accurate feedback regarding workpiece positions and fixture locations. Inductive sensors provide dependable detection without physical contact, supporting consistent automation performance.

Automotive Production Facilities

Automotive assembly operations use proximity sensors to verify component presence, monitor tooling positions, and control automated production sequences.

Packaging Machinery

Packaging equipment relies on sensor feedback to synchronize machine functions and monitor the movement of metallic machine elements throughout production cycles.

Material Handling Equipment

Automated warehouses and transfer systems utilize inductive sensors to detect carriers, pallets, and moving equipment components within material flow processes.

Advantages

• 5 mm sensing distance
• PNP normally open output
• M12 SmartClick connector design
• High switching frequency up to 1 kHz
• Flush mounting capability
• IP67, IP67G, and IP69K protection ratings
• Durable metal housing construction
• Simplified installation and maintenance

Engineers evaluating industrial sensing technologies can explore additional Omron sensor series for applications requiring alternative sensing distances, connector types, or housing dimensions.

Sector-Specific Usage Examples

• Detecting steel brackets in automotive assembly stations
• Monitoring pallet transfer systems in logistics facilities
• Verifying fixture positions in robotic welding cells
• Tracking machine components in packaging lines
• Detecting metal carriers in conveyor automation
• Monitoring actuator positions in industrial machinery

Considerations When Selecting a Sensor

Sensor selection should be based on application requirements such as sensing distance, switching speed, environmental conditions, mounting space, and electrical compatibility.

The Omron E2E-X5D2-M1TGJ 0.3M Inductive Proximity Sensor offers advantages in systems requiring fast response rates and connector-based installation. Engineers should verify target dimensions, mounting arrangements, and PLC input requirements during system design.

Environmental factors such as washdown procedures, exposure to oils, vibration levels, and operating temperatures should also be considered when specifying sensing equipment.

Omron E2E-X5D2-M1TGJ 0.3M Frequently Asked Questions

What is the sensing distance of this sensor?

The rated sensing distance is 5 mm.

What output type does the sensor use?

It provides a PNP normally open transistor output.

What connection method is used?

The sensor features an M12 SmartClick connector with a 0.3-meter pre-wired cable.

Can the sensor be mounted flush in metal surfaces?

Yes. The shielded design supports flush mounting installations.

What materials can it detect?

The sensor is designed for detecting metallic objects through inductive sensing technology.

Omron E2E-X5D2-M1TGJ 0.3M What protection ratings are provided?

The unit meets IP67, IP67G, and IP69K environmental protection standards.

What industries commonly use this model?

Automotive manufacturing, logistics automation, machine building, robotics, and packaging industries commonly utilize this sensor.

What is the operating temperature range?

The sensor operates from -25°C to +70°C.

What is the response frequency?

The maximum response frequency is 1 kHz.

Why choose a connector-based sensor design?

Connector-based installation simplifies maintenance, reduces downtime, and allows faster replacement during service operations.
