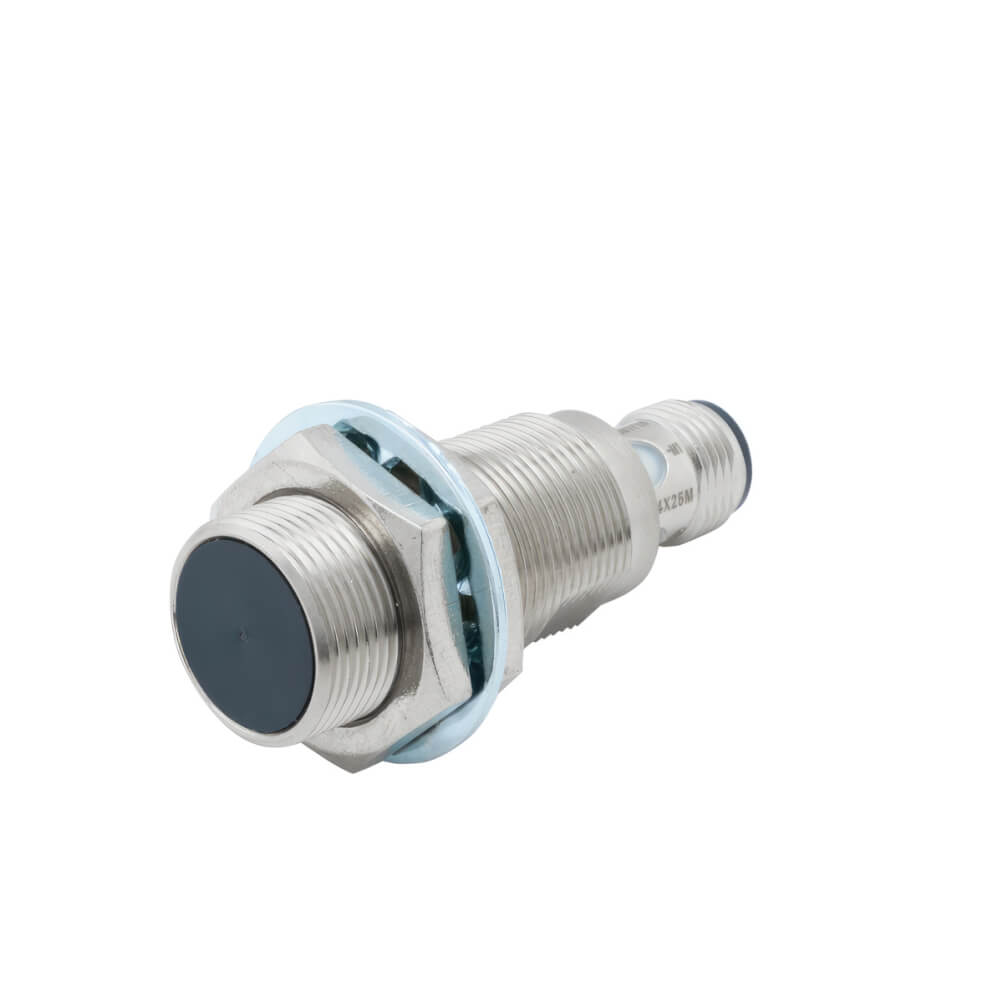

Omron E2E-X5C218-M1 Inductive Proximity Sensor

The Omron E2E-X5C218-M1 Inductive Proximity Sensor is designed for non-contact detection of ferrous metal targets in industrial automation environments. As part of the E2E NEXT series, this sensor combines a compact M18 cylindrical housing with reliable detection characteristics, making it suitable for machine building, production systems, and material handling applications.

Technical Overview

The Omron E2E-X5C218-M1 Inductive Proximity Sensor uses electromagnetic field technology to detect metallic objects within a nominal sensing distance of 5 mm. Its flush-mounted shielded construction allows installation in metal surfaces while maintaining stable sensing performance.

The sensor features an NPN open-collector output configured for normally closed operation. The M12 connector interface simplifies installation and replacement procedures while supporting standardized industrial wiring practices.

The nickel-plated brass housing provides mechanical durability, while IP67 and IP69K protection ratings support operation in environments exposed to moisture, washdown procedures, dust, and industrial contaminants.

Working Principle

The sensor generates a high-frequency electromagnetic field at the sensing face. When a ferrous metal object enters this field, eddy currents are induced in the target material. These currents modify the oscillator amplitude inside the sensing circuit.

The internal electronics continuously monitor these changes and switch the output when the detection threshold is reached. This process enables non-contact position sensing without mechanical wear.

The Omron E2E-X5C218-M1 Inductive Proximity Sensor is particularly useful where repetitive detection cycles require long-term reliability and stable switching behavior.

Typical Areas of Use

• Automated assembly equipment
• Packaging machinery
• Conveyor systems
• Industrial robotics
• Metal processing lines
• Automated storage systems
• Machine tool position monitoring

Industrial Applications

In manufacturing facilities, the sensor can verify the presence of metallic machine components before automated processing begins. This helps maintain sequence control and process synchronization.

In packaging operations, it can monitor actuator positions and detect metal carriers moving through transport mechanisms.

Material handling systems often employ the Omron E2E-X5C218-M1 Inductive Proximity Sensor for end-position monitoring of pneumatic cylinders and transfer mechanisms.

Advantages

• Non-contact metal detection
• Compact M18 cylindrical design
• High environmental protection rating
• Stable operation across a wide temperature range
• Fast 600 Hz response frequency
• Connector-based installation
• Suitable for harsh industrial environments

Sector-Specific Examples

Automotive Manufacturing

Used for fixture position verification and detection of metallic workpieces on assembly lines.

Food Processing Equipment

Installed on machinery requiring washdown-resistant sensing devices due to frequent cleaning procedures.

Warehouse Automation

Supports position monitoring of transfer units, elevators, and automated storage mechanisms.

Considerations When Selecting a Sensor

• Verify that the target material is metallic and suitable for inductive sensing.
• Confirm the required sensing distance relative to the application.
• Ensure compatibility with the control system input type.
• Evaluate environmental conditions such as temperature, vibration, and moisture exposure.
• Check mounting constraints and available installation space.

Additional information about Omron sensor products can be useful when comparing sensing technologies for automation projects.

Frequently Asked Questions

What type of sensor is the Omron E2E-X5C218-M1?

It is a shielded inductive proximity sensor designed for metal object detection.

What is the sensing distance?

The nominal sensing distance is 5 mm.

Which output configuration is used?

The sensor uses an NPN open-collector output with normally closed operation.

Can it be mounted flush in metal?

Yes. The shielded design supports flush mounting.

What protection rating does it provide?

The sensor is rated IP67 and IP69K.

What operating voltage is required?

It operates from 10 to 30 VDC.

Is the Omron E2E-X5C218-M1 Inductive Proximity Sensor suitable for washdown environments?

Its IP69K rating supports applications exposed to cleaning processes and water spray.

Where is the Omron E2E-X5C218-M1 Inductive Proximity Sensor commonly installed?

It is commonly installed in manufacturing machinery, conveyors, robotic systems, and material handling equipment.
