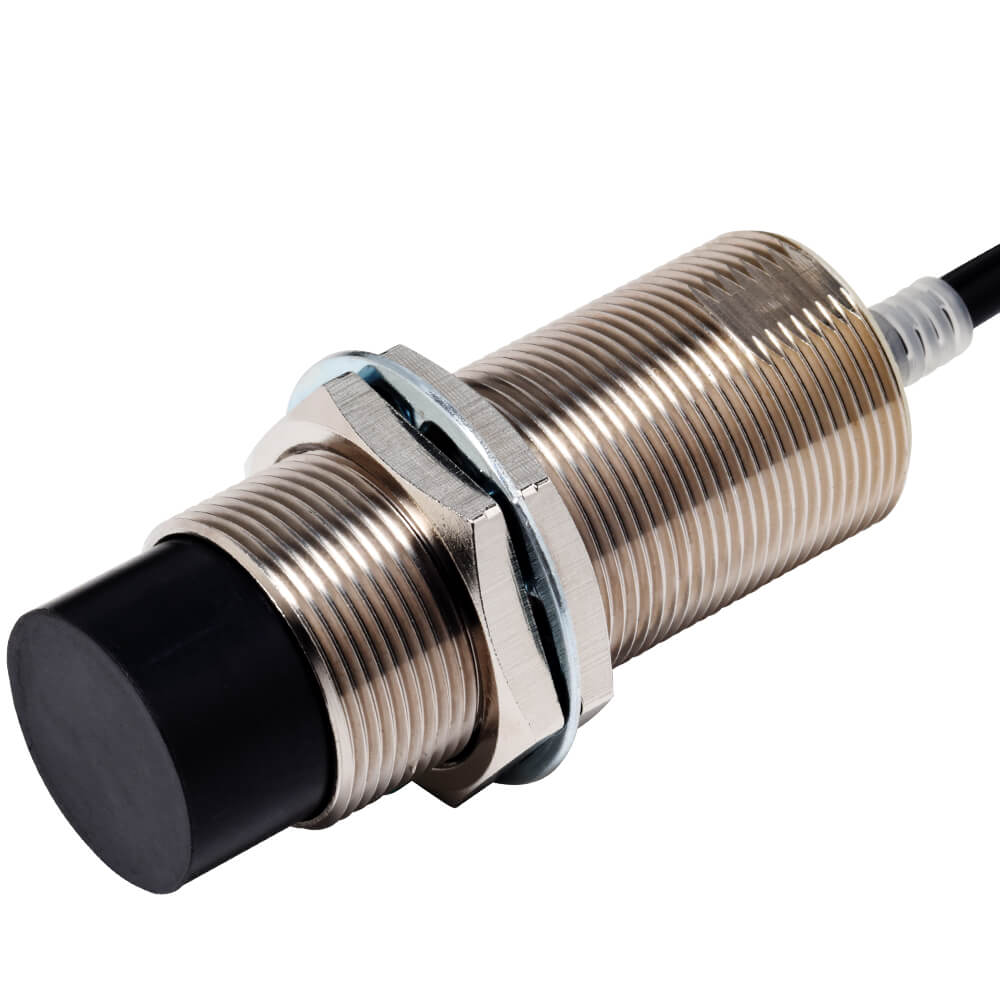

Omron E2E-X50MC2L30 2M Inductive Proximity Sensor

Technical Description

The Omron E2E-X50MC2L30 2M Inductive Proximity Sensor is designed for long-range metallic object detection in industrial automation systems. As a member of the E2E NEXT sensor family, it combines an extended sensing distance with robust environmental protection and stable switching performance. The sensor is intended for applications where dependable detection is required despite mechanical vibration, contamination, or challenging installation conditions.

Featuring an NPN normally closed output configuration and a 2-meter integrated cable, the Omron E2E-X50MC2L30 2M Inductive Proximity Sensor can be integrated into various machine control architectures. Its M30 threaded housing supports installation in manufacturing equipment, conveyor systems, automated machinery, and material handling applications where consistent detection of metallic targets is critical.

Operating Principle

The sensor utilizes inductive sensing technology to detect conductive metallic objects without physical contact. An internal oscillator generates a high-frequency electromagnetic field at the sensing surface. When a metal target enters this field, eddy currents are generated within the object, causing a measurable change in the oscillator circuit.

The internal electronics continuously monitor these changes and switch the output when the target reaches the defined sensing range. This method provides highly reliable operation while eliminating wear associated with mechanical contact devices.

Key Features

• 50 mm sensing distance for extended detection capability
• NPN normally closed output configuration
• M30 cylindrical threaded housing
• Integrated 2-meter cable connection
• Nickel-plated brass construction
• High resistance to industrial environments
• IP67, IP67G, and IP69K protection ratings
• Non-contact metallic object detection

Omron E2E-X50MC2L30 2M Application Areas

The sensor is suitable for installations requiring reliable position monitoring, object verification, and machine status detection. Its long sensing range can simplify installation and reduce the risk of accidental mechanical contact.

• Conveyor and transport systems
• Industrial assembly lines
• Packaging machinery
• Automated manufacturing equipment
• Metalworking machinery
• Warehouse automation systems
• Material handling equipment
• Production transfer stations

Industrial Applications

Automotive Production Facilities

Automotive manufacturing operations frequently require accurate monitoring of fixtures, transport carriers, and machine positioning systems. The sensor can provide dependable feedback for process control and sequencing tasks.

Packaging and Processing Equipment

Packaging machines often incorporate inductive sensors to monitor actuator positions, machine states, and mechanical indexing systems. Long sensing distances support flexible installation around moving equipment.

Automated Logistics Systems

Distribution centers and warehouse automation systems use proximity sensors to detect metallic carriers, transfer mechanisms, and conveyor components throughout transport operations.

Heavy Industrial Machinery

Metal processing and fabrication facilities frequently use inductive sensors to verify component positions and monitor machine movement during production cycles.

Omron E2E-X50MC2L30 2M Advantages

• Long sensing range reduces installation constraints
• Reliable operation without mechanical contact
• Durable housing suitable for industrial use
• High ingress protection ratings
• Resistance to moisture, dust, and contaminants
• Stable performance during continuous operation
• Compatible with common industrial control systems

Sector-Specific Usage Examples

In automated assembly systems, the sensor can verify the arrival of metallic fixtures before robotic operations are initiated.

A conveyor-based logistics system may use the sensor to detect pallet carriers approaching transfer stations, helping synchronize material movement between production zones.

In packaging facilities, the sensor can monitor the position of mechanical actuators and indexing components to support consistent machine operation.

Metal fabrication equipment can utilize the sensor to confirm the presence of workpiece carriers and moving machine elements throughout processing stages.

Considerations When Selecting a Sensor

Selecting the appropriate inductive proximity sensor requires evaluation of sensing distance, output type, environmental conditions, and installation requirements. Engineers should also verify compatibility with control hardware and available mounting space.

• Required sensing distance
• NPN output compatibility
• Environmental protection requirements
• Cable routing considerations
• Mechanical installation constraints
• Operating temperature conditions

Engineers interested in related industrial sensing technologies can explore Omron sensor product ranges for additional automation solutions.

Frequently Asked Questions

1. What type of objects can the sensor detect?

The sensor is designed to detect metallic objects using inductive sensing technology.

2. What is the sensing distance of this model?

The nominal sensing distance is 50 mm.

3. What output configuration does the sensor use?

The sensor provides an NPN normally closed output.

4. Does the sensor require physical contact with the target?

No. Detection occurs through an electromagnetic field without contact.

5. What type of connection is provided?

The sensor includes a permanently attached 2-meter oil-resistant PVC cable.

6. Is the sensor suitable for harsh industrial environments?

Yes. The sensor provides IP67, IP67G, and IP69K environmental protection ratings.

7. What voltage range is supported?

The operating voltage range is 10 to 30 VDC.

8. What housing material is used?

The sensor features a nickel-plated brass housing.

9. Which industries commonly use this product?

Automotive manufacturing, logistics, packaging, machine building, and metal processing industries commonly utilize this sensor.

10. Why is non-contact sensing beneficial?

Non-contact operation minimizes wear, reduces maintenance requirements, and supports long-term reliability in automated systems.
