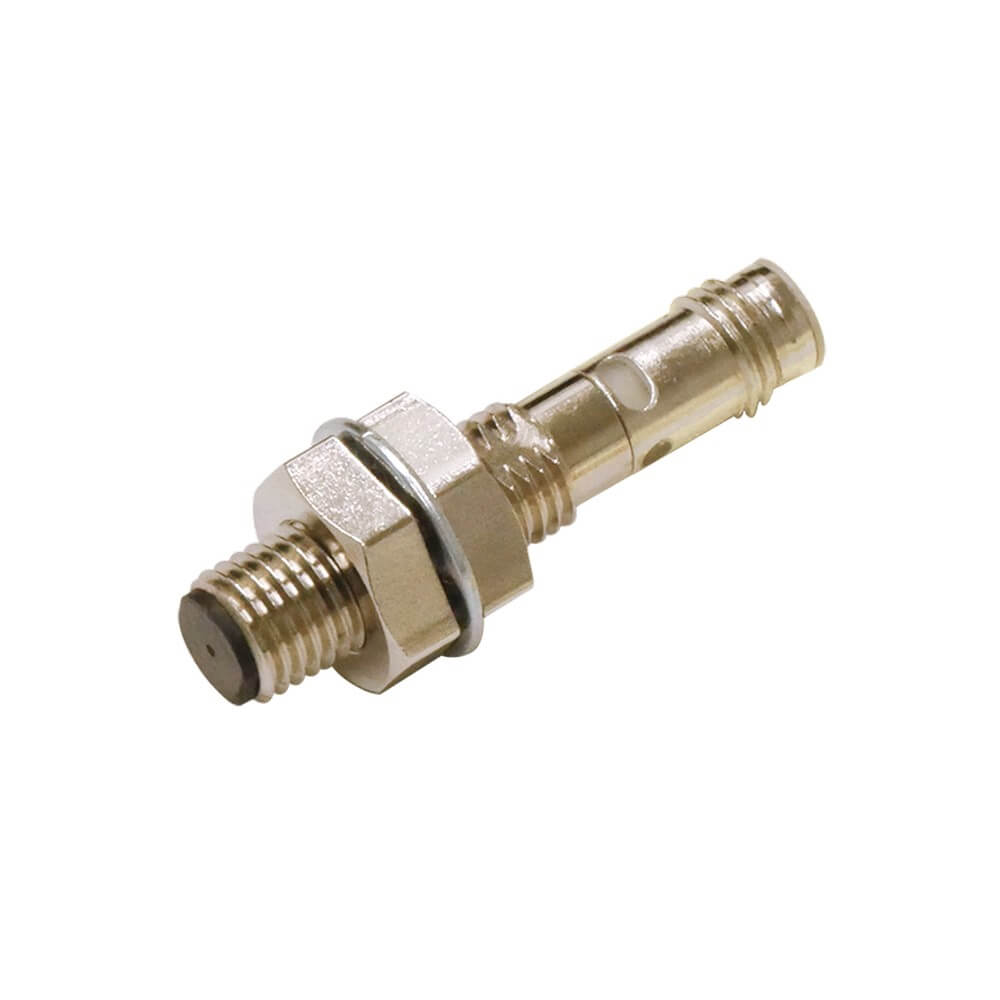

Omron E2E-X4C18-M5 Inductive Proximity Sensor

Reliable object detection is essential in automated manufacturing systems where equipment synchronization depends on accurate position and presence feedback. The Omron E2E-X4C18-M5 Inductive Proximity Sensor is designed for non-contact detection of metallic targets and supports continuous industrial operation across a wide range of automation applications.

Technical Description

The Omron E2E-X4C18-M5 Inductive Proximity Sensor is part of the E2E NEXT family of inductive sensors. Featuring a compact M8 cylindrical housing, it provides a 4 mm sensing distance and an NPN normally open switching output. The sensor operates from a 10 to 30 VDC power supply and includes a factory-attached 5-meter cable for installations that require extended connection distances.

Its nickel-plated brass construction contributes to mechanical durability, while its high ingress protection ratings support operation in environments exposed to moisture, dust, vibration, and routine cleaning procedures.

Operating Principle

The sensor operates by generating an electromagnetic field at the sensing face. When a conductive metal target enters this field, eddy currents are induced within the object. These currents affect the oscillation amplitude inside the sensor’s detection circuit.

Internal electronics monitor these changes and switch the output when the detection threshold is reached. Because no mechanical contact occurs between the sensor and the target, wear-related failures are minimized and consistent switching performance can be maintained over extended operating periods.

The Omron E2E-X4C18-M5 Inductive Proximity Sensor is designed to provide reliable metal detection in applications where stable operation and repeatability are critical.

Typical Applications

• Automated assembly systems
• Conveyor positioning systems
• Machine tool monitoring
• Material handling equipment
• Packaging machinery
• Metal processing lines
• Automated transfer stations
• Industrial robotics

Industrial Applications

In metalworking facilities, the sensor can detect incoming workpieces before cutting, forming, or machining operations begin. This allows controllers to verify process readiness before machine activation.

Within automated packaging lines, it can monitor actuator positions, guide mechanisms, and metallic machine elements throughout production cycles.

Material handling systems often use inductive sensors to verify carrier locations and confirm movement sequences between conveyor sections.

In industrial robotics, proximity sensors support end-of-travel detection and positioning verification for automated handling equipment.

Advantages

• Reliable detection of metallic objects
• Compact M8 threaded housing
• Extended 5-meter cable for flexible installation
• Non-contact sensing technology
• High resistance to industrial contaminants
• Stable switching performance
• Suitable for integration with PLC systems
• Reduced maintenance requirements

Omron E2E-X4C18-M5 Sector-Specific Use Cases

Steel Processing Facilities

Detects metal sheets and components as they move between production stages.

Automated Warehousing

Verifies transport carrier positions and transfer mechanism status.

Packaging Operations

Monitors moving machine assemblies and confirms mechanical positioning.

Industrial Robotics

Provides feedback regarding actuator and tooling positions within automated cells.

Omron E2E-X4C18-M5 Factors to Consider During Selection

Sensor selection should include evaluation of target material, sensing distance requirements, environmental conditions, available mounting space, electrical compatibility, and connection method.

The Omron E2E-X4C18-M5 Inductive Proximity Sensor is suitable for applications requiring compact dimensions combined with longer cable routing requirements.

Engineers seeking alternative detection technologies may also review additional Omron sensor solutions for broader automation requirements.

Frequently Asked Questions

1. What type of sensing technology is used?

The sensor uses inductive sensing technology for non-contact metal detection.

2. What is the rated sensing distance?

The rated sensing distance is 4 mm.

3. What output type does the sensor provide?

It features an NPN normally open output configuration.

4. What supply voltage is required?

The operating voltage range is 10 to 30 VDC.

5. How long is the attached cable?

The sensor includes a permanently attached 5-meter cable.

6. Can the sensor operate in wet environments?

Yes. The sensor is rated IP67, IP67G, and IP69K for protection against water and dust ingress.

7. Where is the Omron E2E-X4C18-M5 Inductive Proximity Sensor typically installed?

It is commonly installed in conveyors, packaging systems, machine tools, robotic equipment, and material handling systems.

8. Does the sensor require physical contact with the target?

No. Detection is achieved through an electromagnetic field without direct contact.

9. What housing material is used?

The sensor utilizes a nickel-plated brass housing.

10. Why is the Omron E2E-X4C18-M5 Inductive Proximity Sensor suitable for industrial automation?

Its compact design, robust environmental protection, and stable switching performance support reliable operation in demanding industrial environments.
