Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor

The Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor is designed for non-contact detection of metallic targets in industrial automation systems. Its compact M8 threaded housing and shielded sensing design make it suitable for installations where mounting space is limited while maintaining stable detection performance. The sensor belongs to the E2E NEXT family, which is widely used in machine building, material handling, packaging, and assembly equipment.

Technical Overview

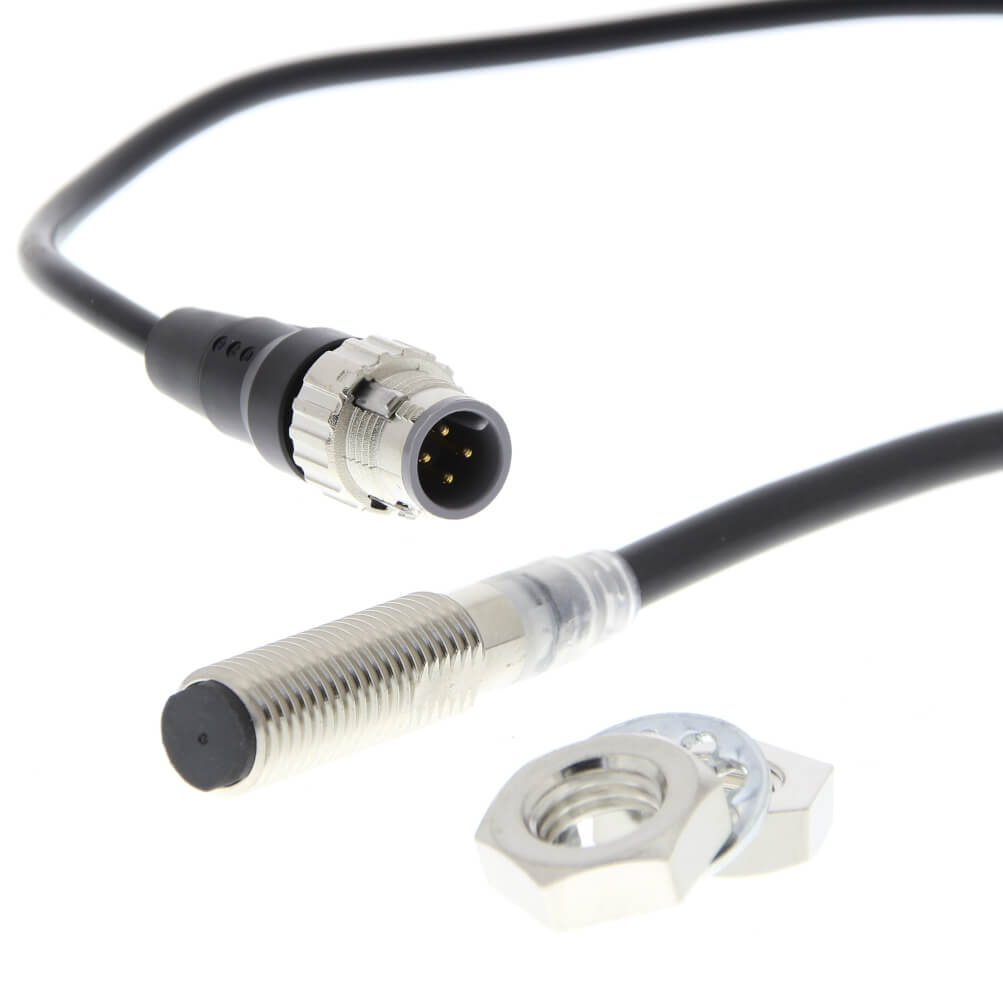

The Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor detects ferrous metal objects at a sensing distance of 4 mm. It features a DC three-wire configuration with an NPN normally open output. The sensor is equipped with a 0.3-meter pigtail cable terminated with an M12 Smartclick connector, simplifying installation and maintenance procedures.

The nickel-plated brass housing provides mechanical durability in demanding industrial environments. With IP67, IP67G, and IP69K protection ratings, the sensor can withstand exposure to water, dust, and cleaning processes commonly found in manufacturing facilities.

Operating Principle

An inductive proximity sensor generates a high-frequency electromagnetic field at its sensing face. When a conductive metal target enters this field, eddy currents are induced within the object. These currents absorb energy from the oscillator circuit inside the sensor.

The internal electronics continuously monitor this change. Once the predefined threshold is reached, the output switches state and sends a signal to a PLC, controller, relay, or monitoring device. This non-contact detection method eliminates mechanical wear and supports long operational life.

The Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor is optimized for reliable detection of ferrous materials while maintaining consistent switching characteristics across varying operating conditions.

Typical Applications

• Part presence detection on assembly stations
• Metal component verification in automated production lines
• Machine position monitoring
• Conveyor system object detection
• Indexing and positioning mechanisms
• Packaging equipment monitoring
• Robotic handling systems
• Transfer and sorting equipment

Industrial Use Cases

In automotive manufacturing, the sensor can verify the presence of steel brackets, fasteners, and machined components before subsequent assembly operations begin.

Within packaging systems, it may monitor actuator positions and detect metallic machine parts during repetitive production cycles.

In material handling installations, the sensor can be integrated into conveyor systems to confirm pallet carrier positions or monitor mechanical stops.

Food and beverage equipment manufacturers often use sealed inductive sensors in washdown-prone environments where resistance to moisture and cleaning agents is required.

Advantages of the Sensor Design

• Compact M8 housing for restricted mounting spaces
• 4 mm sensing distance for reliable metal detection
• Shielded construction for controlled sensing zones
• NPN NO output compatible with many industrial control systems
• High environmental protection ratings
• Durable nickel-plated brass housing
• Convenient Smartclick connector interface
• Suitable for demanding automation environments

Sector-Specific Examples

Automotive Production

Used for detecting metal fixtures, positioning jigs, and component carriers during assembly operations.

Machine Tool Industry

Monitors moving machine elements and confirms positioning of metallic workpieces.

Packaging Equipment

Provides position feedback for mechanical assemblies and transfer mechanisms.

Warehouse Automation

Detects metallic carrier systems and verifies actuator positions in transport equipment.

Omron E2E-X4C18-M1TJ 0.3M Selection Considerations

When selecting an inductive proximity sensor, engineers should verify the required sensing distance, output configuration, environmental protection rating, mounting conditions, and electrical interface requirements.

The Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor is particularly suitable when a compact M8 form factor, shielded sensing field, and connector-based installation are required.

Omron E2E-X4C18-M1TJ 0.3M Engineers evaluating alternative sensing solutions can also review Omron sensor products for additional configurations and sensing technologies.

Frequently Asked Questions

1. What type of sensor is the Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor?

It is a shielded inductive proximity sensor designed to detect metallic objects without physical contact.

2. What is the sensing distance?

The rated sensing distance is 4 mm.

3. What output configuration does it provide?

The sensor uses an NPN normally open (NO) output.

4. Which supply voltage is required?

It operates from a DC supply ranging from 10 to 30 VDC.

5. Can it be used in washdown environments?

Yes. Its IP67, IP67G, and IP69K ratings support operation in demanding industrial environments.

6. What materials can be detected?

The sensor is primarily designed for detecting ferrous metallic targets.

7. Where is the Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor commonly installed?

It is commonly installed on assembly machinery, conveyors, packaging systems, and automated production equipment.

8. What connection method is used?

The device features a 0.3-meter pigtail cable with an M12 Smartclick connector.

9. Why is a shielded sensing design beneficial?

A shielded design helps create a controlled sensing field and allows installation closer to surrounding metal structures.

10. Is the Omron E2E-X4C18-M1TJ 0.3M Inductive Proximity Sensor suitable for machine builders?

Yes. Its compact dimensions, industrial protection ratings, and standardized connection interface make it suitable for machine-building applications.
