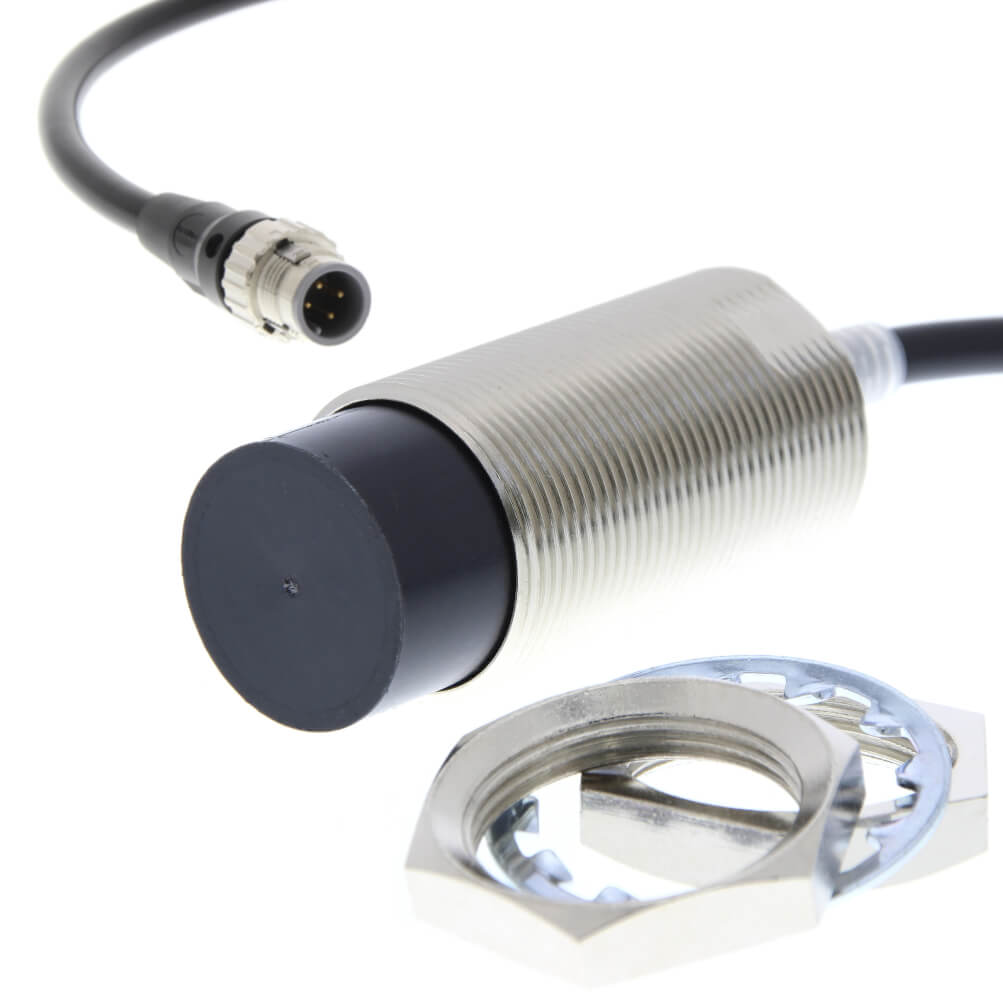

Omron E2E-X40MD2L30-M1TGJ 0.3M Inductive Proximity Sensor

The Omron E2E-X40MD2L30-M1TGJ 0.3M Inductive Proximity Sensor is designed for industrial applications requiring reliable metal detection together with quick-connect installation. Unlike conventional fixed-cable models, this version incorporates a 0.3-meter pigtail cable and M12 Smartclick connector interface, allowing simplified maintenance and faster sensor replacement.

Within modern automation systems, sensors often operate in locations where accessibility and downtime management are critical. The Omron E2E-X40MD2L30-M1TGJ 0.3M Inductive Proximity Sensor supports these requirements by combining long-range detection performance with a connectorized installation concept. :contentReference[oaicite:0]{index=0}

Technical Description

This sensor belongs to the Omron E2E NEXT family of inductive proximity sensors. It features a cylindrical M30 nickel-plated brass housing designed for non-flush mounting applications. The sensing distance is rated at 40 mm, enabling detection of metallic targets from a relatively large operating range. :contentReference[oaicite:1]{index=1}

The device uses a DC 2-wire normally closed output configuration and is equipped with an M12 pigtail Smartclick connector. This connection method provides greater flexibility when integrating sensors into modular machine designs and automated production equipment. :contentReference[oaicite:2]{index=2}

Working Principle

The sensor generates an electromagnetic field at its sensing surface. When a metallic object enters this field, eddy currents are induced within the target. These currents modify the oscillation characteristics of the sensor’s internal circuit.

The electronics continuously monitor these changes and switch the output state when the target reaches the defined sensing range. Since detection occurs without physical contact, mechanical wear is eliminated and long-term stability can be maintained.

This sensing principle is widely used in industrial automation where continuous operation and consistent object detection are required.

Applications

• Automated assembly equipment
• Machine tool positioning systems
• Material transfer conveyors
• Robotic handling cells
• Industrial transport mechanisms
• Packaging machinery
• Warehouse automation systems
• Production line monitoring

The connectorized design is particularly useful in installations where maintenance teams require rapid sensor replacement without rewiring the entire system.

Industrial Applications

Robotic Manufacturing Cells

The sensor can verify fixture positions, metallic component presence, and machine movements throughout automated production sequences.

Automated Storage Systems

Used for position verification of steel carriers, lifting mechanisms, and transfer units operating inside warehouse environments.

Packaging Automation

Supports detection of metallic machine elements and transport mechanisms that require continuous monitoring.

Machine Building Industry

Allows machine manufacturers to standardize sensor replacement procedures through M12 connector technology.

Omron E2E-X40MD2L30-M1TGJ 0.3M Advantages

• 40 mm sensing distance
• M12 Smartclick connector compatibility
• Compact 0.3 m pigtail cable design
• Durable nickel-plated brass housing
• Non-contact sensing technology
• Suitable for harsh industrial environments
• Reduced maintenance complexity
• IP67, IP67G, and IP69K protection ratings

Engineers frequently select the Omron E2E-X40MD2L30-M1TGJ 0.3M Inductive Proximity Sensor when equipment architecture requires modular wiring solutions and simplified service procedures.

Sector-Specific Usage Examples

• Detecting pallet positions in logistics centers
• Monitoring actuator movement in industrial machinery
• Verifying metal carrier alignment in assembly lines
• Position sensing within robotic transfer stations
• Detecting machine stop positions in manufacturing cells
• Monitoring indexing systems in packaging facilities

Sensor Selection Considerations

• Required sensing distance
• Target material properties
• Connector compatibility requirements
• Environmental protection needs
• Machine maintenance strategy
• Control system architecture
• Available mounting space

Omron E2E-X40MD2L30-M1TGJ 0.3M Additional sensing technologies and related products can be explored through Omron sensor products when designing larger automation systems.

Frequently Asked Questions

What is the sensing distance of this sensor?

The rated sensing distance is 40 mm.

What type of connector does the sensor use?

It uses an M12 pigtail Smartclick connector.

What output configuration is provided?

The sensor features a DC 2-wire normally closed output.

Is the sensor suitable for washdown environments?

Yes. The sensor carries IP67, IP67G, and IP69K protection ratings.

Can it detect non-metallic materials?

No. Inductive sensors are designed specifically for metallic target detection.

What is the housing size?

The sensor uses an M30 threaded cylindrical housing.

Why is the 0.3 m pigtail connection useful?

It enables fast connection to M12 cordsets and simplifies maintenance procedures.

Where is the Omron E2E-X40MD2L30-M1TGJ 0.3M Inductive Proximity Sensor commonly used?

It is commonly used in conveyors, robotic cells, machine tools, packaging systems, and warehouse automation equipment.
