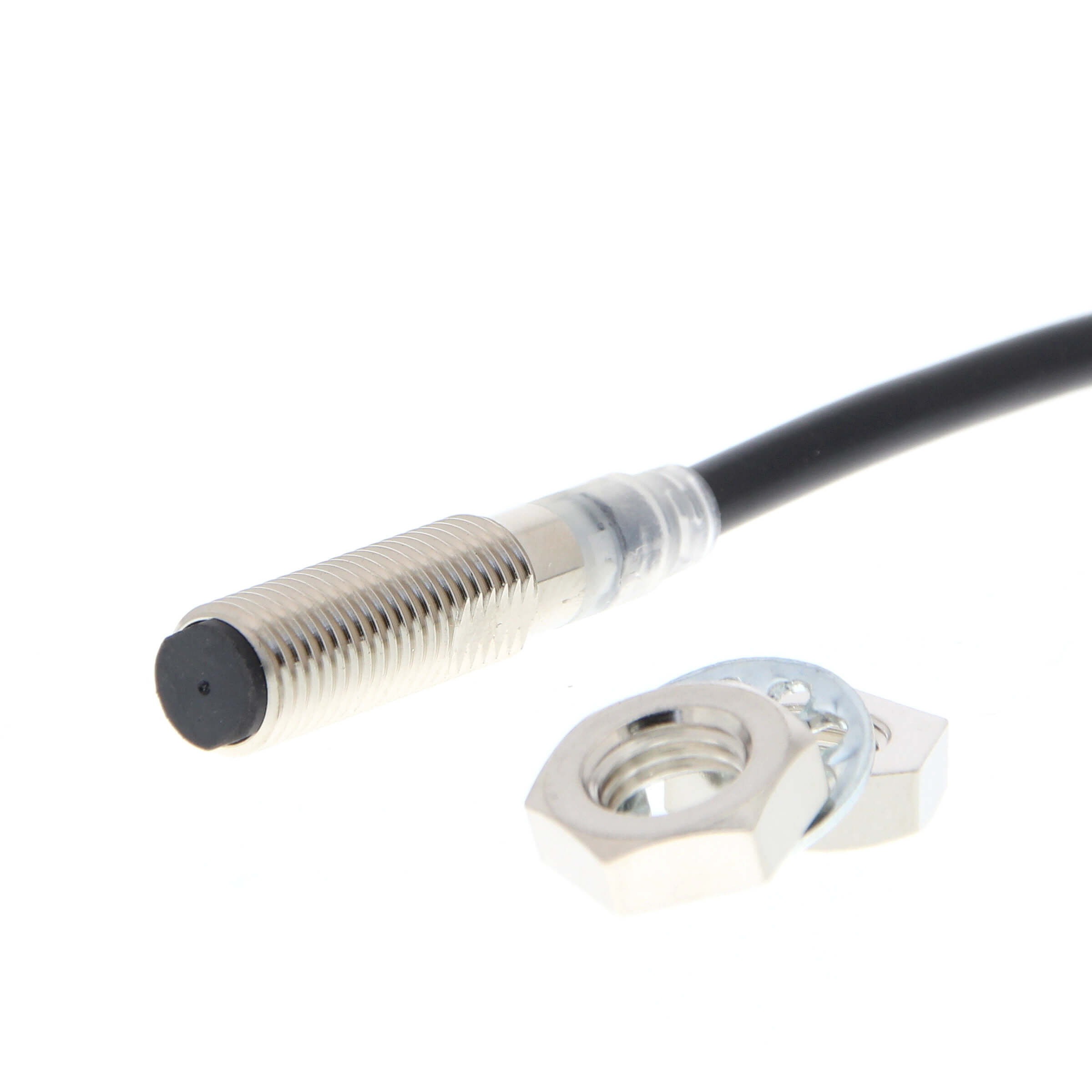

Omron E2E-X3D18-T 5M Inductive Proximity Sensor

Technical Description

The Omron E2E-X3D18-T 5M Inductive Proximity Sensor is an M8 cylindrical proximity sensor designed for non-contact metal detection in industrial automation systems. It belongs to the E2E NEXT series and provides a 3 mm sensing distance in a quasi-flush mounting format. The sensor uses a DC 2-wire output, normally open operation, and no-polarity wiring, which simplifies installation in many control panel and machine wiring layouts.

The Omron E2E-X3D18-T 5M Inductive Proximity Sensor is supplied with a 5 m oil-resistant PVC cable. This cable length is useful for equipment where the sensing point is located away from the terminal block, junction box, or controller input module. Its nickel-plated brass housing and IP67, IP67G, and IP69K protection ratings support use in environments where water, dust, cutting oil, coolant, and washdown conditions may be present.

Working Principle

Inductive proximity sensors operate by generating an electromagnetic field from the sensing face. When a metallic target enters this field, eddy currents are produced inside the target material. These eddy currents absorb energy from the oscillation circuit, and the sensor electronics detect the resulting change.

In this model, the normally open output changes state when a suitable metal object reaches the sensing area. Since detection occurs without mechanical contact, the sensor can be used in repetitive machine cycles without actuator wear, spring fatigue, or contact bounce associated with mechanical limit switches.

Omron E2E-X3D18-T 5M Usage Areas

• Metal part presence detection
• Machine reference position monitoring
• Actuator stroke confirmation
• Fixture and clamp position sensing
• Conveyor carrier detection
• Automated assembly line feedback
• Compact machine tooling applications

Industrial Applications

In assembly machinery, this sensor can confirm whether a metal component has reached the correct loading position before a pneumatic or servo-driven process begins. In material handling systems, it may detect metallic pallets, stops, or carriers passing through a transfer point. In machine tool environments, it can monitor metal slides or clamps while operating near oil and coolant exposure.

The 5 m cable version is especially relevant in machines where sensor wiring must be routed through panels, cable ducts, or protective conduits before reaching the control input. This makes the device practical for distributed automation layouts where sensor positions are not directly beside the electrical cabinet.

Omron E2E-X3D18-T 5M Advantages

• Compact M8 threaded body for restricted installation points
• 3 mm sensing distance for short-range metal detection
• DC 2-wire output for straightforward controller integration
• No-polarity wiring for simplified installation
• Oil-resistant PVC cable for industrial machine environments
• 5 m cable length for extended wiring paths
• IP67, IP67G, and IP69K protection ratings
• Non-contact operation that reduces mechanical wear

Sector-Based Use Examples

In automotive component production, the sensor may verify whether a metal bracket or bushing is seated before pressing or fastening. In packaging machinery, it can detect a metal guide, shaft, or indexing component used in product transfer. In general machine building, the sensor may be installed as a compact feedback device for linear slides, rotary stops, or locating pins.

In metalworking systems, the oil-resistant cable and protected housing are useful where cutting fluid and metallic dust are part of the operating environment. In automated inspection equipment, the Omron E2E-X3D18-T 5M Inductive Proximity Sensor can confirm the presence of a metal reference piece before measurement or sorting begins.

Selection Considerations

Before selecting this sensor, engineers should confirm that the 3 mm sensing distance is suitable for the target size, material, and approach direction. Mounting conditions must also be reviewed because surrounding metal can influence inductive sensor performance. The quasi-flush structure helps with installation in metal brackets, but spacing and tightening conditions should still follow manufacturer guidance.

The DC 2-wire output and normally open operation must be compatible with the input circuit of the PLC, remote I/O module, relay interface, or machine controller. The 5 m cable should be selected when the sensor position requires longer routing than standard short cable versions. For related sensing options, engineers can review Omron sensor products within broader automation system planning.

Omron E2E-X3D18-T 5M Frequently Asked Questions

What does the Omron E2E-X3D18-T 5M Inductive Proximity Sensor detect?

It detects metallic targets using inductive sensing technology.

What is the rated sensing distance?

The rated sensing distance is 3 mm.

What is the output type?

The sensor uses a DC 2-wire output.

What does no polarity mean?

No polarity means the wiring is not dependent on a fixed positive and negative connection orientation for the sensor leads.

Is this sensor normally open or normally closed?

This model has normally open operation.

What is the cable length?

The sensor is supplied with a 5 m cable.

Can it be used in oily machine environments?

Yes, the product data identifies an oil-resistant PVC cable and industrial protection ratings.

Does this model support IO-Link?

No, the product data lists the IO-Link function as false.

Where is the Omron E2E-X3D18-T 5M Inductive Proximity Sensor commonly installed?

It is commonly installed in assembly machines, conveyors, metalworking equipment, automated fixtures, and compact machine position sensing points.
