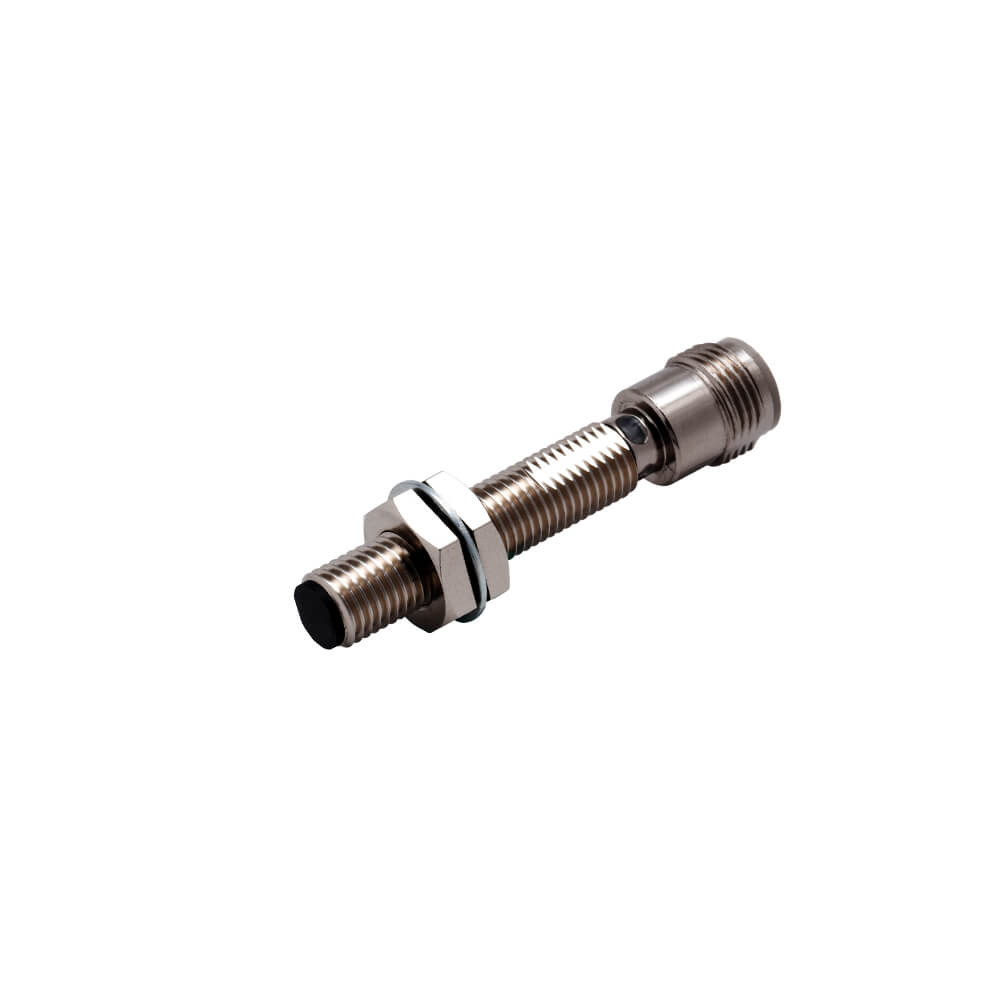

Omron E2E-X3B2L8-M1 Inductive Proximity Sensor

Modern industrial control systems depend on accurate feedback devices to ensure reliable machine operation and process consistency. The Omron E2E-X3B2L8-M1 Inductive Proximity Sensor is designed to provide stable and repeatable detection of metallic objects without physical contact, making it suitable for a broad range of automation tasks.

As a member of the E2E NEXT product family, the Omron E2E-X3B2L8-M1 Inductive Proximity Sensor combines compact dimensions, robust environmental protection, and dependable switching performance. The sensor utilizes an M12 connector interface that supports efficient installation and maintenance within modular automation systems.

Technical Description

The Omron E2E-X3B2L8-M1 Inductive Proximity Sensor is a shielded inductive sensor engineered to detect metallic targets through electromagnetic induction. Its compact M8 threaded housing enables integration into machinery where installation space is restricted while maintaining reliable sensing characteristics.

The sensor features a PNP normally open output configuration and operates from a 10 to 30 VDC power supply. The M12 connector provides a secure and standardized connection method commonly used throughout industrial automation environments.

The durable nickel-plated brass housing contributes to mechanical robustness and long-term operation in applications exposed to vibration, dust, moisture, and industrial contaminants.

Working Principle

The sensor generates a high-frequency electromagnetic field at the sensing surface through an internal oscillator circuit. When a metallic object enters this field, eddy currents are induced within the target material.

The formation of these eddy currents causes energy loss within the oscillation circuit, reducing the amplitude of the electromagnetic field. Internal electronics continuously monitor this change and switch the output once the detection threshold is reached.

This non-contact operating principle eliminates mechanical wear associated with traditional limit switches and supports reliable operation over extended service intervals.

Areas of Application

• Automated production equipment
• Machine tool systems
• Industrial robotics
• Conveyor and transfer systems
• Packaging machinery
• Assembly automation
• Material handling equipment
• Position monitoring systems

The compact design and connector-based installation make the sensor suitable for machine builders seeking efficient integration into modern automation architectures.

Industrial Applications

Automotive Manufacturing

Automotive production facilities frequently use inductive sensors to verify the presence of metallic components, monitor fixture positions, and support automated assembly processes.

Electronics Assembly Equipment

Assembly systems for electronic devices often require compact sensing solutions capable of detecting metallic carriers, tooling fixtures, and positioning mechanisms within confined spaces.

Packaging and Processing Machinery

Packaging lines utilize proximity sensors to monitor machine positions, metallic guides, and transfer mechanisms while maintaining reliable operation throughout production cycles.

Material Flow Systems

Automated handling systems employ inductive sensors to detect carriers, pallets, and machine elements as products move between workstations.

Advantages

• Reliable non-contact metal detection
• Compact M8 threaded housing
• PNP normally open output configuration
• M12 connector for simplified installation
• IP67 and IP69K environmental protection
• High switching frequency capability
• Durable nickel-plated brass construction
• Suitable for harsh industrial environments

The Omron E2E-X3B2L8-M1 Inductive Proximity Sensor can be integrated into numerous automation platforms requiring accurate detection of metallic machine components and moving equipment.

Omron E2E-X3B2L8-M1 For engineers evaluating related sensing technologies, additional Omron sensor products are available for applications requiring alternative sensing distances, housing sizes, and output configurations.

Sector-Specific Usage Examples

• Detecting metal workpiece presence before machining operations
• Monitoring indexing table positions in assembly systems
• Verifying pallet locations in automated warehouses
• Confirming robotic gripper positions during handling operations
• Detecting actuator movement in packaging machinery
• Monitoring metallic fixtures within production cells

Important Considerations When Selecting the Product

• Required sensing distance relative to target size
• Compatibility with PNP control inputs
• Available installation space
• Environmental protection requirements
• Connector and cable infrastructure
• Target material characteristics
• Required switching frequency
• Maintenance accessibility

Correct mounting practices, adequate installation clearances, and proper alignment with the target object contribute significantly to long-term sensing stability.

Omron E2E-X3B2L8-M1 Frequently Asked Questions

What type of sensor is the Omron E2E-X3B2L8-M1 Inductive Proximity Sensor?

It is a shielded inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The sensor provides a nominal sensing distance of 3 mm.

What output type is available?

The sensor features a PNP normally open output configuration.

What voltage range does the sensor support?

The operating voltage range is 10 to 30 VDC.

How is the sensor connected?

The device uses a standard M12 connector connection.

Can it be used in demanding industrial environments?

Yes. The IP67 and IP69K ratings provide protection against dust, moisture, and washdown conditions.

Is the Omron E2E-X3B2L8-M1 Inductive Proximity Sensor suitable for fast automation processes?

Yes. Its response frequency of 1 kHz supports many high-speed industrial applications.

What materials can be detected?

The sensor is intended for detecting metallic targets.

Where is the Omron E2E-X3B2L8-M1 Inductive Proximity Sensor commonly used?

It is widely used in robotics, assembly automation, packaging equipment, machine tools, and material handling systems.

What material is used for the housing?

The housing is manufactured from nickel-plated brass for durability and environmental resistance.
