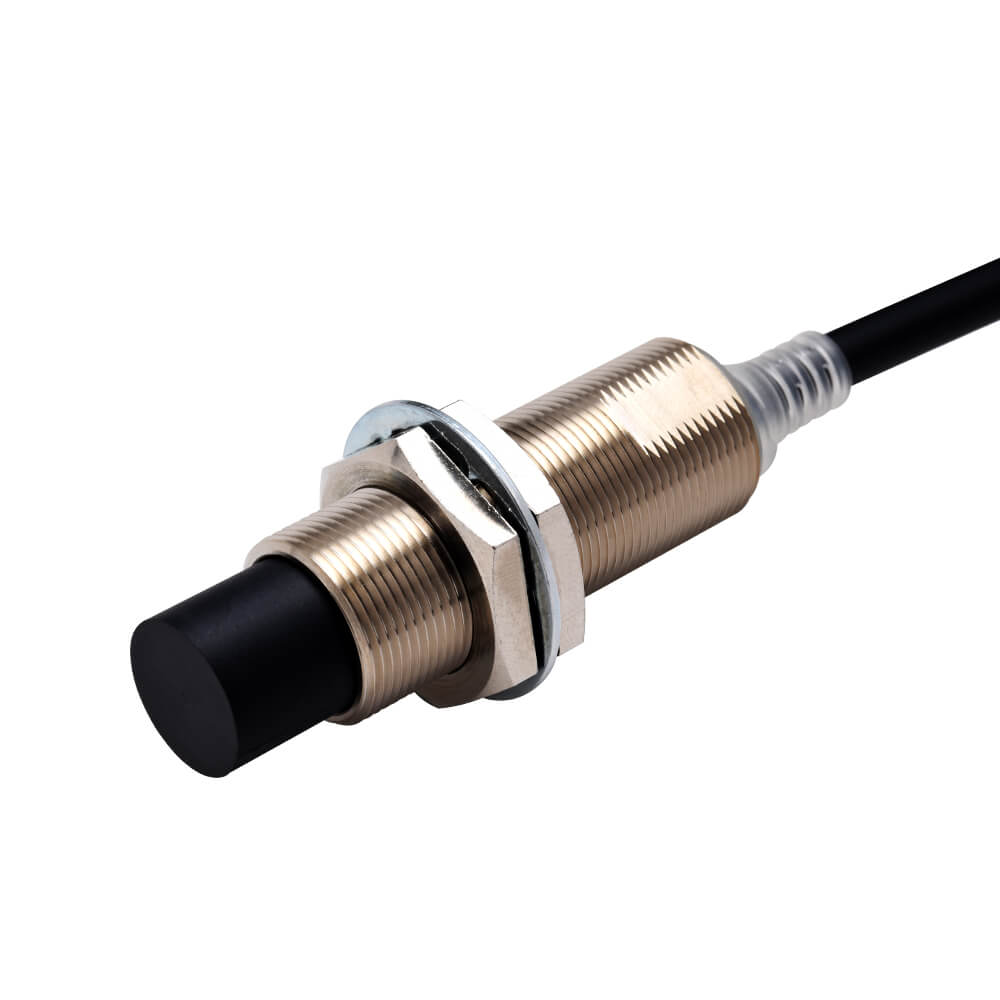

Omron E2E-X30MB1TL18 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E |
| Housing Size | M30 |
| Mounting Type | Non-Flush |
| Sensing Distance | 30 mm |
| Output Type | PNP |
| Output Operation | NO |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | Pre-wired Cable |
| Cable Length | 2 m |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 |
| Response Frequency | 100 Hz |
Technical Description
The Omron E2E-X30MB1TL18 2M Inductive Proximity Sensor is designed for long-range detection of metallic objects in industrial automation systems. Featuring a large M30 cylindrical housing and a sensing distance of 30 mm, the sensor supports applications where greater detection range is required compared to compact proximity sensors.
The Omron E2E-X30MB1TL18 2M Inductive Proximity Sensor uses non-contact inductive sensing technology to detect conductive metal targets. Its rugged construction and IP67 protection rating make it suitable for operation in demanding industrial environments.
Working Principle
The sensor generates an electromagnetic field around its sensing face. When a metallic object enters this field, eddy currents are induced within the target material. These currents affect the sensor oscillator, causing the output circuitry to switch.
The non-contact operating principle eliminates physical wear between the sensor and target while supporting consistent detection performance.
Usage Areas
- Heavy industrial machinery
- Conveyor automation systems
- Automated storage systems
- Material handling equipment
- Manufacturing lines
- Metal processing facilities
- Machine position monitoring
Industrial Applications
Conveyor Control Systems
Long sensing distance capabilities allow detection of larger metallic components moving through conveyor systems.
Mining and Bulk Material Handling
Industrial handling equipment can utilize the sensor to monitor gate positions, mechanical movement, and equipment status.
Manufacturing Equipment
The Omron E2E-X30MB1TL18 2M Inductive Proximity Sensor is frequently used for position confirmation of machine components and metal workpieces.
Industrial Automation Cells
Automation systems use the sensor for reliable metal detection within production and assembly environments.
Advantages
- Long 30 mm sensing distance
- Large M30 housing
- Non-contact sensing operation
- Durable metal construction
- Suitable for industrial environments
- Simple integration with PLC systems
- Reliable metallic object detection
Sector-Specific Examples
Metal fabrication facilities use the sensor to monitor large workpieces. Conveyor manufacturers integrate the device into transport systems. Automated warehouses employ the sensor for position verification of moving equipment and handling mechanisms.
Selection Considerations
When selecting the Omron E2E-X30MB1TL18 2M Inductive Proximity Sensor, engineers should evaluate target dimensions, installation space, electrical compatibility, and environmental conditions. The non-flush mounting requirement should also be considered during system design.
For additional sensing solutions, visit More Omron sensor solutions.
Frequently Asked Questions
1. What is the sensing distance?
The sensor provides a 30 mm sensing distance.
2. What output type is available?
The device uses a PNP normally open output.
3. What housing size does the sensor use?
The sensor is built in an M30 cylindrical housing.
4. What supply voltage is required?
The operating range is 10 to 30 VDC.
5. Is the sensor suitable for industrial environments?
Yes. It features a durable metal housing and IP67 protection rating.
6. What type of objects can be detected?
The sensor is designed for metallic target detection.
7. Can it be connected directly to PLC inputs?
Yes, provided the PLC input specifications are compatible with the sensor output.
8. Where is the Omron E2E-X30MB1TL18 2M Inductive Proximity Sensor commonly used?
It is commonly installed in conveyors, manufacturing equipment, material handling systems, and industrial automation machinery.
