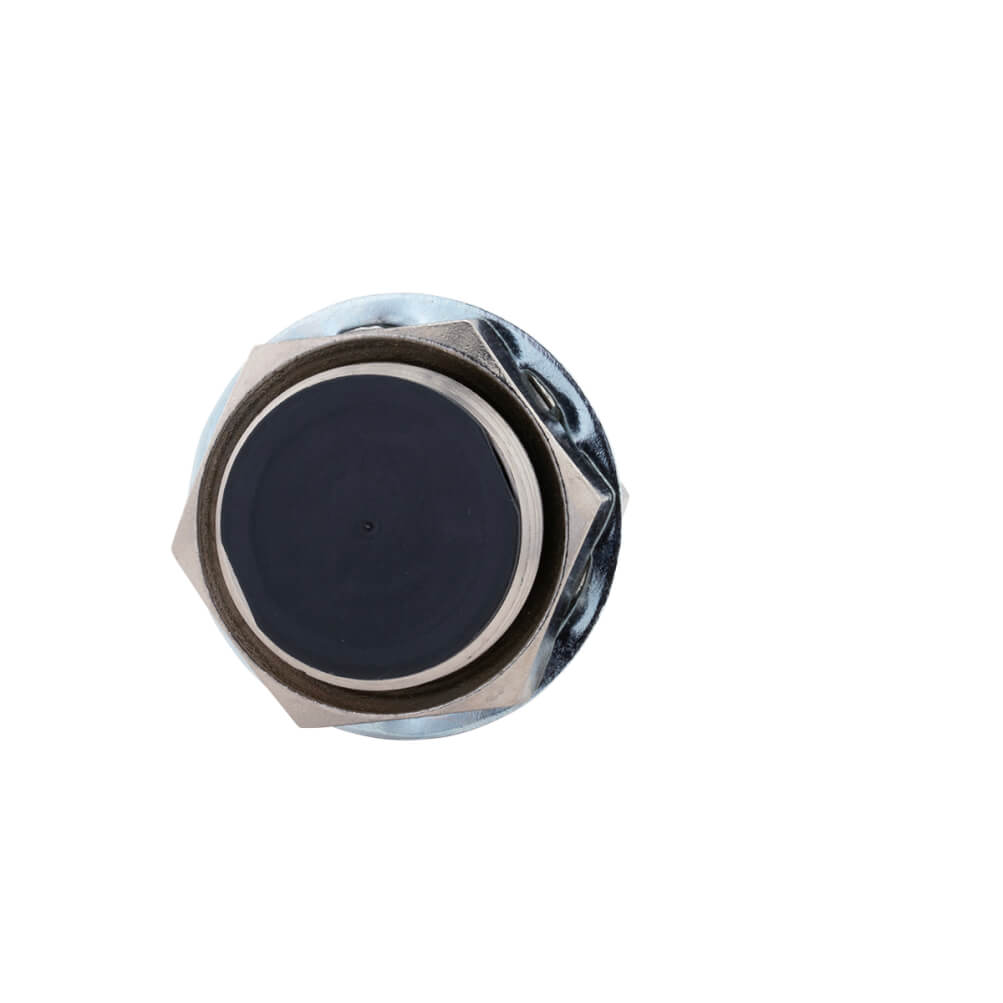

Omron E2E-X22B230-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M30 |
| Sensing Distance | 22 mm |
| Mounting Type | Quasi-flush |
| Output Type | PNP |
| Output Function | Normally Closed (NC) |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 200 Hz |
| Connection Type | M12 Connector |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Operating Temperature | -25°C to +70°C |
| Body Length | 60.3 mm |
Technical Description
The Omron E2E-X22B230-M1 Inductive Proximity Sensor is designed for reliable non-contact detection of metallic targets in industrial automation systems. This model combines the sensing performance of the E2E NEXT platform with the installation flexibility provided by an M12 connector interface.
The connector-based design simplifies sensor replacement and maintenance while maintaining the environmental protection characteristics required in demanding production environments.
Operating Principle
The sensing surface continuously generates a high-frequency electromagnetic field. When a conductive metal object enters the sensing range, eddy currents are induced within the target material. These currents influence the oscillator circuit and trigger a change in the output state.
This detection method allows the sensor to operate without physical contact, reducing wear and supporting long-term operational stability.
Technical Characteristics
- 22 mm sensing distance
- M30 threaded cylindrical housing
- PNP normally closed output
- M12 connector connection
- Shielded sensing configuration
- IP67, IP67G, and IP69K protection ratings
- Nickel-plated brass housing
- Industrial operating temperature range
Typical Usage Areas
The Omron E2E-X22B230-M1 Inductive Proximity Sensor is suitable for automation systems that require quick sensor replacement, modular wiring solutions, and reliable metal object detection.
- Automated production equipment
- Packaging lines
- Machine building projects
- Robotic assembly stations
- Industrial conveyors
- Material handling systems
- Position monitoring applications
- Transfer and indexing mechanisms
Additional sensor technologies and related products can be explored through Omron sensor products.
Industrial Applications
Automated Assembly Lines
The sensor can verify the presence and position of metallic components before automated assembly operations begin.
Machine Construction
Equipment manufacturers often utilize connectorized sensors to simplify wiring and reduce maintenance downtime.
Material Transfer Systems
The Omron E2E-X22B230-M1 Inductive Proximity Sensor can monitor pallets, fixtures, and metal carriers moving through automated processes.
Production Monitoring
Industrial machinery frequently relies on proximity sensing to confirm actuator positions and sequence transitions.
Advantages
- Quick replacement through M12 connector connection
- Reduced installation complexity
- Reliable non-contact sensing
- High environmental protection ratings
- Resistance to industrial contaminants
- Stable sensing characteristics
- Suitable for continuous machine operation
Selection Considerations
Engineers selecting the Omron E2E-X22B230-M1 Inductive Proximity Sensor should verify connector compatibility, sensing distance requirements, control system input specifications, and installation space constraints.
The shielded sensing design helps maintain predictable detection performance when the sensor is installed near machine frames and metallic structures.
Frequently Asked Questions
What is the sensing distance of the sensor?
The rated sensing distance is 22 mm.
Which connection method is used?
The sensor is equipped with an M12 industrial connector.
What output type does it provide?
It uses a PNP normally closed output configuration.
What supply voltage is required?
The operating voltage range is 10 to 30 VDC.
Can the sensor be used in washdown environments?
Its IP67, IP67G, and IP69K ratings support use in demanding industrial environments.
Is the sensor suitable for metal detection only?
Yes. The sensing principle is intended for metallic targets.
Why choose an M12 connector version?
Connectorized designs can simplify maintenance and reduce replacement time during service operations.
Where is the Omron E2E-X22B230-M1 Inductive Proximity Sensor commonly installed?
It is commonly used in manufacturing equipment, conveyors, robotic systems, packaging machinery, and machine-building applications.
