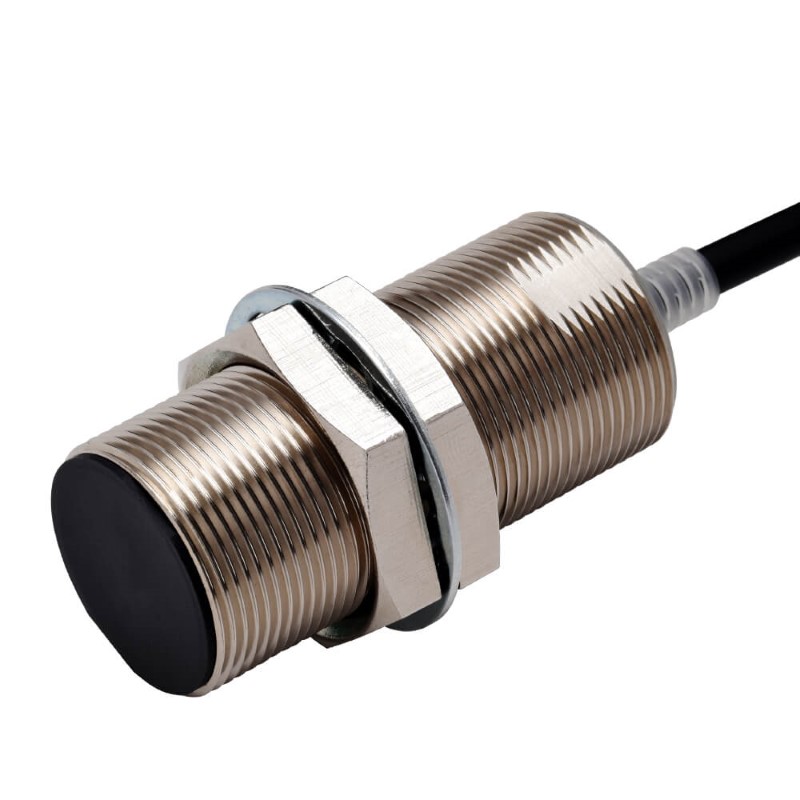

Omron E2E-X22B1TL30 2M Inductive Proximity Sensor

Technical Description

The Omron E2E-X22B1TL30 2M Inductive Proximity Sensor is designed for industrial metal detection tasks that require stable operation under demanding environmental conditions. Built within the E2E NEXT product family, the sensor combines an extended sensing distance with durable construction suitable for automated manufacturing systems.

The Omron E2E-X22B1TL30 2M Inductive Proximity Sensor utilizes a shielded M30 threaded housing that enables installation close to surrounding metal structures. Its 22 mm sensing range supports reliable object detection while maintaining consistent switching performance across repetitive production cycles.

Working Principle

The sensor operates using an electromagnetic oscillation field generated at the sensing surface. When a metallic object enters this field, induced eddy currents alter the oscillator characteristics. The internal circuit detects these changes and activates the NPN normally open output.

Because detection occurs without physical contact, the sensing mechanism avoids mechanical wear and supports long operational life in continuous-duty applications. This principle is widely used throughout industrial automation systems where dependable position monitoring is required.

Design Characteristics

Extended Sensing Performance

A nominal sensing distance of 22 mm provides additional installation flexibility compared with shorter-range sensors. This can simplify machine design while maintaining accurate metal detection.

Industrial Durability

The nickel-plated brass housing is designed to withstand vibration, mechanical stress, and industrial contaminants commonly encountered in production facilities.

Environmental Resistance

The sensor is rated IP67, IP67G, and IP69K, supporting operation in environments exposed to water spray, cleaning procedures, oil mist, and airborne particles.

Applications and Usage Areas

• Production line automation
• Metal component detection
• Conveyor positioning systems
• Industrial assembly equipment
• Packaging machinery
• Machine tool monitoring
• Automated transfer systems
• Material handling equipment

Additional sensing technologies can be explored through Omron sensor products for broader automation requirements.

Industrial Applications

In packaging facilities, the sensor can monitor metal guide assemblies and transfer mechanisms. In machine-building projects, it may be integrated into moving equipment to verify actuator positions and machine status conditions.

Metal fabrication operations often utilize inductive sensors to confirm workpiece presence before cutting, bending, or drilling procedures. In warehouse automation, the sensor can support positioning functions for transport carts and storage handling equipment.

Advantages

• Long sensing distance for M30 housing size
• Reliable NPN output operation
• Suitable for harsh industrial environments
• Resistance to contamination and washdown conditions
• Reduced maintenance compared to mechanical switches
• Stable sensing performance
• Compact cylindrical design
• Flexible installation options

Omron E2E-X22B1TL30 2M Sector-Specific Usage Examples

Packaging Industry

Detects metal machine components and transport carriers during automated packaging operations.

Material Handling Systems

Monitors positioning of transfer devices, lifters, and conveyor modules.

Industrial Machinery

Provides feedback signals for moving machine assemblies and automated equipment.

Metal Processing Facilities

Verifies workpiece arrival before manufacturing processes begin.

Factors to Consider During Selection

When selecting an inductive proximity sensor, it is important to evaluate sensing distance, mounting style, output configuration, electrical compatibility, and environmental exposure. Application-specific requirements such as cable routing and installation space should also be reviewed.

The Omron E2E-X22B1TL30 2M Inductive Proximity Sensor is suitable for applications requiring NPN output operation, extended sensing capability, and reliable performance within industrial automation systems.

Omron E2E-X22B1TL30 2M Frequently Asked Questions

1. What type of output does this sensor provide?

The sensor provides an NPN normally open output configuration.

2. What is the sensing distance?

The nominal sensing distance is 22 mm.

3. Which materials can be detected?

The sensor is designed for conductive metallic targets.

4. Is the housing shielded?

Yes, the sensor features a shielded construction suitable for flush-style mounting applications.

5. What protection ratings are available?

The device supports IP67, IP67G, and IP69K environmental protection.

6. What cable length is supplied?

The sensor includes a factory-installed 2-meter cable.

7. Can the sensor be used in automated machinery?

Yes, it is commonly integrated into industrial automation, material handling, and machine control systems.

8. What is the primary purpose of this sensor?

Its primary purpose is reliable non-contact detection of metallic objects within industrial applications.
