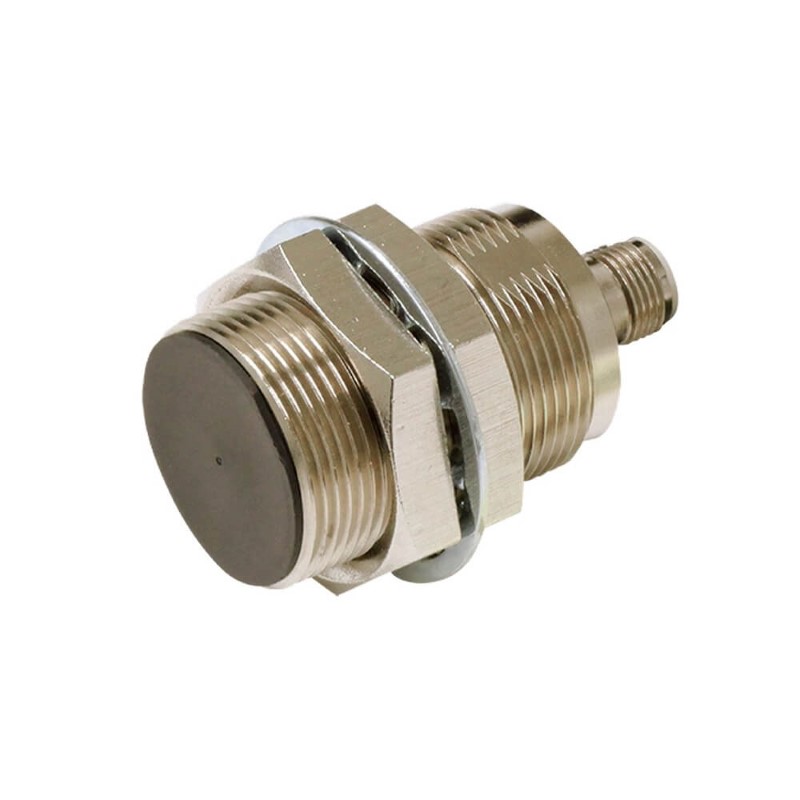

Omron E2E-X22B1T30-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2E NEXT |
| Sensor Type | Inductive Proximity Sensor |
| Housing Diameter | M30 |
| Mounting Type | Shielded (Flush) |
| Sensing Distance | 22 mm |
| Output Type | DC 2-Wire |
| Output Operation | NO (Normally Open) |
| Connection Method | M12 Connector |
| Connector Size | M12 |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Operating Principle | Inductive Metal Detection |
| Series Family | E2E NEXT |
Technical Description
The Omron E2E-X22B1T30-M1 Inductive Proximity Sensor is developed for non-contact detection of metallic targets in industrial automation systems. Featuring a shielded M30 housing and M12 connector interface, this sensor provides a nominal sensing distance of 22 mm while supporting reliable operation in demanding production environments.
Unlike permanently wired sensor versions, the connectorized design simplifies installation, replacement, and maintenance procedures. The Omron E2E-X22B1T30-M1 Inductive Proximity Sensor is frequently selected for machinery where rapid sensor replacement and standardized cabling architectures are required.
Working Principle
The sensor generates a high-frequency electromagnetic field at its sensing surface. When a metallic object enters this field, eddy currents are induced within the target. These currents modify the oscillation characteristics of the sensor circuit and initiate a switching action at the output stage.
Since the detection process occurs without physical contact, the sensing surface experiences minimal wear. This operating method contributes to stable performance in applications involving repetitive motion, continuous production cycles, and automated positioning tasks.
Key Features
M12 Connector Interface
The integrated M12 connector supports quick installation and simplifies maintenance activities. Connectorized sensors are often preferred in facilities that utilize standardized field wiring systems.
Flush Mounting Capability
The shielded construction allows installation directly within metallic machine structures while maintaining predictable sensing characteristics.
Environmental Protection
The IP67, IP67G, and IP69K ratings support operation in environments exposed to dust, moisture, coolants, lubricants, and washdown procedures.
Application Areas
- Automated assembly equipment
- Industrial conveyor systems
- Machine tool automation
- Material handling equipment
- Packaging machinery
- Warehouse automation systems
- Transfer and indexing mechanisms
- Robotic production cells
Industrial Applications
In automated manufacturing systems, the sensor can verify the presence of metal fixtures before robotic operations begin. Machine builders frequently use connectorized sensors in modular equipment where maintenance efficiency and rapid replacement are important operational considerations.
Material handling systems may use the Omron E2E-X22B1T30-M1 Inductive Proximity Sensor to monitor the position of carriers, transfer units, and metallic machine elements. Packaging equipment can also utilize the sensor to confirm component positioning during automated production sequences.
Advantages
- 22 mm sensing distance
- M12 connector connection
- Flush mounting capability
- Durable M30 housing
- Non-contact metal detection
- High ingress protection ratings
- Suitable for industrial automation environments
- Simplified maintenance and replacement procedures
Considerations When Selecting the Sensor
Engineers should evaluate target size, mounting configuration, environmental conditions, connector compatibility, and PLC interface requirements during the selection process. The Normally Open output characteristic should also be reviewed to ensure compatibility with machine control logic.
For projects requiring additional sensing technologies and housing formats, engineers can explore Omron sensor products for alternative configurations.
Frequently Asked Questions
1. What is the sensing distance of this sensor?
The nominal sensing distance is 22 mm.
2. What type of objects can be detected?
The sensor is designed to detect metallic objects using inductive sensing technology.
3. What connection method is used?
The sensor uses an M12 connector interface.
4. Is the sensor suitable for flush mounting?
Yes. The shielded design supports flush installation within metallic mounting surfaces.
5. Where is the Omron E2E-X22B1T30-M1 Inductive Proximity Sensor commonly used?
It is commonly used in conveyors, robotic systems, machine tools, assembly equipment, and packaging machinery.
6. What protection ratings does the sensor provide?
The sensor is rated IP67, IP67G, and IP69K.
7. Does the sensor require physical contact with the target?
No. Detection occurs without direct contact through an electromagnetic field.
8. What material is used for the housing?
The housing is manufactured from nickel-plated brass.
9. Why choose a connectorized sensor?
Connectorized designs simplify installation, replacement, and maintenance while supporting standardized wiring practices.
10. How does the Omron E2E-X22B1T30-M1 Inductive Proximity Sensor support industrial automation?
It provides reliable metal detection for positioning, monitoring, and process verification tasks in automated systems.
