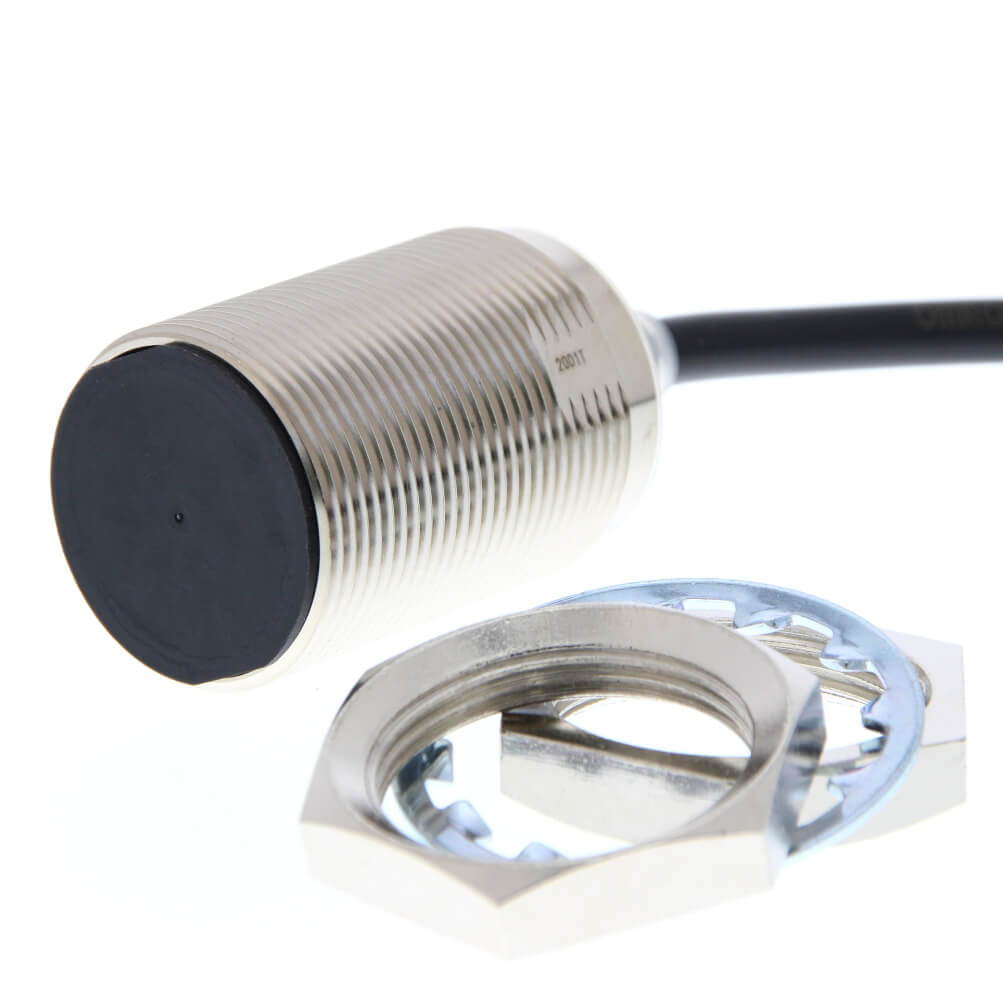

Omron E2E-X22B1T30 2M Inductive Proximity Sensor

Technical Description

The Omron E2E-X22B1T30 2M Inductive Proximity Sensor is designed for reliable detection of metallic objects in industrial automation systems. As part of the E2E NEXT product family, this sensor combines an M30 cylindrical housing with a 22 mm sensing distance, allowing stable operation in machine control, material handling, and production monitoring applications.

Its shielded construction enables flush mounting within metallic structures, making integration easier in compact machine designs. The Omron E2E-X22B1T30 2M Inductive Proximity Sensor is engineered for environments where mechanical durability, contamination resistance, and consistent switching performance are essential.

Working Principle

The sensor operates using an electromagnetic oscillation circuit located behind the sensing face. When a metallic target enters the sensing zone, eddy currents are generated within the target material. These currents influence the sensor’s oscillator and trigger a switching action at the output stage.

Because detection occurs without physical contact, the sensor experiences minimal mechanical wear. This characteristic supports long operational life in systems performing repetitive positioning, counting, or monitoring tasks.

Design Features

M30 Industrial Housing

The larger M30 body provides a robust installation platform and accommodates an extended sensing range. This design is often selected for machinery requiring greater detection distances than smaller sensor formats can provide.

Flush Mounting Capability

The shielded sensing structure allows the sensor to be mounted flush with surrounding metal surfaces without significantly affecting detection performance.

Environmental Protection

Protection ratings of IP67, IP67G, and IP69K enable deployment in industrial environments where dust, moisture, coolant exposure, and washdown procedures may occur.

Typical Applications

• Production line automation
• Metal object detection
• Automated transfer systems
• Machine tool monitoring
• Industrial conveyors
• Assembly equipment
• Automated storage systems
• Packaging machinery

Industrial Use Cases

In automated assembly facilities, the sensor can verify the arrival of metal carriers before the next manufacturing step begins. In machine tool applications, it may monitor the position of movable mechanical components, supporting repeatable machining processes.

Distribution centers frequently utilize proximity sensors in transfer systems where metallic transport fixtures must be tracked throughout automated handling operations. In packaging plants, the sensor can confirm machine positions and metal component presence during cycle execution.

Advantages

• 22 mm sensing distance
• Flush mounting compatibility
• M30 industrial housing
• High environmental protection ratings
• Non-contact sensing technology
• Suitable for demanding industrial installations
• Oil-resistant cable construction
• Reduced maintenance requirements

Selection Considerations

When selecting an inductive sensor, engineers should consider target dimensions, mounting conditions, environmental exposure, cable routing requirements, and PLC input compatibility. The Normally Open switching configuration should also be reviewed during system design.

Omron E2E-X22B1T30 2M For projects requiring alternative sensing distances or housing formats, additional Omron sensor solutions may be evaluated according to application requirements.

Omron E2E-X22B1T30 2M Frequently Asked Questions

1. What is the sensing distance of this sensor?

The nominal sensing distance is 22 mm.

2. What type of targets can be detected?

The sensor is designed for detecting metallic objects through inductive sensing technology.

3. Is the sensor suitable for flush mounting?

Yes. The shielded design supports flush installation in metallic mounting surfaces.

4. What output configuration does the sensor provide?

The sensor uses a DC 2-wire Normally Open output configuration.

5. Where is the Omron E2E-X22B1T30 2M Inductive Proximity Sensor typically used?

It is commonly used in conveyors, assembly machinery, machine tools, and automated material handling systems.

6. What environmental protection ratings are available?

The sensor is rated IP67, IP67G, and IP69K.

7. What housing material is used?

The housing is manufactured from nickel-plated brass.

8. Does the sensor require physical contact with the target?

No. Detection occurs without contact through an electromagnetic sensing field.

9. Why is the M30 housing selected in industrial applications?

The larger housing supports extended sensing performance and robust mechanical installation.

10. How does the Omron E2E-X22B1T30 2M Inductive Proximity Sensor improve automation processes?

It provides reliable metal detection for positioning, presence verification, and machine monitoring tasks within automated systems.
