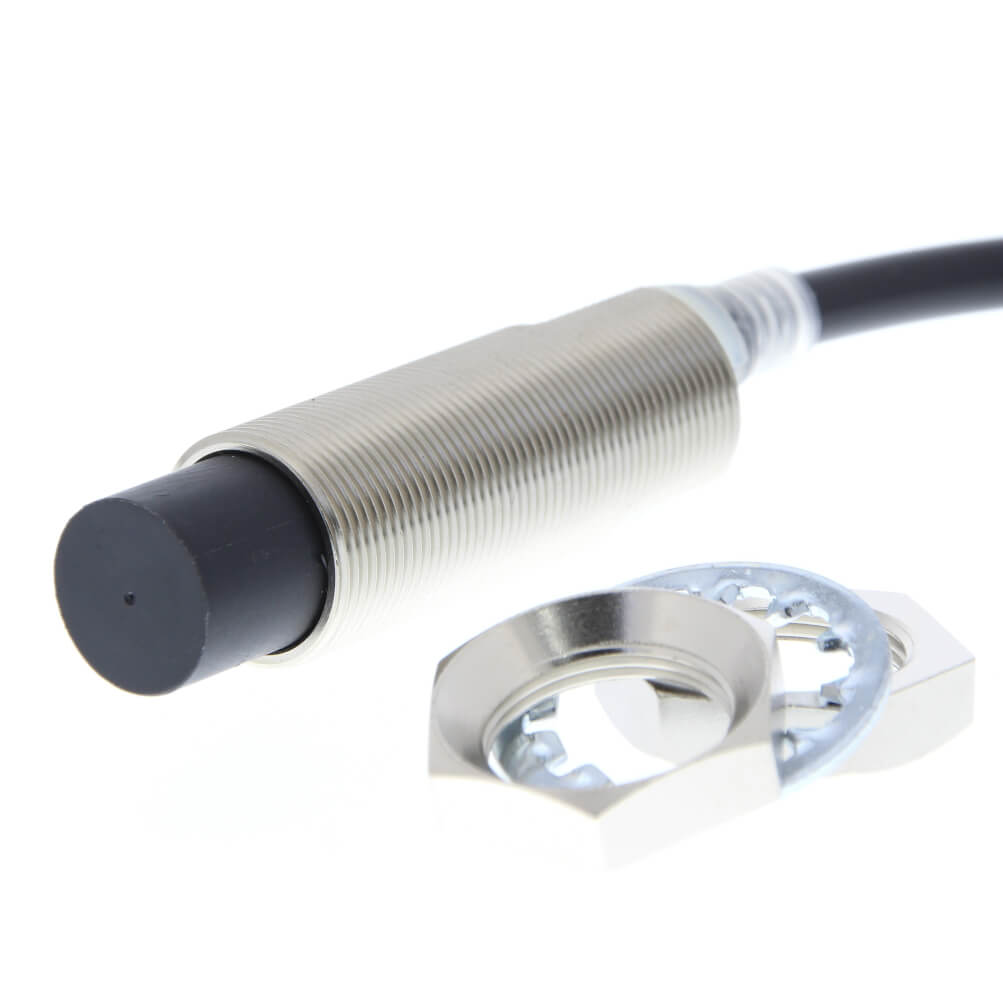

Omron E2E-X20MD2L18-T 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | Omron E2E NEXT |
| Housing Diameter | M18 |
| Mounting Style | Non-Flush |
| Sensing Distance | 20 mm |
| Output Configuration | 2-Wire DC |
| Operation Mode | Normally Closed (NC) |
| Cable Length | 2 m |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Thread Length | 47 mm |
| Connection Type | Pre-Wired Cable |
Modern industrial control systems often rely on continuous status monitoring to ensure machine availability and process accuracy. The Omron E2E-X20MD2L18-T 2M Inductive Proximity Sensor is developed for dependable metallic object detection and is particularly suited to applications where normally closed output logic is required.
Omron E2E-X20MD2L18-T 2M Technical Description
The Omron E2E-X20MD2L18-T 2M Inductive Proximity Sensor is a cylindrical M18 inductive sensor with a 20 mm sensing distance. Designed for non-flush mounting, it incorporates Omron’s E2E NEXT sensing technology and a durable nickel-plated brass housing.
The sensor features a 2-wire DC normally closed output and includes a permanently attached 2-meter cable for straightforward integration into industrial control systems.
Working Principle
The sensing circuit continuously generates an electromagnetic field. When a metallic object enters the detection zone, induced eddy currents affect the oscillator’s characteristics. Internal electronics evaluate this change and alter the output state.
Because detection occurs without physical contact, the sensing process remains highly reliable even during repetitive machine cycles.
Typical Usage Areas
- Machine status monitoring
- Position verification systems
- Automated assembly stations
- Industrial conveyor lines
- Metal handling systems
- Transfer equipment
- Production automation systems
Industrial Applications
- Automotive production facilities
- Food and beverage machinery
- Metal fabrication equipment
- Automated logistics centers
- Packaging machinery
- General manufacturing systems
The Omron E2E-X20MD2L18-T 2M Inductive Proximity Sensor is frequently selected when fail-safe logic strategies require normally closed switching behavior.
Omron E2E-X20MD2L18-T 2M Advantages
- Normally closed output operation
- Extended 20 mm sensing range
- Reliable metal object detection
- Robust industrial housing
- Excellent environmental protection
- Simple installation using integrated cable
- Low maintenance requirements
Omron E2E-X20MD2L18-T 2M Frequently Asked Questions
What sensing technology is used?
The sensor uses inductive sensing technology for metallic target detection.
What is the sensing distance?
The nominal sensing distance is 20 mm.
What output logic is provided?
The sensor uses a normally closed (NC) output configuration.
Can it be installed in wet environments?
Its IP67, IP67G, and IP69K protection ratings support operation in challenging industrial environments.
What cable length is included?
The model includes a 2-meter permanently attached cable.
Where is the Omron E2E-X20MD2L18-T 2M Inductive Proximity Sensor commonly applied?
It is commonly used in machine automation, logistics systems, and industrial production equipment.
Does the Omron E2E-X20MD2L18-T 2M Inductive Proximity Sensor detect non-metallic materials?
No. It is designed specifically for metallic target detection.
What material is used for the housing?
The housing is constructed from nickel-plated brass.
