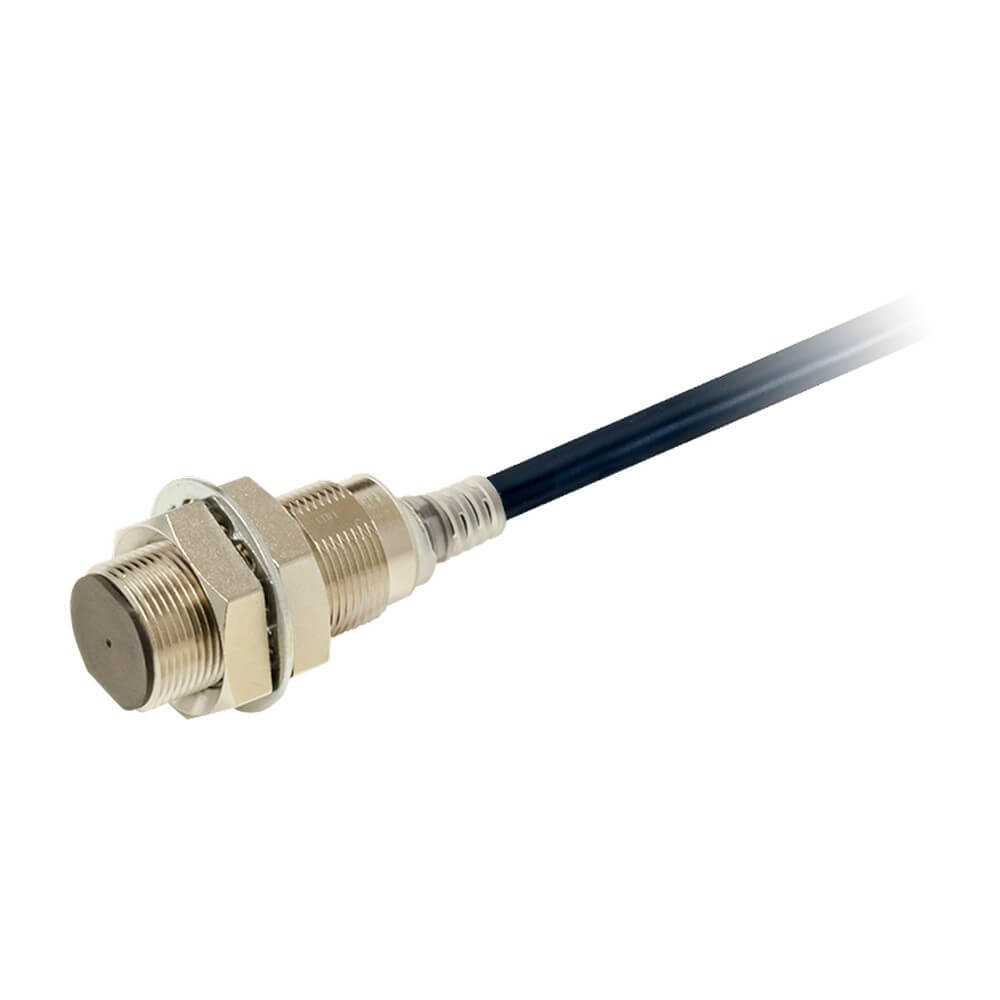

Omron E2E-X14B218 2M Inductive Proximity Sensor

Technical Description

The Omron E2E-X14B218 2M Inductive Proximity Sensor is designed for reliable non-contact detection of metallic objects in industrial automation systems. As part of the E2E NEXT series, the sensor combines extended sensing capability with durable mechanical construction, making it suitable for demanding production environments where stable detection performance is required.

Featuring an M18 threaded housing and an integrated 2-meter cable, this sensor supports flexible installation across a wide range of machinery and automation equipment. The 14 mm sensing distance enables detection of metallic targets without physical contact, helping reduce wear and maintenance requirements in automated processes.

The Omron E2E-X14B218 2M Inductive Proximity Sensor is commonly used in manufacturing systems where precise metal detection contributes to machine control, positioning verification, and operational reliability. Its robust housing and high ingress protection ratings allow operation in environments exposed to moisture, dust, and industrial contaminants.

Working Principle

The sensor operates through electromagnetic induction. An oscillating electromagnetic field is generated at the sensing surface. When a metallic object enters the detection zone, eddy currents are induced within the target material.

These eddy currents affect the oscillation characteristics of the sensor’s internal circuit. The electronics continuously monitor these changes and activate the output when the target reaches the defined sensing range.

Because the detection process does not require physical contact, the sensor can operate with minimal wear while maintaining stable switching performance over long operating periods.

Main Features

• 14 mm sensing distance for metallic targets
• M18 threaded cylindrical housing
• Integrated 2-meter cable connection
• PNP normally open output configuration
• Nickel-plated brass construction
• IP67 and IP69K environmental protection
• Suitable for industrial automation systems
• Non-contact sensing technology

Applications

The Omron E2E-X14B218 2M Inductive Proximity Sensor can be used wherever metallic object detection is required without physical contact. Its design supports integration into both standalone equipment and complex automated production systems.

• Automated assembly systems
• Material transfer equipment
• Industrial conveyor systems
• Machine tool applications
• Robotic production cells
• Packaging machinery
• Storage and retrieval systems
• Production monitoring equipment

Industrial Applications

Automotive Production

Automotive assembly facilities often use inductive sensors to confirm the presence of metal fixtures, carriers, and workpieces before automated operations begin.

Logistics and Material Handling

Warehouse automation systems can utilize the sensor to detect transport carriers, shuttle mechanisms, and metallic positioning components moving through conveyor networks.

Machine Manufacturing

Machine builders frequently integrate inductive sensors into equipment to monitor actuator positions, indexing mechanisms, and moving assemblies.

Packaging Operations

Packaging machinery can use the sensor to verify machine positioning, transport components, and sequencing mechanisms throughout automated production cycles.

Advantages

• Reliable operation independent of ambient light
• Reduced maintenance through contactless detection
• Stable sensing performance in industrial environments
• High resistance to moisture and contamination
• Flexible installation enabled by the 2-meter cable
• Long operational service life

Industry-Specific Examples

In metal processing facilities, the Omron E2E-X14B218 2M Inductive Proximity Sensor can verify workpiece positioning before machining begins. In logistics automation systems, it may detect metallic transport carriers as they move between stations. Within robotic assembly cells, the sensor can confirm fixture location before automated handling operations are executed.

The Omron E2E-X14B218 2M Inductive Proximity Sensor is also suitable for industrial equipment exposed to regular cleaning procedures thanks to its robust enclosure design and environmental protection characteristics.

Considerations When Selecting a Sensor

Selecting an inductive proximity sensor requires evaluation of sensing distance, target material, environmental conditions, mounting configuration, and connection requirements. Engineers should also consider cable routing, control system compatibility, and available installation space.

Applications requiring reliable metallic target detection and extended installation flexibility may benefit from the characteristics provided by this sensor model.

For additional sensing technologies and related product families, explore Omron sensor products.

Frequently Asked Questions

1. What is the primary function of the Omron E2E-X14B218 2M Inductive Proximity Sensor?

It is designed for non-contact detection of metallic objects in industrial automation applications.

2. What is the rated sensing distance?

The sensor provides a sensing distance of 14 mm.

3. Which output configuration is available?

The model features a PNP normally open output.

4. What cable length is supplied?

The sensor includes a 2-meter integrated cable.

5. Can the sensor detect non-metallic materials?

No. Inductive sensing technology is intended for conductive metallic targets.

6. Which industries commonly use this sensor?

Automotive, logistics, machine manufacturing, packaging, and industrial automation sectors.

7. What protection ratings are provided?

The sensor supports IP67 and IP69K environmental protection.

8. Does ambient lighting affect detection performance?

No. Inductive sensing technology is independent of light conditions.

9. What housing size is used?

The sensor is built in an M18 threaded cylindrical housing.

10. Why is non-contact sensing beneficial?

Non-contact detection reduces mechanical wear and contributes to longer operational life and reduced maintenance requirements.
