Omron E2E-X10MB1T12-M1TJ 0.3M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive proximity sensor |
| Series | E2E NEXT |
| Size | M12 |
| Mounting Type | Non-flush |
| Sensing Distance | 10 mm |
| Output Type | IO-Link, PNP |
| Operation Mode | NO |
| Connection Method | M12 pigtail Smartclick connector |
| Cable Specification | PVC, oil-resistant |
| Cable Length | 0.3 m |
| IO-Link Baud Rate | COM3, 230.4 kbps |
| Housing Material | Nickel-plated brass |
| Overall Length | 47.1 mm |
| Thread Length | 26 mm |
| Protection Rating | IP67, IP67G, IP69K |
Technical Description

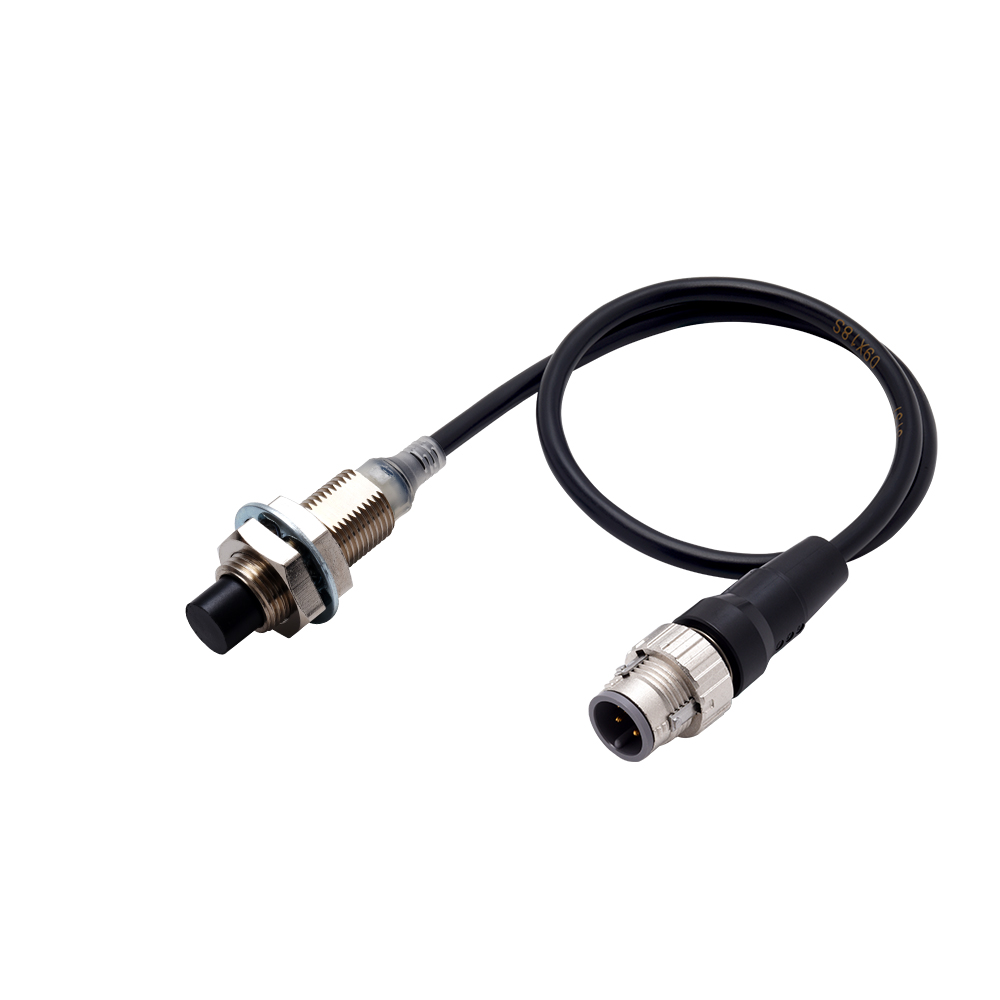

The Omron E2E-X10MB1T12-M1TJ 0.3M Inductive Proximity Sensor is an M12 non-flush inductive sensor with a short 0.3 m pigtail and M12 Smartclick connector. This structure is useful where the sensor body must be mounted in a compact mechanical area while the connection point remains accessible for maintenance.
The sensor provides 10 mm metal detection, PNP normally open output, and IO-Link COM3 communication. The Omron E2E-X10MB1T12-M1TJ 0.3M Inductive Proximity Sensor is particularly relevant for machine panels, modular stations, and equipment where fast disconnection is important.
Omron E2E-X10MB1T12-M1TJ 0.3M Working Principle
The sensing face creates an electromagnetic field. A metallic object entering the field changes the sensor oscillator condition, allowing the electronics to switch the output. Since detection does not require contact, the sensor can operate in repetitive machine cycles without friction-related wear.
The IO-Link interface gives the control system access to sensor communication beyond a simple switching signal, which can support diagnostics and structured device management.
Usage Areas
This model can be applied in fixture detection, compact conveyor modules, rotary tables, indexing equipment, and automated handling stations. The pigtail connector can simplify wiring in tight machine frames where a direct connector may be difficult to access.
Omron E2E-X10MB1T12-M1TJ 0.3M Industrial Applications
In electronics assembly, it can confirm metal carrier position. In packaging lines, it may detect mechanical stop positions. In automated test equipment, it can verify actuator movement. In automotive component assembly, it can monitor metal nests, pins, or locating elements.
Omron E2E-X10MB1T12-M1TJ 0.3M Advantages
- Short pigtail design for flexible installation
- M12 Smartclick connector for practical field connection
- 10 mm sensing distance with M12 body size
- Oil-resistant PVC cable section
- IP67, IP67G, and IP69K protection ratings
- IO-Link COM3 communication support
Selection Considerations
When choosing this device, confirm that the 0.3 m pigtail is suitable for the machine layout. The non-flush mounting style must be considered during bracket design. Engineers should also verify PNP input compatibility, IO-Link master availability, target dimensions, and cleaning conditions around the sensor head.
Related Omron Sensor Series
For comparable industrial sensing devices, see Omron sensor products.
Omron E2E-X10MB1T12-M1TJ 0.3M Frequently Asked Questions
What is the main difference of this model?
It uses a 0.3 m pigtail with an M12 Smartclick connector.
What is the sensing distance?
The rated sensing distance is 10 mm.
Is the cable oil-resistant?
Yes. The listed cable specification is oil-resistant PVC.
What type of output is available?
The sensor uses IO-Link and PNP output with normally open operation.
Where is the pigtail design useful?
It is useful in compact machines where the connector should be offset from the sensor body.
Can it detect plastic parts?
No. Inductive sensors are intended for metallic targets.
What protection ratings are listed?
The device is rated IP67, IP67G, and IP69K.
What should be checked during commissioning?
Mounting clearance, target alignment, connector locking, cable routing, and controller input configuration should be checked.
