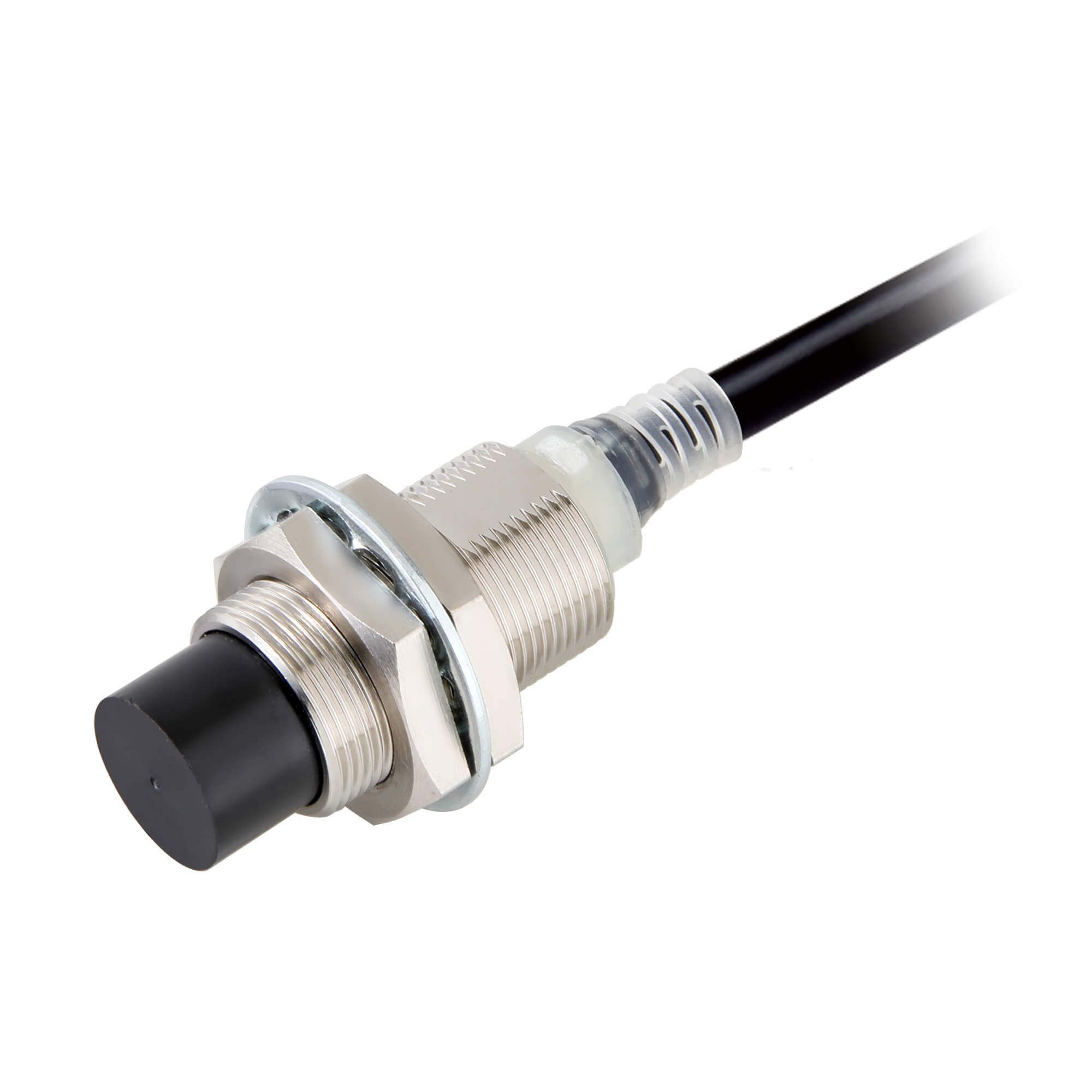

Omron E2B-S08KS02-WP-C2 5M Inductive Proximity Sensor

The Omron E2B-S08KS02-WP-C2 5M Inductive Proximity Sensor is a compact M8 inductive sensor with NPN normally closed output operation. It is used where the control system expects the signal state to change when a metallic target enters the sensing range.

The Omron E2B-S08KS02-WP-C2 5M Inductive Proximity Sensor provides 2 mm non-contact metal detection, a stainless steel short body, flush mounting capability, and a 5 m PVC cable. These characteristics make it suitable for compact industrial installations with defined target positions.

Technical Description

This sensor is designed for short-range metallic object detection. The NPN normally closed output configuration is relevant for machine circuits where the input state must be active in the absence of the target and change when the target is detected.

The M8 threaded body supports installation in compact mechanical structures. The 5 m cable provides direct field wiring to terminals, junction boxes, or control panels without requiring a separate connector cable.

Working Principle

The sensor face emits an electromagnetic field. When a metallic object approaches the sensing area, eddy currents develop in the object. These currents absorb field energy and cause a measurable change inside the oscillator circuit.

The internal electronics convert this change into an NPN switching signal. Since the sensor operates without contact, it can be used in repetitive production cycles where mechanical switches would be exposed to wear.

Usage Areas

• End-position monitoring in compact actuators
• Metal stop confirmation in indexing mechanisms
• Fixture status detection in assembly cells
• Presence detection in machine guarding support systems
• Reference detection in automated handling units

Industrial Applications

Automated Indexing Tables

The sensor can detect a metal reference tab or stop position before the next indexing movement is allowed.

Assembly Verification Systems

It can confirm the presence of a metallic part before pressing, joining, or inspection operations proceed.

Compact Machine Modules

The short M8 body is useful in machine sections with limited space around tooling, actuators, and mechanical guides.

Advantages

• NPN normally closed output configuration
• 2 mm sensing distance for close-range detection
• Flush mounting design
• 5 m PVC cable for direct connection
• Stainless steel housing
• IP67 environmental protection
• Suitable for repetitive non-contact detection tasks

Selection Considerations

Selection should begin with the required output logic. This model should be used where NPN normally closed operation is required by the control system. Engineers should also review target size, target material, sensing distance, cable routing, and mechanical mounting depth.

Omron E2B-S08KS02-WP-C2 5M For other sensing options, visit Omron sensor products.

Omron E2B-S08KS02-WP-C2 5M Frequently Asked Questions

What output configuration does this sensor use?

It uses an NPN normally closed output.

What is the sensing distance?

The sensing distance is 2 mm.

What type of objects can it detect?

It detects metallic objects.

Does this model use a connector?

No. It uses a 5 m cable connection.

Is the sensor suitable for flush mounting?

Yes. It has a shielded flush mounting design.

What is the protection rating?

The sensor has an IP67 protection rating.

Where can this sensor be applied?

It can be used in indexing tables, compact automation modules, assembly systems, and conveyor mechanisms.

What should be verified before use?

Output logic, target alignment, sensing distance, cable length, and controller input compatibility should be verified.
