Honeywell NGCMA10AX01B Limit Switch Technical Overview for Compact Machine Designs

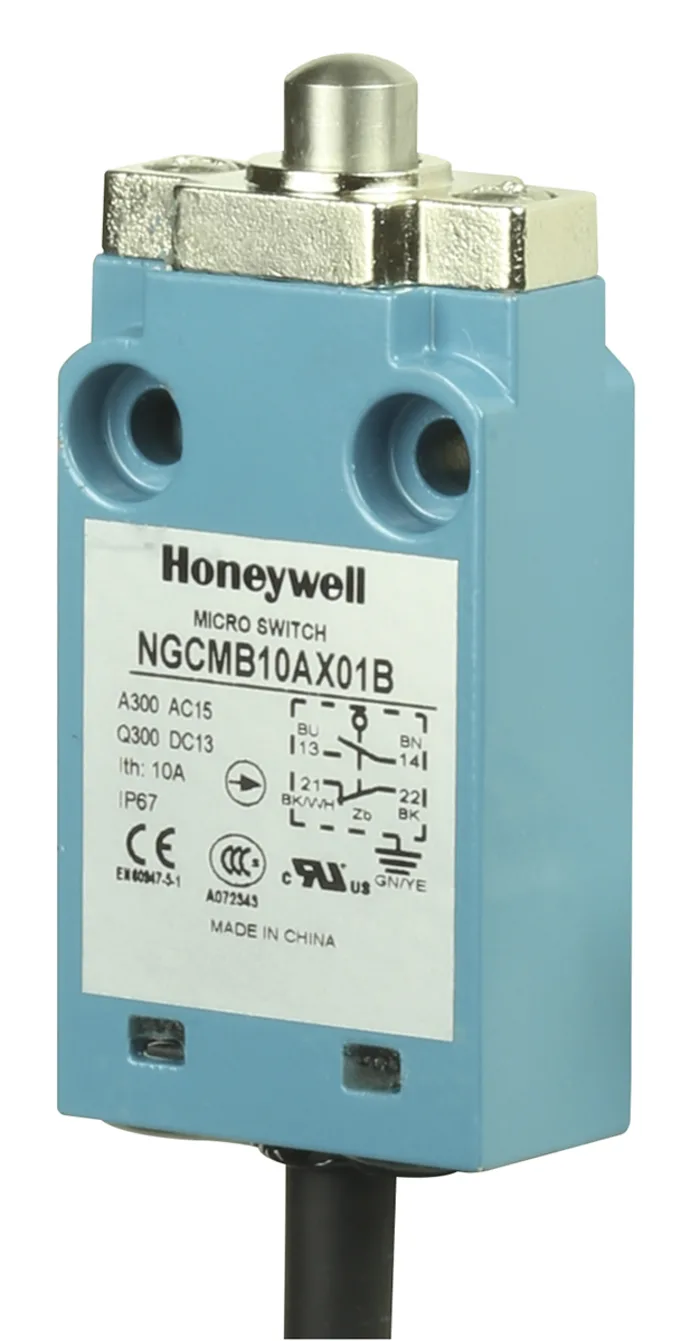

The Honeywell NGCMA10AX01B limit switch is part of the NGC compact limit switch family and is designed for industrial environments where space, durability, and predictable mechanical actuation all matter. As a Honeywell NGCMA10AX01B limit switch, this model uses DPST-NO/NC circuitry, chassis mounting, cable leads, and a round pin plunger actuator. It is rated at 6 A AC and 550 mA DC, with 120 V AC and 125 V DC ratings, and it carries IP67 ingress protection for dust-tight and waterproof performance in demanding industrial settings.
For many users, the strongest value of the Honeywell NGCMA10AX01B limit switch is its compact footprint combined with practical environmental sealing. In machinery where exposure to dust, moisture, or washdown-style conditions is possible, IP67 protection becomes a meaningful specification rather than a minor detail. It supports more reliable deployment in areas where an unsealed basic switch may not be the best fit.
Technical Highlights of the Honeywell NGCMA10AX01B Limit Switch
This Honeywell NGCMA10AX01B limit switch uses a round pin plunger actuator, which suits applications where a machine element moves linearly into the switch body. It also uses cable leads instead of screw terminals, a format that can simplify installation where a prewired connection is preferred. The listed operating force is 1122 gf, with a release force of 306 gf, which indicates a firmer actuation profile than many lighter-duty basic switches.
The Honeywell NGCMA10AX01B limit switch is also listed with a mechanical life of 5,000,000 cycles and an electrical life of 500,000 cycles. Those values matter in industrial procurement because they help teams estimate maintenance intervals and understand whether the switch aligns with the expected duty cycle of a machine. Operating temperature is listed from -25°C to 75°C, which supports use across a broad range of factory conditions.
Where the Honeywell NGCMA10AX01B Limit Switch Performs Well
A Honeywell NGCMA10AX01B limit switch is well suited to medium-duty equipment where a compact but sealed electromechanical switch is needed. Typical applications can include machine guards, travel detection, gate or mechanism position sensing, and moving assemblies that require a simple contact-based confirmation signal. Because it uses both NO and NC switching paths in a DPST arrangement, it can support broader control logic requirements than simpler single-circuit alternatives.
The NGC family is also known for helping designers standardize around a single mounting footprint while selecting different actuator formats and electrical configurations across a wider product platform. For broader product-family reference, visit Honeywell product information.
Why Searchers Look for Honeywell NGCMA10AX01B Limit Switch Data
Users who search for Honeywell NGCMA10AX01B limit switch content are usually validating exact technical fit. They want to confirm the actuator, wiring format, protection class, contact configuration, and service life before release. In maintenance and MRO environments, replacing a switch with the wrong operating force or wrong actuator profile can create reliability issues, so exact-code research is essential.
That makes the Honeywell NGCMA10AX01B limit switch a strong example of a component where technical specificity drives search behavior. Buyers and engineers are usually searching for functionality first, not generic promotional language.
FAQ: NGCMA10AX01B Limit Switch
What type of switch is the NGCMA10AX01B?
It is a Honeywell NGCMA10AX01B limit switch with DPST-NO/NC circuitry, a round pin plunger actuator, chassis mounting, and cable leads.
Does the Honeywell NGCMA10AX01B limit switch have environmental sealing?
Yes. Technical listings show IP67 protection, which means the switch is dust-tight and waterproof for demanding industrial environments.
What electrical ratings are listed for this Honeywell limit switch?
The model is listed at 6 A AC and 550 mA DC, with voltage ratings of 120 V AC and 125 V DC.
Why is the Honeywell NGCMA10AX01B useful in compact machines?
It combines a small form factor, cable-lead connection, mechanical durability, and environmental sealing. That makes it suitable where installation space is limited but reliability expectations remain high.
How long can the Honeywell NGCMA10AX01B last in service?
Available product data lists a mechanical life of 5,000,000 cycles and an electrical life of 500,000 cycles, though actual service life always depends on application conditions.
