Honeywell 1TL1-3D Toggle Switch: Sealed Switching for Demanding Applications

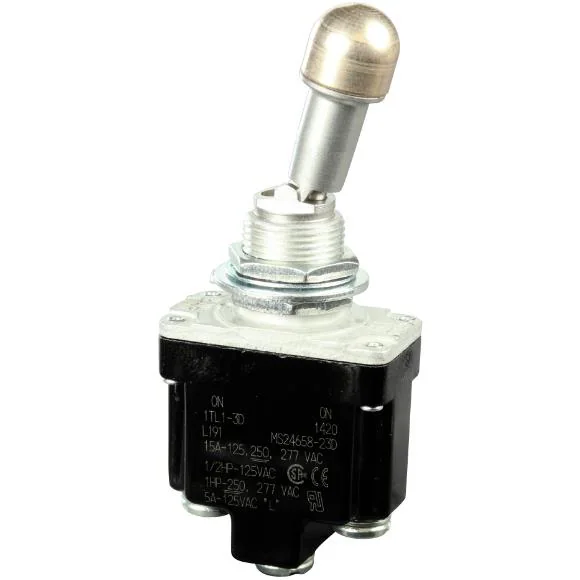

The Honeywell 1TL1-3D toggle switch is a sealed industrial and high-reliability toggle device from Honeywell’s TL series. The Honeywell 1TL1-3D toggle switch is commonly described as a 1-pole, 2-position locking lever switch with a straight bushing-mount configuration. That makes it a strong candidate for applications where intentional switching, tactile control, and environmental protection all matter.
Why the Honeywell 1TL1-3D Stands Out
Honeywell TL series references highlight a robust sealed construction and note that the family is military qualified to MIL-DTL-3950. The series uses sealing between the toggle lever and bushing and between the cover and case, helping the switch perform in demanding environments. For the specific Honeywell 1TL1-3D toggle switch, published part data also points to SPDT on-on function, screw termination, a locking lever actuator, and a broad operating temperature range from -65°C to 71°C.
Where the Honeywell 1TL1-3D Toggle Switch Is Used
The Honeywell 1TL1-3D industrial toggle switch fits applications in control panels, mobile equipment, rugged instrumentation, defense-adjacent environments, specialty vehicles, and industrial systems that need deliberate operator input. The locking lever style is especially important because it helps reduce accidental switching in environments with vibration, gloves, or repeated operator movement.
Technical Benefits in Real Systems
In practical use, the 1TL1-3D sealed toggle switch gives designers a combination of mechanical clarity and environmental confidence. Operators can physically confirm the switch position, while engineers benefit from a defined on-on switching format and dependable panel-mount integration. The screw terminal style also supports secure wiring in applications where field maintenance and wire retention matter.
What to Check Before Specification
Before choosing the Honeywell 1TL1-3D toggle switch, it is important to confirm current and voltage requirements, panel cutout compatibility, wiring approach, and whether a locking lever is desirable for the intended user experience. In some installations, a standard lever is faster to operate; in others, the locking feature is exactly what prevents costly operator error.
For more information about Honeywell, reviewing the wider Honeywell switch range can help determine whether a sealed toggle switch or a machine-mounted limit switch is the better solution for the application.
FAQ
What type of switch is the 1TL1-3D?
It is a sealed Honeywell TL series toggle switch with a locking lever and 1-pole, 2-position switching behavior.
Why is the locking lever important?
A locking lever helps prevent unintended actuation, which is valuable in high-vibration environments or systems where operator error must be reduced.
Is the 1TL1-3D suitable for harsh environments?
Yes. The TL series is known for sealed construction, and published data shows a wide operating temperature range that supports demanding applications.
Does the 1TL1-3D use screw terminals?
Yes. Published part data identifies screw termination, which is often preferred for secure panel wiring.
Where is the 1TL1-3D commonly installed?
It is often installed in control panels, rugged equipment, instrumentation systems, and applications requiring reliable manual switching.
