Honeywell 12TW13-3D Toggle Switch Technical Overview

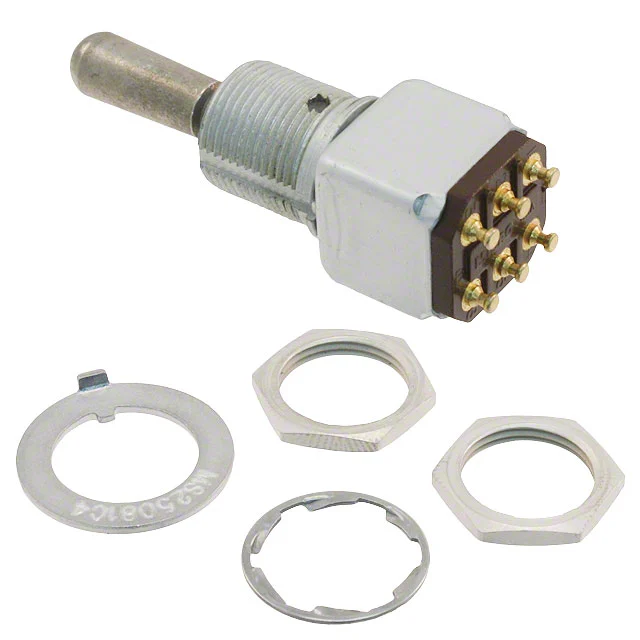

The Honeywell 12TW13-3D toggle switch is identified in current component listings as a DPDT, 2-position, ON-ON panel-mount toggle switch with a locking lever and solder termination. While the broader TW Series technical foundation comes from Honeywell’s official product sheet, the exact part-level attributes for the Honeywell 12TW13-3D toggle switch are most clearly reflected in current distributor data, where it is consistently described as a rugged TW Series locking toggle with a 5 A rating and threaded bushing panel mounting.
Core Technical Context Behind the Honeywell 12TW13-3D Toggle Switch
The TW Series as a whole is engineered as a miniature military-grade toggle family suitable for applications exposed to vibration, dust, splashing water, and temperature variation. Honeywell lists the series with an operating range of -65°C to 71°C, contact options including fine silver and gold-plated versions, and electrical endurance of 20,000 cycles at full load. Those family-level characteristics help frame the expected performance profile of the Honeywell 12TW13-3D toggle switch.
The locking lever is one of the most important functional elements here. A Honeywell 12TW13-3D locking toggle switch is not just about basic circuit control. It is usually considered when an operator must avoid unintended movement in environments where vibration, close operator contact, or procedural control can all matter. This makes the part relevant in control panels, transportation equipment, industrial machinery, and specialist instrumentation. For more information about Honeywell, this reference page can support broader product research.
Why the Honeywell 12TW13-3D Is Often Searched
Search interest around a Honeywell 12TW13-3D toggle switch often comes from engineers, buyers, and maintenance teams looking for a compact locking DPDT switch with established industrial pedigree. The appeal is straightforward: manual control, durable mechanics, compact mounting, and a switching format that fits mode selection, line transfer, and dual-state circuit routing.
FAQ
What type of switch is the 12TW13-3D?
The Honeywell 12TW13-3D toggle switch is commonly listed as a DPDT ON-ON panel-mount toggle switch with a locking lever and solder terminals.
Is the 12TW13-3D part of the TW Series?
Yes. Current market listings place the part within Honeywell’s TW Series, which is a miniature military-grade toggle switch family designed for demanding environments and compact panel layouts.
Does the Honeywell 12TW13-3D use a locking lever?
Yes. Distributor attribute data consistently describes the Honeywell 12TW13-3D toggle switch as a locking-lever configuration. That helps reduce unintended operation compared with a standard non-locking lever.
What applications suit the 12TW13-3D toggle switch?
It is typically relevant where manual switching must remain dependable in a small panel footprint. Common application themes include industrial controls, rugged instrumentation, support equipment, and specialized machinery.
What should be checked before using the 12TW13-3D?
Users should verify the exact electrical load, mounting dimensions, sealing expectations, and wiring method needed in the target design. Even when a switch matches the broad TW Series profile, part-level validation is still good engineering practice.
