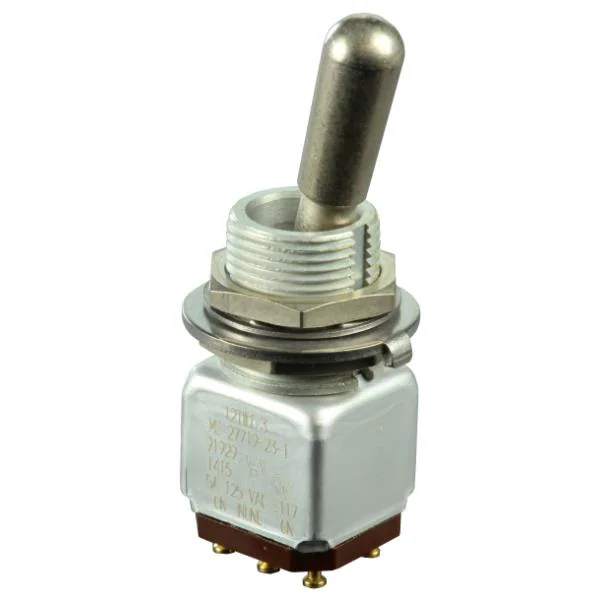

Honeywell 12TW1-3 Toggle Switch Explained
The Honeywell 12TW1-3 toggle switch is a two-pole, two-position model in the MICRO SWITCH TW Series. According to Honeywell’s TW Series order guide, the Honeywell 12TW1-3 toggle switch uses solder terminals and a maintained ON-ON circuit arrangement, with one position closing terminals 2-1 and 5-4, and the opposite position closing 2-3 and 5-6. This makes it a practical choice for circuit changeover tasks where both positions are active rather than having a central OFF state.
Technical Profile of the Honeywell 12TW1-3 Toggle Switch
The TW Series is built around a miniature military-grade concept intended for applications where space is limited and switching reliability matters. Honeywell lists support for environmental sealing options, a broad operating temperature range of -65°C to 71°C, and electrical ratings up to 5 A depending on voltage and load type. The series is also associated with several actuator and termination options, but the Honeywell 12TW1-3 DPDT toggle switch specifically appears in the order guide as a solder-terminal configuration with a 15/32 in bushing.
That combination is useful when designers want a compact but mechanically robust manual interface. The Honeywell 12TW1-3 toggle switch accessory is often considered for instrumentation, control cabinets, transportation support systems, and industrial equipment where an operator may need to alternate between two energized states. For more information about Honeywell, this internal brand link can help readers explore the wider product family.
Why the Honeywell 12TW1-3 Remains Relevant
One reason engineers continue to search for the Honeywell 12TW1-3 toggle switch is functional clarity. An ON-ON DPDT toggle is simple, dependable, and easy to understand in both maintenance and design documentation. In sectors where manual override, test selection, or controlled mode switching is still preferred, a switch like this can remain highly relevant even in otherwise modern electronic systems.
FAQ
What kind of switch is the Honeywell 12TW1-3?
The Honeywell 12TW1-3 toggle switch is a DPDT, 2-position, ON-ON panel-mount toggle switch in the TW Series, using solder terminals and a 15/32 in bushing configuration.
What does ON-ON mean for the 12TW1-3 toggle switch?
It means both lever positions are active switching states. Unlike an OFF-ON switch, the Honeywell 12TW1-3 toggle switch changes between two connected circuit conditions rather than switching from inactive to active.
Is the 12TW1-3 suitable for compact panels?
Yes. Honeywell specifically presents the TW Series as a miniature design intended for applications where behind-the-panel space is limited. That makes the Honeywell 12TW1-3 toggle switch attractive for dense control layouts.
What environments is the TW Series built for?
Honeywell describes the TW Series for demanding uses that may include shock, vibration, dust, splashing or hose-directed water, and temperature extremes. That rugged positioning is one of the reasons the series is often associated with aerospace, industrial, and machinery applications.
Does the 12TW1-3 use maintained action?
Yes. The standard 12TW1-3 listing in Honeywell’s order guide is a maintained ON-ON switch rather than a momentary version, so the lever stays in the selected position until it is manually changed.
