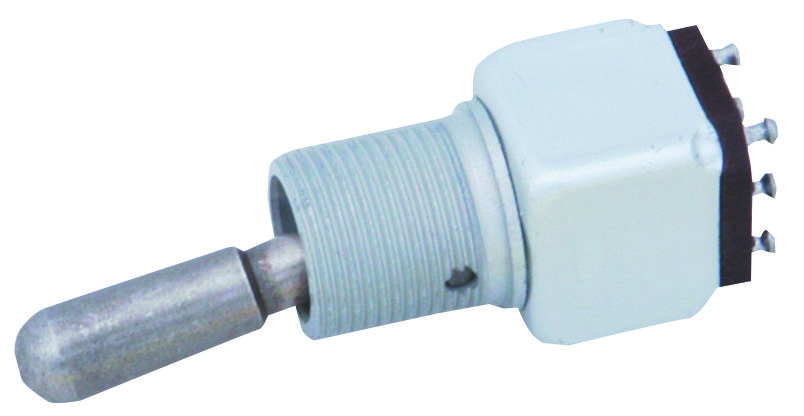

Honeywell 12TW1-7E Toggle Switch Explained
The Honeywell 12TW1-7E toggle switch is a compact DPDT control switch developed within the MICRO SWITCH TW platform for rugged panel environments. What makes this model especially interesting is the combination of three-position switching and a locking lever arrangement, which gives it a more controlled actuation profile than a standard miniature toggle. For technical buyers, design engineers, and maintenance planners, the Honeywell 12TW1-7E toggle switch is often considered when panel space is limited but switch discipline cannot be compromised.
Technical Profile of the Honeywell 12TW1-7E Toggle Switch
The Honeywell 12TW1-7E toggle switch is associated with a DPDT, three-position, solder terminal format and a locking lever configuration. It is also commonly connected with a military-style part reference, which aligns with the broader TW Series reputation for ruggedized use. In practical design language, this means the switch can manage two circuits while supporting a three-position operating sequence in a compact panel-mount body.
That combination is useful in equipment where the operator needs more than simple on/off control. The Honeywell 12TW1-7E DPDT toggle switch can support control logic involving intermediate states, directional selection, or staged electrical commands. Because it belongs to the TW family, it also inherits the broader series advantages associated with environmental sealing options, miniature dimensions, and suitability for harsh service conditions.
Why Engineers Search for Honeywell 12TW1-7E
There is a practical reason why the phrase Honeywell 12TW1-7E toggle switch is searched so often in technical sourcing and maintenance workflows. This is not a generic commodity switch. It sits in a category where exact code matching matters because the lever type, switching pattern, mounting thread, and termination style all influence compatibility. If the wrong three-position toggle switch is selected, the panel may fit physically while the circuit behavior fails functionally.
That is why product identification for the Honeywell toggle switch 12TW1-7E usually focuses on its locking lever and three-position DPDT configuration. In aerospace support systems, heavy equipment, industrial machinery, and specialized control assemblies, that level of accuracy is essential.
Operational Value in Control Panels
The Honeywell 12TW1-7E locking lever toggle switch is particularly useful where accidental movement of the actuator would be a problem. A more deliberate actuation style supports safer, more stable operator interaction. This is valuable in mobile equipment, vibration-prone panels, and mission-critical interfaces where a control input should feel intentional rather than casual.
For more information about Honeywell products, it is worth comparing the 12TW1-7E to standard-lever and two-position TW variants, especially when maintaining legacy assemblies or specifying new control hardware.
FAQ
What kind of switch is the Honeywell 12TW1-7E?
The Honeywell 12TW1-7E is generally identified as a DPDT, three-position miniature toggle switch with solder terminals and a locking lever. It belongs to the rugged MICRO SWITCH TW family used in demanding panel applications.
Why is the locking lever important on the Honeywell 12TW1-7E?
The locking lever helps make actuation more intentional. In applications exposed to movement, vibration, or operator contact, that can reduce accidental switching and support better control reliability.
Where can the Honeywell 12TW1-7E be used?
This switch is relevant for industrial equipment, mobile machinery, aerospace support systems, and technical control panels that need compact dimensions and dependable switching performance.
Is the Honeywell 12TW1-7E suitable for replacement projects?
Yes, especially when an existing system already uses a TW Series switch with the same lever style, mounting arrangement, and switching logic. Exact code matching is important in these cases because similar-looking switches may behave differently electrically.
What should engineers verify before selecting the Honeywell 12TW1-7E?
They should verify the three-position switching behavior, DPDT circuit requirement, locking lever style, panel mounting format, and termination method. Those factors determine whether the part is truly compatible with the target system.
