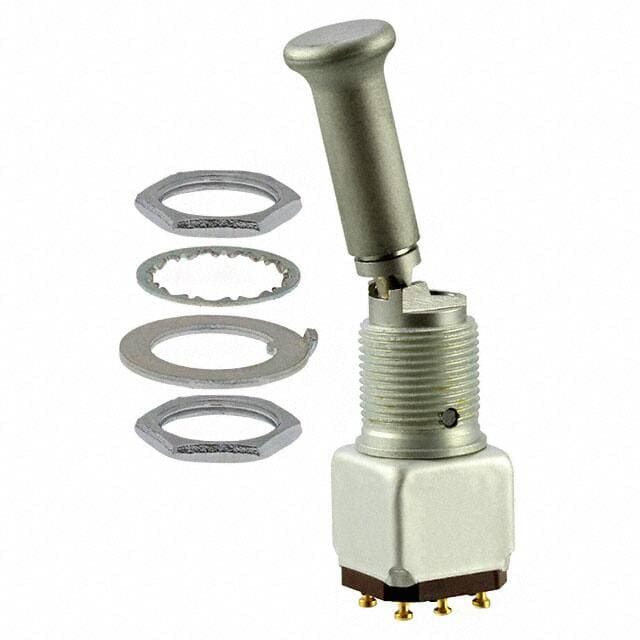

Honeywell 12TW1-50K Toggle Switch Overview
The Honeywell 12TW1-50K toggle switch is a specialized member of the Honeywell TW Series, designed for applications that need reliable manual switching in compact and mechanically demanding environments. As a Honeywell 12TW1-50K operator control accessory, it combines a miniature footprint with a more controlled lever arrangement than many standard industrial toggles.
This model is generally identified as a DPDT 3-position toggle switch with special circuitry, solder terminals, and a mushroom-style locking lever. What makes the Honeywell 12TW1-50K toggle switch especially notable is its locking pattern: the lever is locked in the center and in the extreme position opposite the keyway. That arrangement is valuable when a system designer wants more than one protected lever state.
Why the 12TW1-50K Matters in Technical Applications
In control engineering, not all three-position switches are interchangeable. The differences often come down to switching logic, lockout behavior, panel safety strategy, and operator ergonomics. The Honeywell 12TW1-50K DPDT toggle switch is useful in panels where both the center position and one extreme position deserve extra intentionality from the operator.
This can be relevant in high-reliability systems, test consoles, field equipment, and aerospace-style control assemblies. The lock-in-center characteristic may help when the neutral or intermediate state has process value, while the additional locking on one end adds another layer of control discipline.
Core Technical Characteristics
- Honeywell TW Series miniature toggle switch
- Double pole, double throw, 3-position format
- Special circuitry configuration
- Solder terminal connection style
- 15/32 inch bushing panel mount design
- Mushroom-style locking lever
- Locked in center and extreme position opposite keyway
Installation and Design Considerations
When selecting a Honeywell 12TW1-50K accessory switch, engineers usually focus on more than basic voltage and current values. The practical questions include how the operator will interact with the control, whether a protected center position is required, and how the switch will behave under vibration or repeated field use.
Because the TW Series is associated with compact military-grade construction and environmental resilience, the Honeywell 12TW1-50K toggle switch is often evaluated for harsh-duty settings where panel space is limited and reliability expectations are high. This makes it relevant for specialist industrial controls, transportation systems, defense-related platforms, and instrumentation cabinets.
FAQ
What is the main difference between the Honeywell 12TW1-50K and a standard 3-position toggle switch?
The key difference is the lever behavior. The Honeywell 12TW1-50K toggle switch includes a locking arrangement that protects the center position and one extreme position, which is more specialized than a typical free-moving toggle.
Why would a center lock be useful?
A center lock can be important when the middle position represents a standby, neutral, or transitional state that should not be changed casually. It supports more deliberate operator action and can help reduce unintended control changes.
Is the Honeywell 12TW1-50K only for military systems?
No. Although the TW Series is widely recognized for military-grade characteristics, the switch can also be relevant in industrial, testing, transportation, and high-end equipment applications where rugged manual switching is needed.
What should buyers confirm before using this part?
They should check the exact circuit behavior, panel interface requirements, locking orientation, and the role of each switch position in the end application. Those details determine whether the K variant is truly the correct fit.
