Honeywell 12TL1-50 Toggle Switch Technical Overview

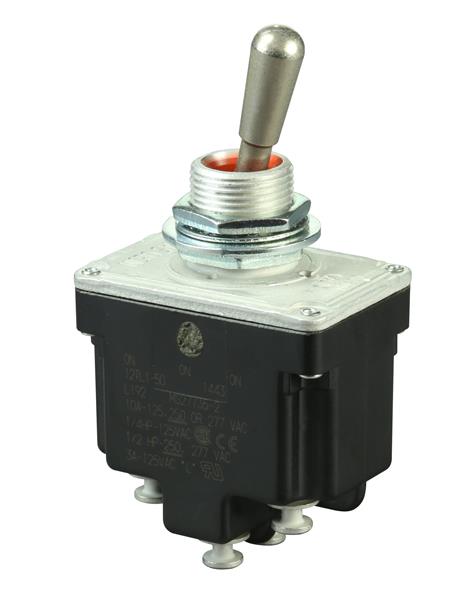

The Honeywell 12TL1-50 toggle switch is a sealed DPDT toggle switch designed for applications that need a more specialized three-position switching pattern than a basic two-position model. As part of the Honeywell MICRO SWITCH TL Series, this switch combines rugged environmental sealing, solder turret terminals, and a standard round actuator with an On-On-Mom switching function. Because of that configuration, the Honeywell 12TL1-50 toggle switch is often reviewed for control systems that require a maintained state in one direction and a momentary action in another.

Technical Characteristics of the Honeywell 12TL1-50 Toggle Switch

The Honeywell 12TL1-50 DPDT toggle switch is listed as a panel-mount switch with a standard round actuator measuring 17.27 mm. It uses solder turret terminals and carries a 10A AC rating at 125V AC in the catalog listing. It is also environment sealed, which is important for installations exposed to contamination, splashing, or mechanical stress. For engineers seeking a Honeywell 12TL1-50 DPDT toggle switch, the main attraction is usually its special switching logic rather than only its physical build.

Why the On-On-Mom Function Matters

The Honeywell 12TL1-50 toggle switch supports a three-position arrangement that differs from a conventional On-Off-On pattern. In many control systems, a momentary function is useful for temporary commands such as test activation, jog control, signal initiation, or manual override. Meanwhile, the maintained side gives the operator a stable operating state. That means the Honeywell 12TL1-50 toggle switch can be practical in applications where both persistent control and temporary input are needed from one component.

Best-Fit Applications for the Honeywell 12TL1-50 DPDT Toggle Switch

This Honeywell toggle switch can suit industrial control boxes, machine interfaces, support vehicles, electrical maintenance panels, and specialist equipment where dual-circuit routing is needed. The sealed construction supports use in tougher environments, while the DPDT architecture makes it useful for more advanced switching paths. A Honeywell 12TL1-50 toggle switch is especially relevant when operators need a clear, physical control interface rather than a purely electronic input method.

FAQ About the 12TL1-50 Toggle Switch

What kind of switch is the Honeywell 12TL1-50?

It is a sealed, panel-mount, DPDT Honeywell toggle switch with a three-position On-On-Mom function and solder turret terminals.

What does On-On-Mom mean on the 12TL1-50?

It means the switch includes maintained positions along with a momentary position that returns after release. This is useful where a temporary command is needed.

Is the 12TL1-50 suitable for rugged equipment?

Yes. It belongs to the TL Series, which is known for environmental sealing and suitability for demanding operating conditions.

Why would someone choose the 12TL1-50 over a standard On-Off-On switch?

Because the switching logic is different. The Honeywell 12TL1-50 is selected when the system requires a temporary actuation in one part of the switching sequence instead of a simple maintained center-off arrangement.

Does the 12TL1-50 support complex circuit control?

Yes. Since it is a DPDT toggle switch, it can manage two circuits together, making it useful where coordinated switching behavior is required.

For more information, see Honeywell.
