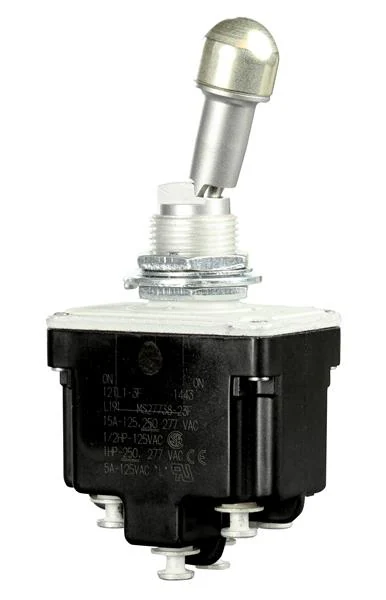

Honeywell 12TL1-3F Toggle Switch Overview

The Honeywell 12TL1-3F toggle switch is a sealed DPDT toggle switch developed for equipment that benefits from deliberate switching behavior and strong environmental durability. As part of the Honeywell MICRO SWITCH TL Series, it combines a maintained On-On circuit with panel mounting, solder turret terminals, and a locking lever format. The Honeywell 12TL1-3F toggle switch is especially relevant when designers want more control over how the switch moves through its positions.

Technical Highlights of the Honeywell 12TL1-3F Toggle Switch

This Honeywell 12TL1-3F DPDT toggle switch provides a two-position maintained On-On function. It is listed with a 15A AC current rating at 125V AC, uses solder turret terminals, and features a locking lever with a 26.67 mm actuator length. Like other TL Series options, it is environment sealed and built for rugged applications. From a system design perspective, the Honeywell 12TL1-3F toggle switch is a useful choice where switch security and tactile control matter as much as electrical performance.

What the F Variant Means in Practical Terms

Within Honeywell TL Series lever-lock configurations, the F suffix is associated with a lock-out-of-center arrangement. In practical use, that changes how an operator transitions through switch positions and can help prevent unintended intermediate operation. For panel designers, this matters because a Honeywell 12TL1-3F toggle switch is not simply a standard DPDT control part; it is a variant intended for more controlled actuation behavior. That distinction can influence usability, safety routines, and operator confidence in field conditions.

Typical Use Cases for the 12TL1-3F DPDT Toggle Switch

A Honeywell 12TL1-3F toggle switch may be selected for rugged machine panels, vehicle control assemblies, aerospace support equipment, and specialist industrial devices where controlled switching logic is required. Its sealed construction makes it suitable for environments with dust, splash exposure, and temperature variation, while the locking lever architecture helps support stable operation in dynamic settings. For technical teams searching for a Honeywell 12TL1-3F locking toggle switch, the value is usually in operational discipline rather than cosmetic design.

FAQ About the 12TL1-3F Toggle Switch

What is the Honeywell 12TL1-3F?

It is a sealed, panel-mount, DPDT Honeywell toggle switch with a maintained On-On switching function, solder turret terminals, and a locking lever.

How is the Honeywell 12TL1-3F different from a standard Honeywell toggle switch?

The difference is in the locking lever behavior. The F variant is associated with a lock-out-of-center configuration, which supports more intentional actuation.

Is the Honeywell 12TL1-3F intended for harsh environments?

Yes. It is part of the TL Series, which is designed with environmental sealing and a wide operating temperature range for demanding applications.

Why would an engineer choose the 12TL1-3F DPDT toggle switch?

Because it combines DPDT functionality, sealed construction, and a more disciplined lever action. That combination can help in equipment where control integrity is important.

Can the 12TL1-3F be used in retrofit projects?

Yes, provided the circuit logic, mounting dimensions, and terminal style match the existing design. It is often reviewed for replacement and rugged control panel work.
