Honeywell 11TW108-1 Operator Controls Accessory Guide
The Honeywell 11TW108-1 operator controls accessory is a compact toggle switch component designed for panel-based control systems that need dependable manual input. In many industrial, aerospace, and equipment-control environments, engineers look for switching hardware that is easy to identify, simple to operate, and consistent over time. That is where the Honeywell 11TW108-1 toggle switch stands out.
What Is the Honeywell 11TW108-1?

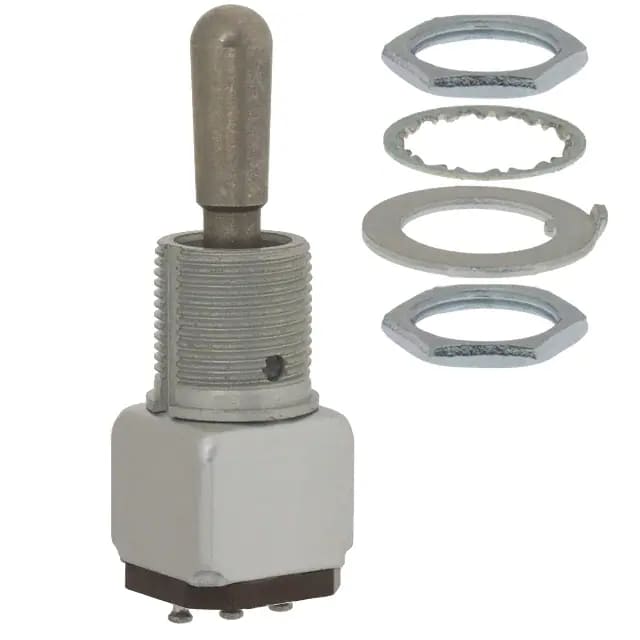

The Honeywell 11TW108-1 operator controls accessory is part of Honeywell’s toggle switch portfolio and is configured as an SPDT unit with an ON-OFF-ON switching function. It uses a panel mount design, includes solder lug termination, and features a paddle actuator. This makes it a strong fit for applications where a broader, easier-to-grip actuator is preferred over a conventional lever.
Key Technical Characteristics
From a technical point of view, the Honeywell 11TW108-1 paddle toggle switch is rated for 5 A, supports 125 VAC, and is also specified for 30 VDC. It uses a 15/32-32 bushing size and has an actuator length of 17.27 mm. These details matter because they directly affect compatibility with control panels, wiring layouts, and user ergonomics.
Why Engineers Use This Honeywell Toggle Switch
In real-world control panels, the shape of the actuator can influence usability more than many buyers expect. The Honeywell 11TW108-1 paddle actuator switch is often considered when operators need a more tactile manual interface. The paddle form can be easier to handle with gloves, in vibration-prone environments, or in installations where visual recognition of switch position matters.
Another advantage is layout efficiency. Because the product is a panel mount SPDT toggle switch, it can be integrated into compact control assemblies without creating unnecessary complexity. For maintenance teams, clearly defined switching positions help support easier diagnostics during service checks.
Common Use Cases
The Honeywell 11TW108-1 operator controls accessory can be relevant in industrial equipment, instrumentation panels, specialty vehicle controls, test benches, and rugged electrical cabinets. It is especially useful when designers want a manually controlled switch with a durable mechanical feel and a familiar installation format.
For more information about Honeywell, it is worth reviewing the broader product family to compare actuator styles and mounting options.
FAQ
What type of switch is Honeywell 11TW108-1?
It is an SPDT toggle switch designed for panel mounting. Its ON-OFF-ON configuration allows the operator to select between two active positions with a neutral center position.
What makes the Honeywell 11TW108-1 different from a standard lever switch?
The main difference is the paddle actuator. A paddle can offer better grip, easier manual operation, and improved visibility in some control environments.
Is Honeywell 11TW108-1 suitable for industrial control panels?
Yes. Its panel mount construction, 5 A current rating, and defined switching function make it suitable for many industrial and equipment-control applications.
What voltage rating does the Honeywell 11TW108-1 support?
This model is commonly specified at 125 VAC and 30 VDC, which makes it relevant for a wide range of low-voltage and line-voltage control uses depending on system design.
Why do engineers search for Honeywell 11TW108-1 operator controls accessory?
They are usually looking for a reliable panel switch with a recognizable Honeywell design, strong mechanical usability, and a paddle-style actuator for practical field operation.
