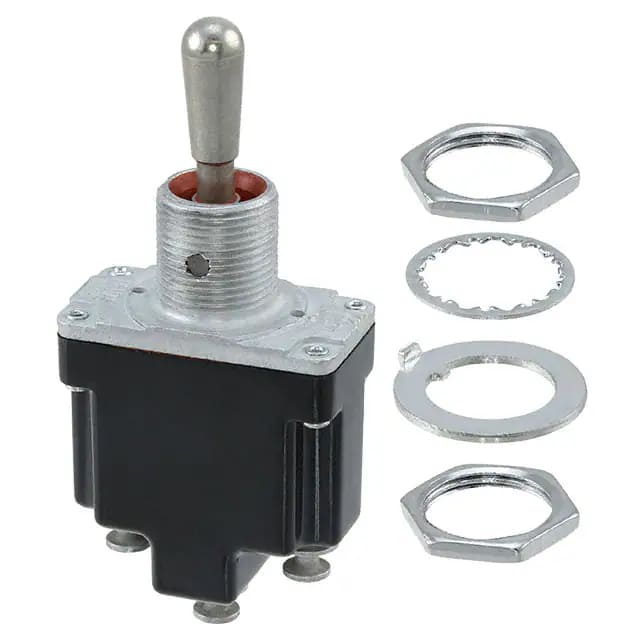

Honeywell 11TW105-7 Toggle Switch: Miniature Sealed Switch Guide
The Honeywell 11TW105-7 toggle switch is a compact manual switch in Honeywell’s TW Series, a family often associated with miniature construction, sealed performance, and dependable switching in specialized equipment. The Honeywell 11TW105-7 toggle switch is especially relevant where designers need a smaller-format panel switch without giving up durability or a clear operator feel.
Why the Honeywell 11TW105-7 Toggle Switch Stands Out
Miniature toggle switches are often used where panel space is limited, but technical expectations remain high. In those situations, the Honeywell 11TW105-7 toggle switch becomes attractive because it combines compact sizing with a more robust design philosophy than many basic small-format switches. It is commonly associated with applications in industrial machinery, aviation-related assemblies, construction equipment, test instruments, agricultural equipment, process control, and medical instrumentation.
Core Technical Characteristics
The Honeywell 11TW105-7 miniature toggle switch is commonly listed as an SPDT panel mount switch in a 3-position sealed format. Listings also associate it with a 5 A at 125 V rating. TW Series descriptions note that the terminals are molded into the housing and plated for soldering, and some configurations feature a pull-to-unlock lever to help reduce accidental operation. That combination makes the switch attractive in applications where compact installation, deliberate actuation, and dependable switching all matter.
Application Value
The Honeywell 11TW105-7 toggle switch is a logical choice when the design brief includes limited mounting space, a need for panel-mount reliability, and a preference for a sealed miniature control component. Compared with a larger general-purpose switch, the TW family can support a cleaner mechanical layout while still offering strong performance in technical equipment. That is one reason why this part number appears in engineering search behavior related to compact rugged controls.
For more information about Honeywell product families, it is useful to compare the TW, TS, and TL series by size, sealing approach, actuation style, and installation method.
FAQ
What type of product is the Honeywell 11TW105-7?
The Honeywell 11TW105-7 is a miniature toggle switch used for manual control in compact equipment and panel applications.
Is the Honeywell 11TW105-7 a sealed toggle switch?
Yes, the part is commonly associated with a sealed miniature toggle format in the Honeywell TW Series, which helps support more demanding operating conditions than an unsealed light-duty alternative.
Why is the Honeywell 11TW105-7 useful in compact systems?
Because it provides panel-mounted manual control in a smaller footprint, making it helpful where panel space, component density, or equipment size is tightly managed.
Does the 11TW105-7 support deliberate actuation?
TW Series references note pull-to-unlock lever options to help reduce accidental switching. That design approach is valuable in systems where unintended actuation could disrupt normal operation.
What should be checked before specifying the 11TW105-7 toggle switch?
Engineers should verify the exact switching function, mounting dimensions, load requirements, wiring method, actuator preference, and environmental conditions. Those checks ensure the chosen Honeywell 11TW105-7 toggle switch aligns with both mechanical and electrical needs.
