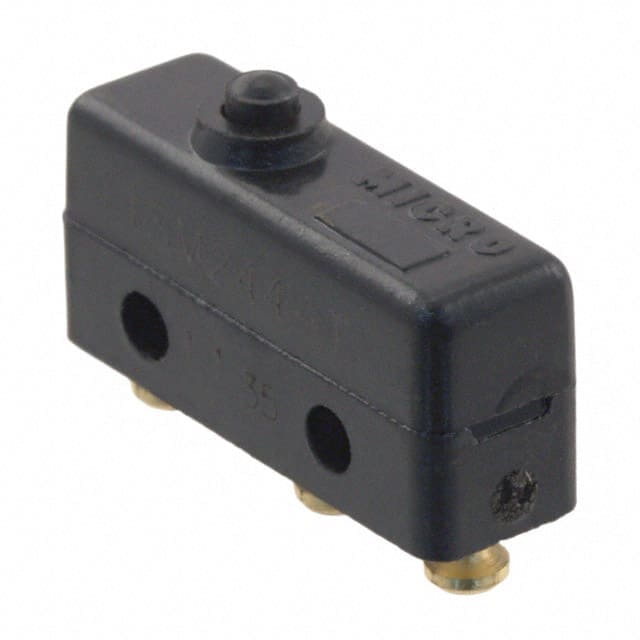

Honeywell 11SM244 Basic Switch Technical Summary
The Honeywell 11SM244 basic switch is a robust SM Series electromechanical component intended for applications that need more electrical capacity than low-current subminiature alternatives. Within the Honeywell 11SM244 basic switch design, engineers get a compact form factor together with dependable snap-action performance, making it a strong fit for equipment that demands both precision and higher switching capability.
Main Technical Characteristics
This Honeywell 11SM244 electromechanical switch is commonly documented as an SPDT switch with a pin plunger actuator, a rating of up to 5 A at 250 Vac, and 125 Vdc capability. It uses contact materials including silver and gold depending on documentation context, supports a long mechanical life, and operates across a wide temperature range. The part is also associated with solder termination and chassis-mount style installation.
How the Honeywell 11SM244 Basic Switch Is Used
The Honeywell 11SM244 basic switch is suitable for equipment where switching loads are more substantial but packaging space still matters. Typical contexts include control panels, industrial assemblies, appliance mechanisms, instrumentation systems, and equipment where a plunger-style actuator can be integrated into a reliable triggering system.
Its higher current capacity gives it an advantage in applications where lower-rated compact switches may not be appropriate. At the same time, the SM Series design preserves the benefits of a smaller, lighter switch architecture.
Why This Model Stands Out
The real strength of the Honeywell 11SM244 switch lies in its balance. It is not simply a miniature switch, and it is not unnecessarily oversized for compact assemblies. Instead, it sits in an effective middle ground: compact enough for thoughtful design work, yet electrically capable enough for many practical control tasks.
That combination can simplify product development. Engineers can maintain a compact mechanical layout while still specifying a switch with meaningful current-handling capacity and proven service life.
FAQ
What electrical rating is associated with the 11SM244 basic switch?
The part is commonly listed with a rating of 5 A at 250 Vac and 125 Vdc, which makes it useful for applications requiring more switching capacity than many signal-oriented compact switches.
What actuator style does the 11SM244 use?
The Honeywell 11SM244 basic switch uses a pin plunger actuator, a practical choice for direct mechanical engagement in compact control systems.
Why might an engineer choose the 11SM244 basic switch?
It is often selected because it combines higher electrical capacity, long-life snap-action performance, and a compact SM Series footprint. That makes it attractive for designers seeking dependable switching without moving to a much larger switch platform.
For more information about Honeywell, it is worth reviewing the broader SM Series and related industrial switching solutions.
