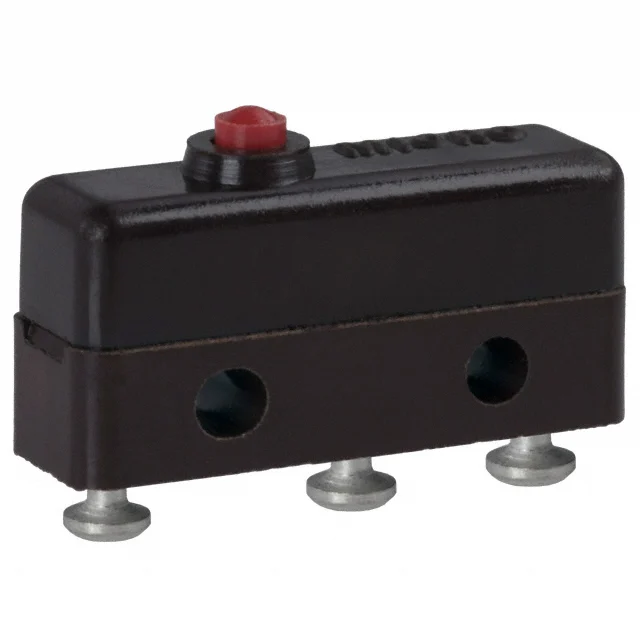

Honeywell 11SM23-T Basic Switch Explained

The Honeywell 11SM23-T basic switch is a subminiature snap-action component developed for compact control and detection tasks across a wide range of equipment. As a Honeywell 11SM23-T basic switch in the SM Series, it is designed to deliver reliable actuation, stable switching, and efficient integration where space, consistency, and long-term performance all matter.

Technical Highlights

This Honeywell 11SM23-T electromechanical switch is generally described as an SPDT basic switch with a pin plunger actuator, a 1 A rating at 125 Vac, and gold-plated contacts for dependable low-energy switching. It is also associated with SM Series characteristics such as compact dimensions, precise snap-action response, and a long mechanical life. The model is commonly referenced with solder-style electrical termination and standardized mounting centers that simplify product integration.

Why This Honeywell Basic Switch Is Still Relevant

Many engineers continue to specify the Honeywell 11SM23-T basic switch because it solves a common problem elegantly: how to obtain dependable mechanical switching in a small package without sacrificing repeatability. In compact control assemblies, a switch must be physically unobtrusive yet electrically trustworthy. This part answers that requirement well.

It is suitable for appliances, timing devices, instrumentation, test systems, medical and dental equipment, communications products, and HVAC-related controls. Where a mechanism needs a clean and repeatable on/off response, the Honeywell 11SM23-T switch remains a practical option.

Engineering Considerations

In real-world design work, reliability is often determined by small details. Contact material, actuation consistency, body size, and expected switch life all influence long-term behavior. The Honeywell 11SM23-T electromechanical switch is positioned well for these requirements, especially in projects that combine compact layout constraints with precision mechanical motion.

Rather than being a generic snap-action part, it belongs to a mature switch family known for application flexibility and dependable switching behavior across varied environments.

FAQ

What kind of actuator does the Honeywell 11SM23-T basic switch use?

It uses a pin plunger actuator, which is well suited to applications where direct mechanical contact triggers the switching action.

Is the Honeywell 11SM23-T basic switch intended only for signal-level use?

It is often associated with low-energy reliability because of its gold-plated contacts, but engineers should always match the exact electrical requirements of the application to the part documentation.

Where is the Honeywell 11SM23-T most commonly used?

This switch is commonly relevant for instrumentation, HVAC equipment, appliances, business equipment, and compact mechanical assemblies that depend on precise and repeatable electrical switching.
