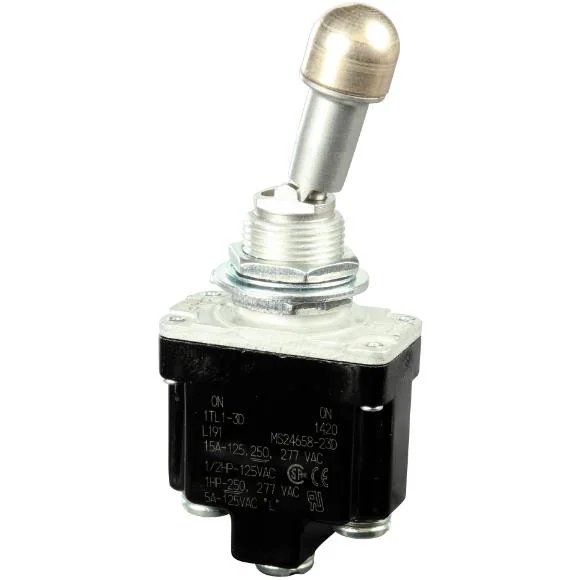

Honeywell 101TL1-3D Operator Controls Locking SPDT Switch
The Honeywell 101TL1-3D Operator Controls toggle switch is a sealed panel-mount manual control designed for applications that need both switching flexibility and stronger protection against unintended actuation. In systems where a user must choose between two active circuit states, an SPDT toggle switch is already a practical choice. When that system also operates in a vibration-prone, high-use, or safety-sensitive environment, a locking version becomes even more valuable.
The Honeywell 101TL1-3D Operator Controls model is commonly listed as an SPDT toggle switch in the rugged TL Series platform, with a locking lever and sealed construction. Honeywell describes the TL Series as environmentally sealed, military qualified to MIL-DTL-3950, and intended for demanding environments where mechanical shock, vibration, temperature extremes, dust, and splashing conditions may be present. For more product-family background, more information about Honeywell is available here.
Technical Overview of Honeywell 101TL1-3D Operator Controls
The Honeywell 101TL1-3D Operator Controls locking SPDT switch is best understood as a two-state selector switch with a more secure lever mechanism. An SPDT arrangement allows one common connection to be routed to one of two outputs, while the locking lever adds control discipline. In real applications, that can help reduce accidental switching in busy control areas or harsh operating environments.
Although part-specific distributor pages are sometimes brief, the model is consistently associated with the TL Series framework, panel mounting, rugged environmental sealing, and professional-grade operator control use. The wider family is also associated with operation from approximately -65°C to 71°C.
Why a Locking SPDT Toggle Is Valuable
The Honeywell 101TL1-3D Operator Controls format is useful because it combines two advantages. First, the SPDT function gives designers flexible routing between two active states. Second, the locking lever helps preserve the selected state until the operator intentionally changes it. This is especially valuable in applications where a control could be bumped during service, affected by vibration, or placed in a crowded control zone.
That combination can support safer operator behavior and clearer control management. It also reduces the chance that a system will change mode unexpectedly because of incidental contact or mechanical disturbance.
Common Applications for Honeywell 101TL1-3D Operator Controls
The Honeywell 101TL1-3D Operator Controls locking SPDT switch can be relevant in industrial control panels, heavy-duty equipment, service platforms, transport interfaces, backup systems, ruggedized enclosures, and specialized operator consoles. It is particularly well suited to applications where a control must remain in one of two active states and where that chosen state should not change casually.
Because the TL Series is already recognized for harsh-environment suitability, this variant becomes attractive where designers want both environmental durability and an extra level of actuation security. It can also be useful in retrofit or replacement programs where a known toggle interface is preferred over more complex control technologies.
Design Checks Before Final Specification
When evaluating the Honeywell 101TL1-3D Operator Controls model, engineers should review the exact switching function, the locking behavior, panel clearance, and operator ergonomics. A locking selector only adds value when it aligns naturally with the intended workflow. If the mechanism slows down normal use too much, it may not be the best fit. If it protects a critical function from unintended change, it can be extremely worthwhile.
It is also important to confirm wiring approach, load characteristics, and system voltage requirements with the official datasheet. For professional installations, both the electrical and mechanical behavior of the switch should be considered together.
FAQ About Honeywell 101TL1-3D Operator Controls
What kind of switch is Honeywell 101TL1-3D Operator Controls?
The Honeywell 101TL1-3D Operator Controls part is commonly treated as a sealed SPDT toggle switch with a locking lever, intended for rugged panel applications.
Why use a locking SPDT toggle switch?
A locking SPDT switch is useful when the circuit must be routed between two active states, but the selected state should be protected from accidental change. This improves control stability in harsh or busy environments.
Where is Honeywell 101TL1-3D commonly installed?
It can be used in industrial machinery, transport and field systems, service equipment, rugged control consoles, and any installation where sealed manual state selection is needed.
Is Honeywell 101TL1-3D part of a sealed switch family?
Yes. It belongs to Honeywell’s TL Series, which is described as environmentally sealed and qualified for demanding applications.
What should be checked before selecting Honeywell 101TL1-3D?
The most important checks include the precise circuit function, locking lever behavior, panel fit, user ergonomics, and the electrical demands of the application. These details determine whether the switch is the right match in practice.
