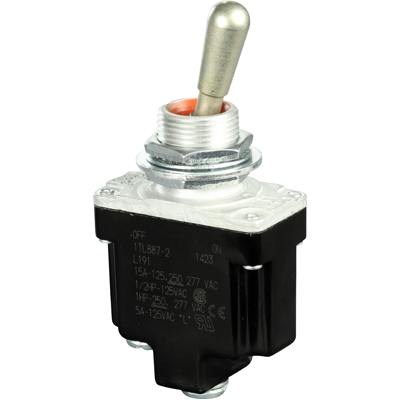

Honeywell 101TL1-2 Operator Controls Sealed Toggle Switch

The Honeywell 101TL1-2 Operator Controls toggle switch is a compact yet highly capable manual switching component designed for control environments where reliability, environmental sealing, and operator confidence all matter. A switch like this is often selected because it performs a straightforward function, but in professional systems that straightforward function must remain dependable for a very long time. In industrial panels, rugged equipment, transportation systems, and specialist controls, a sealed toggle switch can play a critical role in how safely and clearly a machine is operated.

The Honeywell 101TL1-2 Operator Controls model belongs to the Honeywell TL Series, a family described as environmentally sealed and suited to demanding military, aerospace, and industrial applications. Product listings identify this part as an SPST on-off toggle switch with panel mount installation, integrated wire termination style, and a standard round lever. Honeywell’s TL Series documentation also highlights bonded sealing between the lever and bushing and between the cover and case, reinforcing the product family’s reputation for durability. For readers who want additional manufacturer context, more information about Honeywell can be found here.

Technical Overview of Honeywell 101TL1-2 Operator Controls

The Honeywell 101TL1-2 Operator Controls sealed toggle switch is generally specified as a single-pole single-throw on-off switch. That means it provides one simple controlled path: the circuit is either open or closed. While this may sound basic, that simplicity is often exactly what engineers and operators need. The on-off arrangement is ideal for power enable functions, equipment arming circuits, subsystem activation, lighting control, auxiliary devices, and straightforward operator inputs.

Available technical listings associate the part with panel mounting, a 15/32-32 threaded bushing, a circular panel cutout around 12.40 mm, an actuator length of approximately 17.27 mm, and an operating range from about -65°C to 71°C. The ingress profile is described as environmentally sealed within the TL Series framework.

Why Honeywell 101TL1-2 Remains a Practical Choice

The value of the Honeywell 101TL1-2 Operator Controls SPST toggle switch lies in its clarity. Operators immediately understand the action of a simple on-off switch. In systems that need human-readable control behavior, that matters. A clean manual interface can reduce operator error, improve troubleshooting speed, and make maintenance procedures easier to document.

The sealed construction adds another layer of value. In many applications, the issue is not whether a switch works on day one. The issue is whether it still feels reliable after repeated use, temperature cycling, vibration exposure, and field contamination. Because the TL Series is positioned for harsh environments, the Honeywell 101TL1-2 Operator Controls model is often researched as a long-life panel switch rather than just a commodity electrical part.

Typical Applications for Honeywell 101TL1-2 Operator Controls

This switch can fit a wide range of equipment categories. It is suitable for control panels, service equipment, rugged vehicles, industrial machinery, backup power interfaces, pump systems, maintenance test panels, and specialty enclosures where a sealed manual power or enable switch is required. In some cases, it is also selected for retrofit programs where an established industrial toggle format is preferred over newer but less familiar operator interfaces.

From a user experience standpoint, a standard round lever is often appreciated because it provides a traditional tactile control method. That can be particularly valuable in applications where operators need an immediate sense of switch position without relying on a display or software layer.

Engineering Considerations Before Specification

Although the function is straightforward, the final selection process should still include careful review of electrical load, duty cycle, panel thickness, wiring method, and environmental conditions. The Honeywell 101TL1-2 Operator Controls toggle switch should be matched to the actual circuit demands of the equipment, especially where inductive loads or frequent cycling are involved.

It is also wise to look at the broader system architecture. In many designs, a manual on-off toggle switch becomes part of a larger human-machine interface strategy. The switch should be placed where it is easy to access, easy to understand, and unlikely to be actuated unintentionally. In critical control systems, that ergonomic choice can be just as important as the electrical selection itself.

FAQ About Honeywell 101TL1-2 Operator Controls

What kind of switch is Honeywell 101TL1-2 Operator Controls?

The Honeywell 101TL1-2 Operator Controls part is commonly described as an SPST on-off sealed toggle switch for panel mounting. It is designed for reliable manual control in demanding environments.

What does SPST on-off mean for Honeywell 101TL1-2?

SPST means single-pole single-throw. In simple terms, the switch controls one electrical path and provides two states: on or off. This is ideal for direct enable, isolation, or simple power switching tasks.

Is Honeywell 101TL1-2 suitable for harsh environments?

Yes. It belongs to the Honeywell TL Series, which is described as environmentally sealed and intended for demanding applications where dust, splashing, shock, vibration, and temperature variation may be present.

Where is Honeywell 101TL1-2 commonly installed?

It is often used in industrial panels, vehicles, field equipment, machinery controls, backup systems, and specialist operator interfaces that require a dependable sealed toggle switch.

What should engineers verify before selecting Honeywell 101TL1-2?

Engineers should confirm electrical ratings, wiring style, panel fit, operator access, duty cycle, and environmental exposure. Even a simple on-off toggle switch should be validated in the full context of the final system design.
