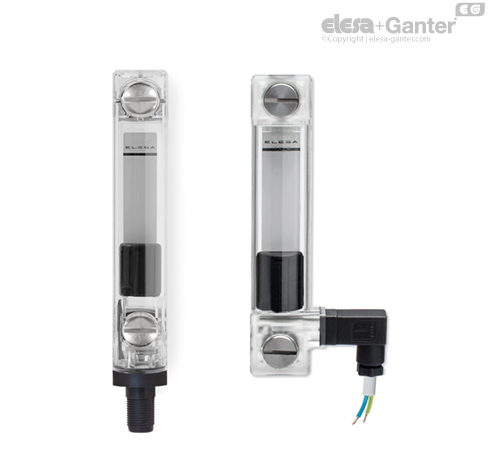

Elesa+Ganter 113491 HCK.127-SST-M12-FKM-GL-P-E-NO-80-NO Electrical Level Indicator
The Elesa+Ganter 113491 electrical level indicator is a technical monitoring component for hydraulic reservoirs, oil tanks and fluid systems where both visual level reading and electrical signalling are required. Its full model code, HCK.127-SST-M12-FKM-GL-P-E-NO-80-NO, identifies a 127 mm HCK column indicator with stainless steel hardware, FKM sealing, borosilicate glass tube, front protection and normally open electrical functions.
Technical Structure
The 127 mm hole-centre distance makes this model suitable for compact and medium reservoir designs. The SST configuration includes AISI stainless steel fixing components, while the FKM O-ring supports higher temperature resistance. The GL code indicates a transparent borosilicate glass tube, suitable for oil, water and water/glycol-based solutions within the specified application limits.
The P code refers to transparent front protection, helping shield the glass tube from direct mechanical contact. The E section in the code indicates electrical level monitoring. The NO contact is normally open, meaning the electrical contact closes when the defined minimum level condition is reached. The 80-NO part indicates a maximum temperature sensor function at 80°C with normally open behaviour.
Why This Combination Matters
The Elesa+Ganter 113491 HCK.127-SST-M12-FKM-GL-P-E-NO-80-NO electrical level indicator is useful when a machine must provide local visual feedback and electrical status information at the same time. Operators can inspect the fluid level directly, while control systems can receive a signal when minimum level or temperature threshold conditions occur.
Typical Applications
This product type is relevant for hydraulic power units, cooling circuits, lubrication equipment, industrial presses, automation systems and machinery where fluid condition has a direct effect on performance. Its borosilicate glass tube and FKM sealing make it a more technically capable option than basic plastic-tube indicators in demanding environments.
Elesa+Ganter 113491 Electrical Level Indicator For related component details, visit Elesa+Ganter product information.
Elesa+Ganter 113491 Electrical Level Indicator FAQ
What type of product is Elesa+Ganter 113491?
It is an electrical column level indicator with visual reading, minimum level signalling and an 80°C normally open temperature sensor function.
What does NO mean in this model?
NO means normally open. In level sensing, the contact closes when the minimum level condition is reached.
Why does this model use borosilicate glass?
Borosilicate glass provides good visibility and is suitable for oil, water and water/glycol-based solutions when used within the specified conditions.
What is the benefit of the FKM seal?
FKM sealing supports higher temperature resistance and improved chemical compatibility compared with many standard rubber options.
Can it be used in control systems?
Yes. The electrical contact allows integration with monitoring, alarm or machine-control systems, depending on the installation design.
