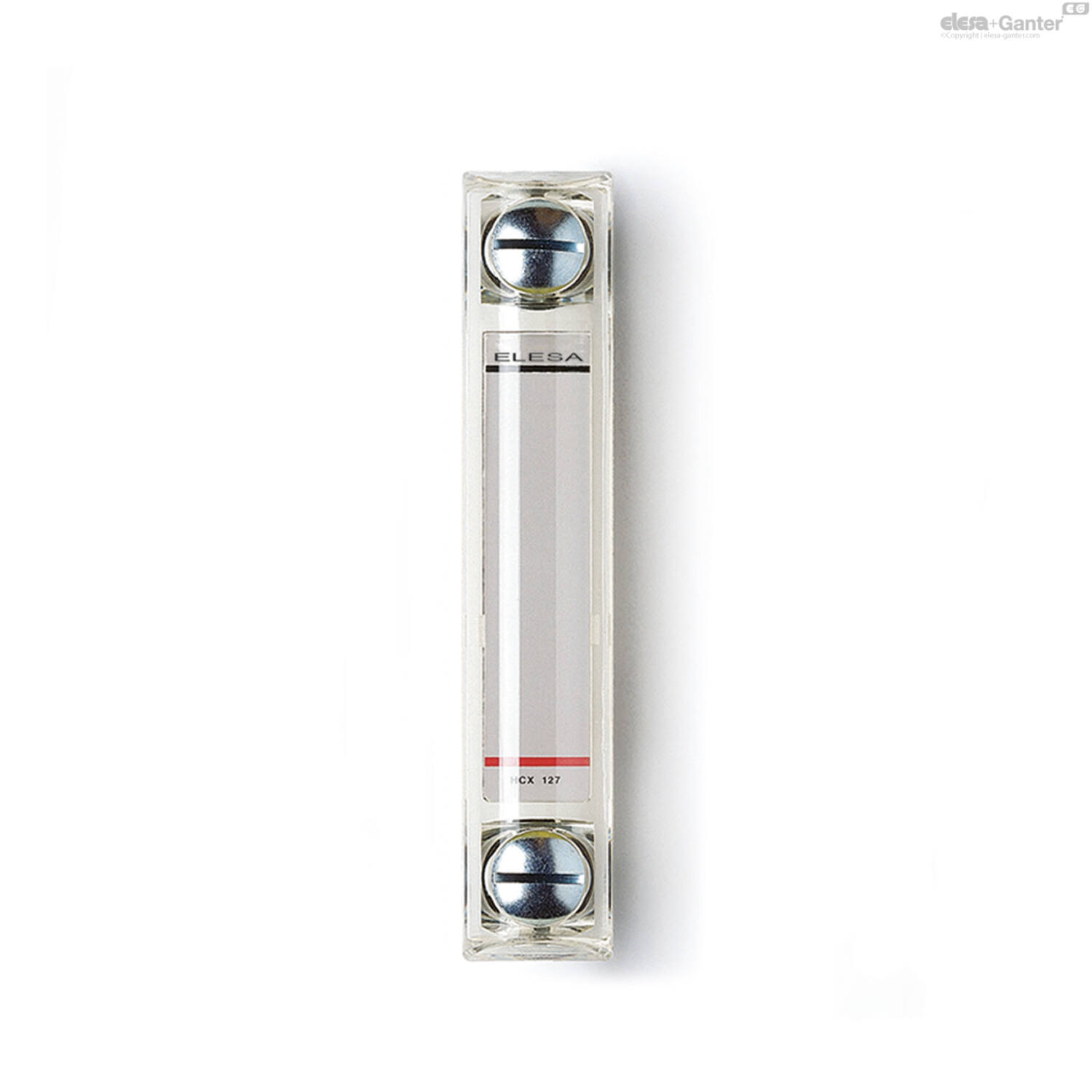

Elesa+Ganter 11349 HCX.127-M10 Column Level Indicator
The Elesa+Ganter 11349 column level indicator, known by the product code HCX.127-M10, is a practical visual monitoring component for hydraulic tanks, oil reservoirs and industrial lubrication systems. It is designed for applications where operators need a clear, fast and dependable way to check liquid level without opening the reservoir.
Technical Overview
This model belongs to the HCX column level indicator family. The 127 mm mounting hole pitch makes it suitable for medium-size reservoirs, while the M10 threaded connection provides a familiar installation format for machinery builders and maintenance teams. The listed panel cutout diameter is 12.5 mm, overall length is 161 mm, width is 31 mm and maximum tightening torque is 12 Nm.
The body is made from PA-T technopolymer, a material selected for impact resistance and compatibility with many oils and solvents. The transparent body improves visual reading, and the lens effect helps make the fluid line easier to identify during routine inspection. This is particularly useful in workshops, production lines and hydraulic units where quick condition checks reduce downtime.
Industrial Use Cases
The Elesa+Ganter 11349 HCX.127-M10 column level indicator is often used in hydraulic power units, machine tools, lubrication stations, industrial presses, gearboxes and oil circulation equipment. It is not an electronic sensor; it is a simple and reliable visual indicator. That makes it valuable where the operator wants immediate confirmation of the reservoir level without wiring, programming or additional control hardware.
Installation Considerations
Correct mounting is essential for sealing and readability. The reservoir surface should be clean, stable and properly prepared. The indicator should be tightened according to the recommended torque value, without overloading the body or sealing area. In applications involving unusual fluids, elevated temperature or non-standard pressure, compatibility should be verified before use.
For more technical product information, visit Elesa+Ganter industrial components.
Elesa+Ganter 11349 FAQ
What is Elesa+Ganter 11349 used for?
It is used to visually monitor liquid level in hydraulic tanks, oil reservoirs and lubrication systems.
What product type is HCX.127-M10?
HCX.127-M10 is a column level indicator with a 127 mm hole-centre distance and M10 threaded mounting.
Does this model include a thermometer?
No. The HCX.127-M10 version is a visual level indicator without an integrated thermometer.
Why is the 127 mm size important?
The 127 mm mounting pitch provides a larger visible level range than compact 76 mm models, making it suitable for medium reservoirs.
Is it suitable for automatic level control?
No. This is a visual component. For automatic signals, an electrical level indicator or a compatible sensor version should be considered.
